Indirect mode
Maximum pressure: 1 MPa (145 PSI)
28 / 46

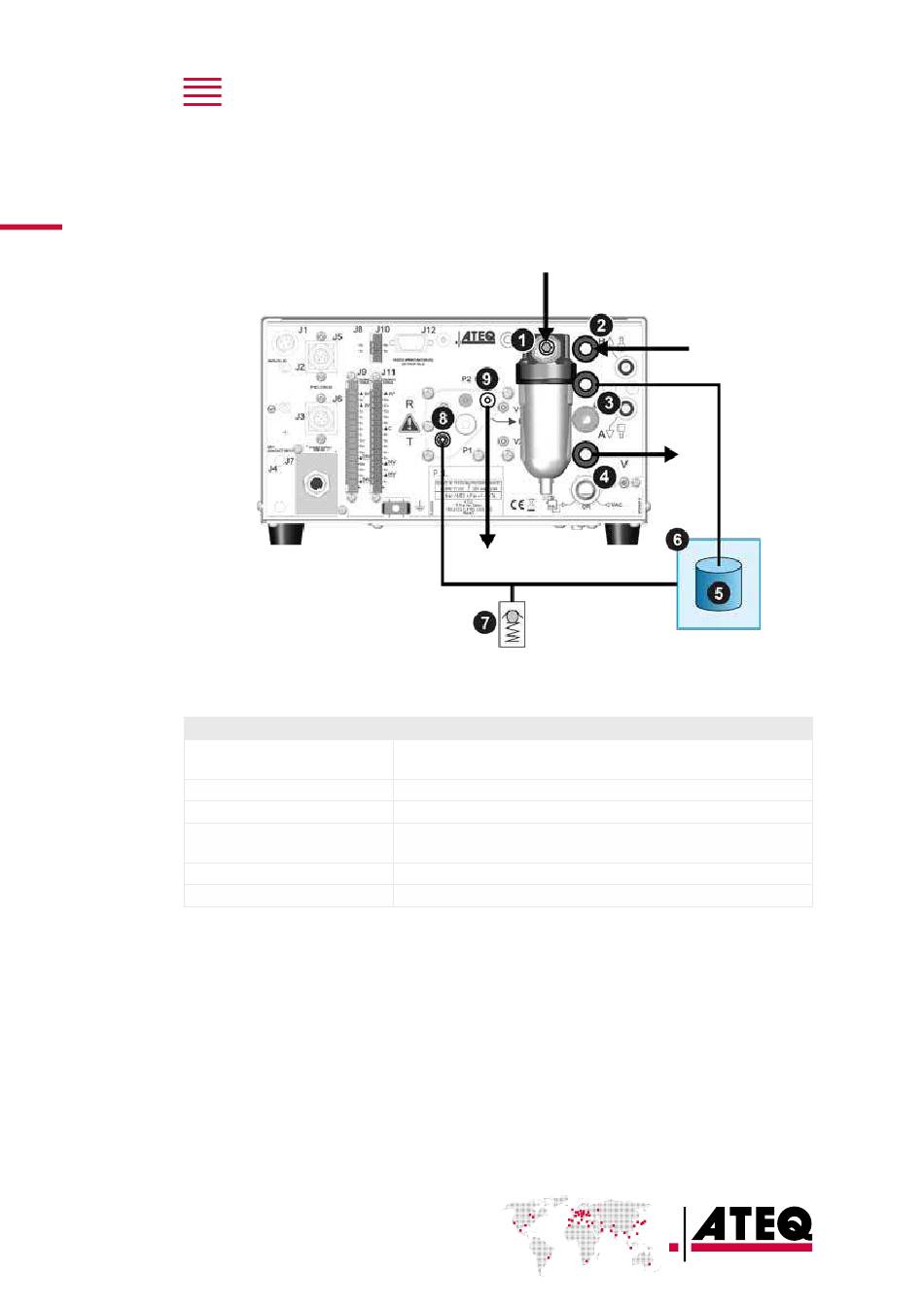

Connections
Connection
Regulator air supply to 1
Air supply to 2
3 to 5
8 to 6
4 to ATM
9 to ATM
QSG_F620.283.00_EN_01 / 2019-02-20
Option / description
Connection of the regulator air supply to the filter input (1.2 MPa
(174 PSI))
Connection of the air supply (0.6 MPa (87 PSI))
Connection of the regulator output to the part under test
Connection of the test output to the bell secured by a security
valve 7
Connection of the test part exhaust to the atmosphere
Connection of the bell exhaust to the atmosphere
