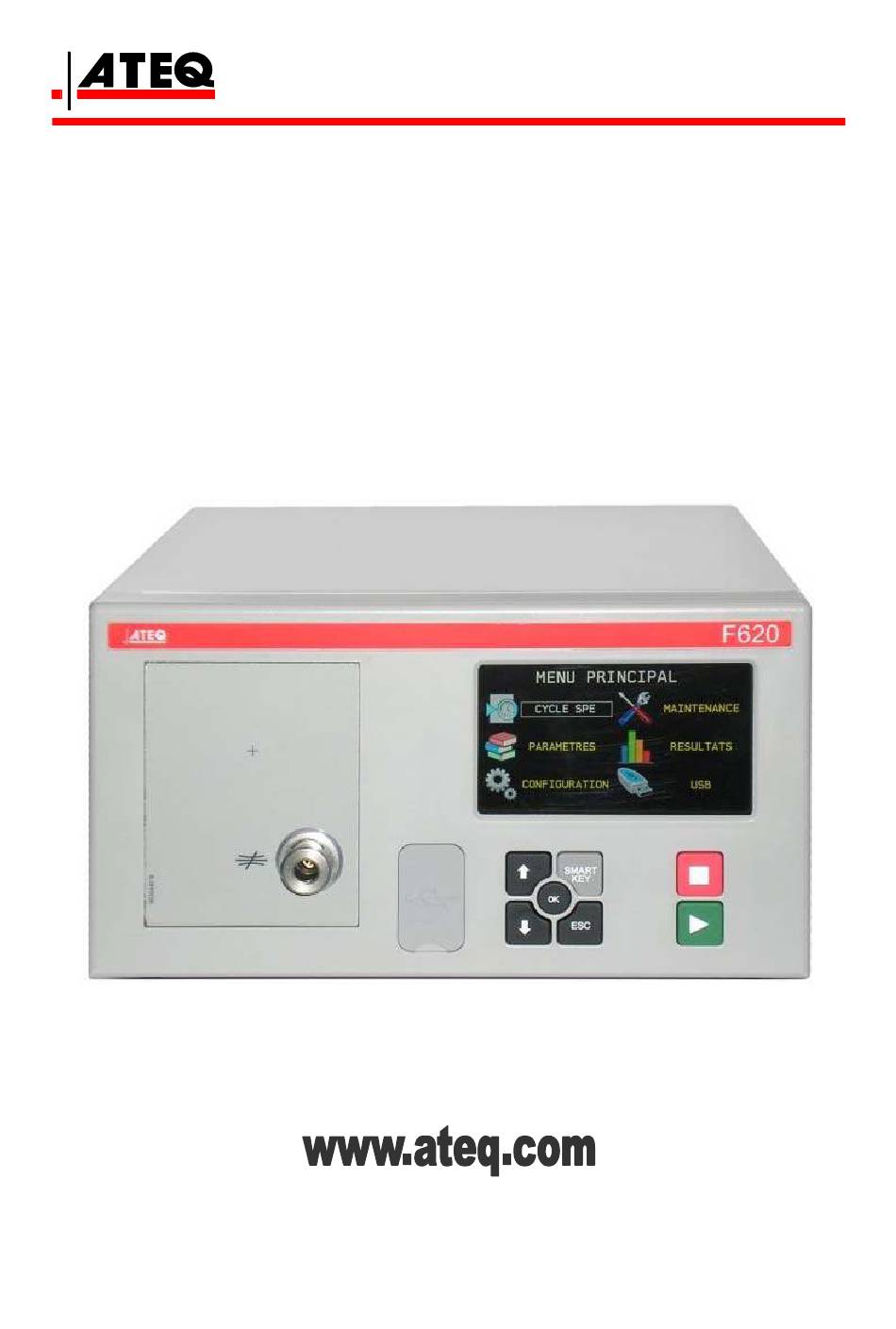

- Page 1 QUICK START ATEQ F620 Version 1.0 (Photo no contractual) Reference: MR-28300A-U...
- Page 2 REVISIONS OF THE ATEQ F620 USER MANUAL Due to continuing improvements, the information contained in this user manual, the features and design of this device are subject to be changed without prior notice. Date Edition/Revision Reference Chapters up dating Week/Year...
-
Page 3: Table Of Contents
Quick start manual TABLE OF CONTENTS TABLE OF CONTENTS ....................1 PREAMBULE........................2 1. DEFINITION OF THE ATEQ F620 ......................2 2. MEASUREMENT CHARACTERISTICS....................2 3. THE MAIN TYPES OF MEASUREMENT....................3 4. THE THREE TYPES OF TEST ......................3 5. MEASUREMENT CYCLE ........................3 INSTALLATION ...................... -
Page 4: Preambule
Quick start - F620 PREAMBULE 1. DEFINITION OF THE ATEQ F620 TEST DIFFERENTIAL The ATEQ F620 is a compact air/air REFERENCE PART SENSOR PART leak detector used to test the air- tightness of parts. The method used is based on the measurement of a... -
Page 5: The Main Types Of Measurement
5. MEASUREMENT CYCLE WAIT FILL STABILIZATION TEST DUMP The measurement cycle consists of 5 phases: Coupling Stabilization Test Dump Cycle Start Fill time time time time time MR-28300A-U Quick start manual ATEQ F620 Page 3/24... -
Page 6: Installation

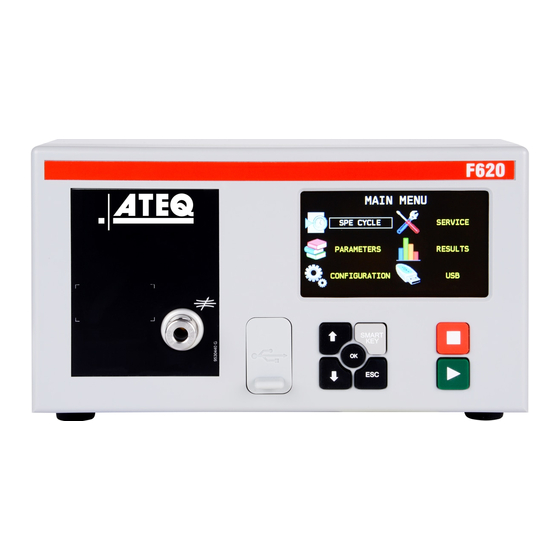

Quick start - F620 INSTALLATION 1. APPEARANCE OF THE ATEQ F5200 1.1. F RONT FACE 1.2. R EAR SIDE MR-28300A-U Quick start manual ATEQ F620 Page 4/24... -
Page 7: Electrics Connectors
2.2. P 100 / 240 V AC OWER SUPPLY WITH FF SWITCH OPTION Supply the ATEQ F620 with the built in power supply, with a voltage between 100 and 240 V AC. I: ON / O: OFF. 2.3. USB CONNECTOR... - Page 8 ONNECTOR EVICE ET INPUT OR ANALOGUE OUTPUTS OPTION 2.4.1. Devicenet Input (option) To connect to others ATEQ devices (M12 male connector). 2.4.2. Analogue outputs (option) Connection for analogue outputs. Pin 1: sensor 1 (plus). Pin 3: sensor 2 (plus). Pin 2: sensor 1 (minus).
- Page 9 Input 4 (NPN or PNP)* Pin 14 Ground Analogue Pin 15 Input 5 (NPN or PNP)* outputs Pin 16 Ground * Inputs NPN or PNP following the strap position on the board. MR-28300A-U Quick start manual ATEQ F620 Page 7/24...
- Page 10 Input 8 Program selection Input 8 Program selection (Activation by 33 to 64. 24 V DC) Common Input 9 Program selection Input 9 Program selection + 24 V = 0,3 A 65 to 128 maximum MR-28300A-U Quick start manual ATEQ F620 Page 8/24...
-
Page 11: Pneumatic Supply
The air must be clean and dry. The supply pressure must always be between 4 and 8 bar (400 kPa and 800 kPa). MR-28300A-U Quick start manual ATEQ F620 Page 9/24... -
Page 12: Pneumatic Connectors
NEUMATICS TEST OUTPUTS These outputs enable parts to be connected (test, reference). The pressurization output is used for the addition of ATEQ accessories (Y valve). Inputs / Outputs on the rear side of the F620: Reference Output R Pressurization Output Test Output T 4.3. -
Page 13: User Interfaces
Scroll down or decrease numerical values Opening a menu, entering a parameter, confirmation of a parameter. Return to the previous menu or function, escape without modifying a parameter Programmable key by the user's preferences (see below). MR-28300A-U Quick start manual ATEQ F620 Page 11/24... - Page 14 Program defined: to access directly to the selected program parameters. Run program: to access directly to the current program parameterst (run program). Last results : to access directly to the test results menu. MR-28300A-U Quick start manual ATEQ F620 Page 12/24...
-
Page 15: Starting Up And Adjustments
Access to the special cycle's service menu menu Access to the Access to the results menu, programs backup and display parameters Access to the USB Access to the connection configuration menu functions MR-28300A-U Quick start manual ATEQ F620 Page 13/24... -
Page 16: Programmes Management
STAB TIME : 0.0 s adjust the parameter to the hope value and ◄ TEST TIME : 2.0 s then validate with "OK". DUMP TIME: 0.0 s Press. UNIT Max FILL 0.000 MR-28300A-U Quick start manual ATEQ F620 Page 14/24... -
Page 17: Parameters
Note: if no extended function has been activated from the "More Functions" menus, the FUNCTION menu is empty. Edition, duplication, deletion or copy of a test program, program number to start: see the manuals CDROM for further information. MR-28300A-U Quick start manual ATEQ F620 Page 15/24... -
Page 18: Start And Stop Measurement Cycle
Press the RESET key to stop the current measurement cycle. The message "OK" show the device is pending a new test cycle. At the end of the measurement cycle, the test result is displayed. MR-28300A-U Quick start manual ATEQ F620 Page 16/24... -
Page 19: Functions
These functions, to appear in the program, must be activated first in the "More functions" menu. Then it must validate and configure it in function menu of the program. Each program can be individually personalized. MR-28300A-U Quick start manual ATEQ F620 Page 17/24... -
Page 20: Others Menus
ATR Learning: cycle to enter ATR parameters; this is to run at each switching on of the device or after a long time without measurement. Volume calculation: cycle to calculate the volume of the test circuit. MR-28300A-U Quick start manual ATEQ F620 Page 18/24... -
Page 21: Menu Configuration
Miscellaneous: Smart key, to configure the assigned to the "SMART KEY" key. Auto setup, to enables the automatic creation of a simple test program. MR-28300A-U Quick start manual ATEQ F620 Page 19/24... -
Page 22: Service Menu Maintenance
5. USB MENU This is to save on an USB memory key the parameters or the device configuration to recover for later use, device cloning, program cloning or backup for device reconfiguration. MR-28300A-U Quick start manual ATEQ F620 Page 20/24... -
Page 23: Accessories And Characteristics
2 or 4 (+) and 16 (-). 1.2. 100 > 230 V AC POWER SUPPLY The power supply cable of the F620 allows its connection to the mains supply network (from 100 to 240V AC). 2. ACCESSORIES IN OPTION Master leaks: the master leaks are used to check the device calibration. -
Page 24: Technical Characteristic Of The F620
100 à 240 V AC / 2 A Pneumatics connections: 3/5, 4/6 or 6/8 Weight (kg): about 8 Format : ½ 19 inches Running temperature: +10°C to +45°C Storage temperature: 0°C to +60 °C MR-28300A-U Quick start manual ATEQ F620 Page 22/24... -
Page 25: Errors And Faults
If all the other checks do not resolve the problem, the instrument’s circuit may be checked. ATEQ does not accept any liability in regard to calibrations and settings to its instruments which are not carried out by its own personnel. -
Page 26: Index
Measurement cycle ......3 Test Reject .........15 Measurements characteristics ....2 Test time..........15 Minimum fill.........15 Touches de cycle........11 More functions menu ......17 Type of test ...........3 Navigation...........10 USB ............5 Navigation keys ........11 Operation fault ........23 MR-28300A-U Quick start manual ATEQ F620 Page 24/24... - Page 28 This document is the exclusive property of ATEQ. It may not be communicated, reproduced or used without prior consent.
