Pin number
Inputs / outputs
14
Output
15
Output
16
0 V
The device can be energized through the J11 connector of the relay board (except if internal
supply option):
0 V to the pin 16
24 V DC to the pin 2 or 4.

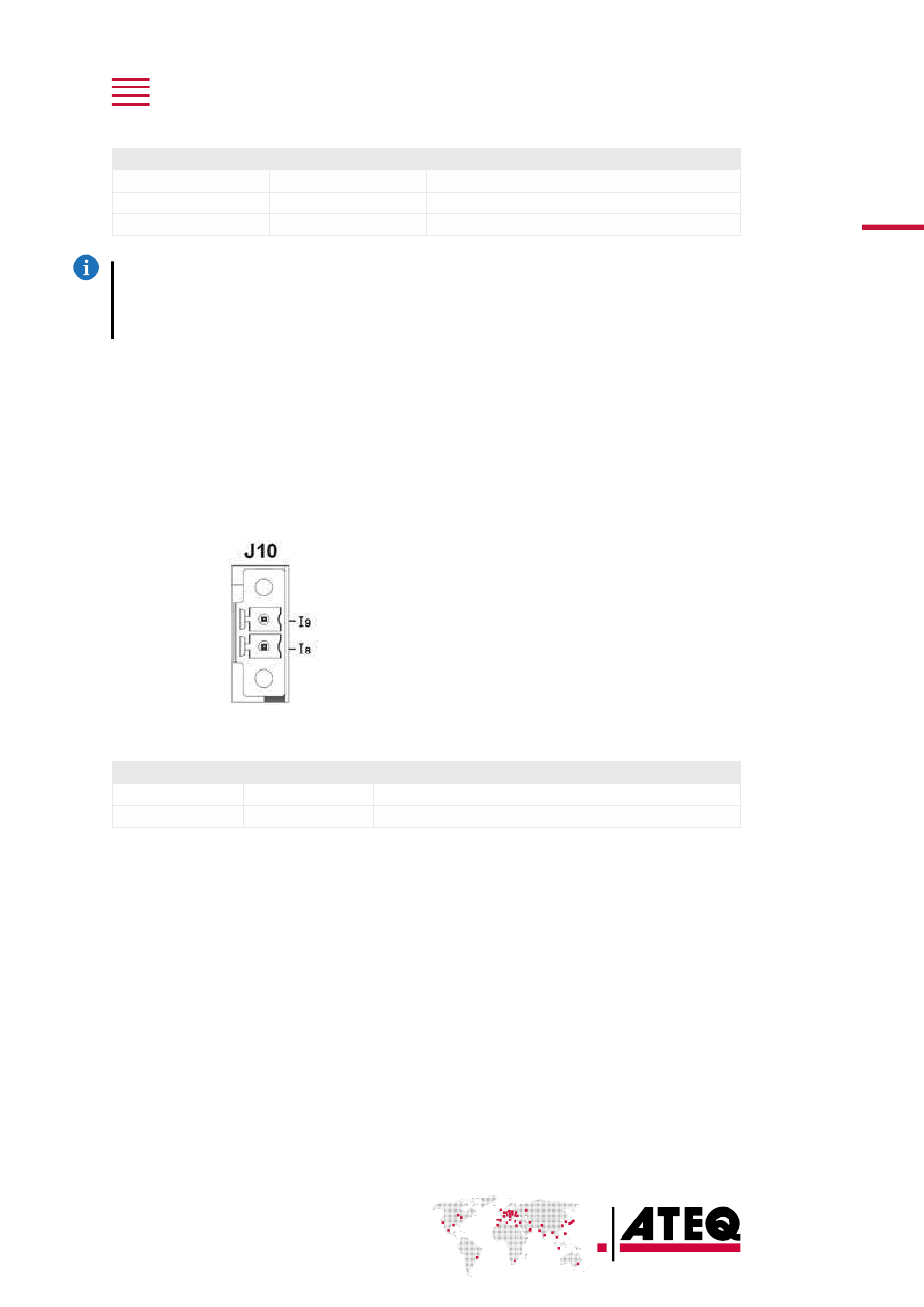

Program selection extension connector (J10) (option)
The J10 connector is an extension of the J11 connector that enables the selection of 128
programs.
Characteristics
— Inputs
Activation: + 24 V DC.
Pin number
Inputs/outputs
I8
Input 8
I9
Input 9
QSG_F620.283.00_EN_01 / 2019-02-20
Description
Warning
End of cycle
Ground
Description
Program selection from 33 to 64 (programmable input)
Program selection from 65 to 128 (programmable input)
19 / 46
