Profinet connectors (J5 + J6) (option)

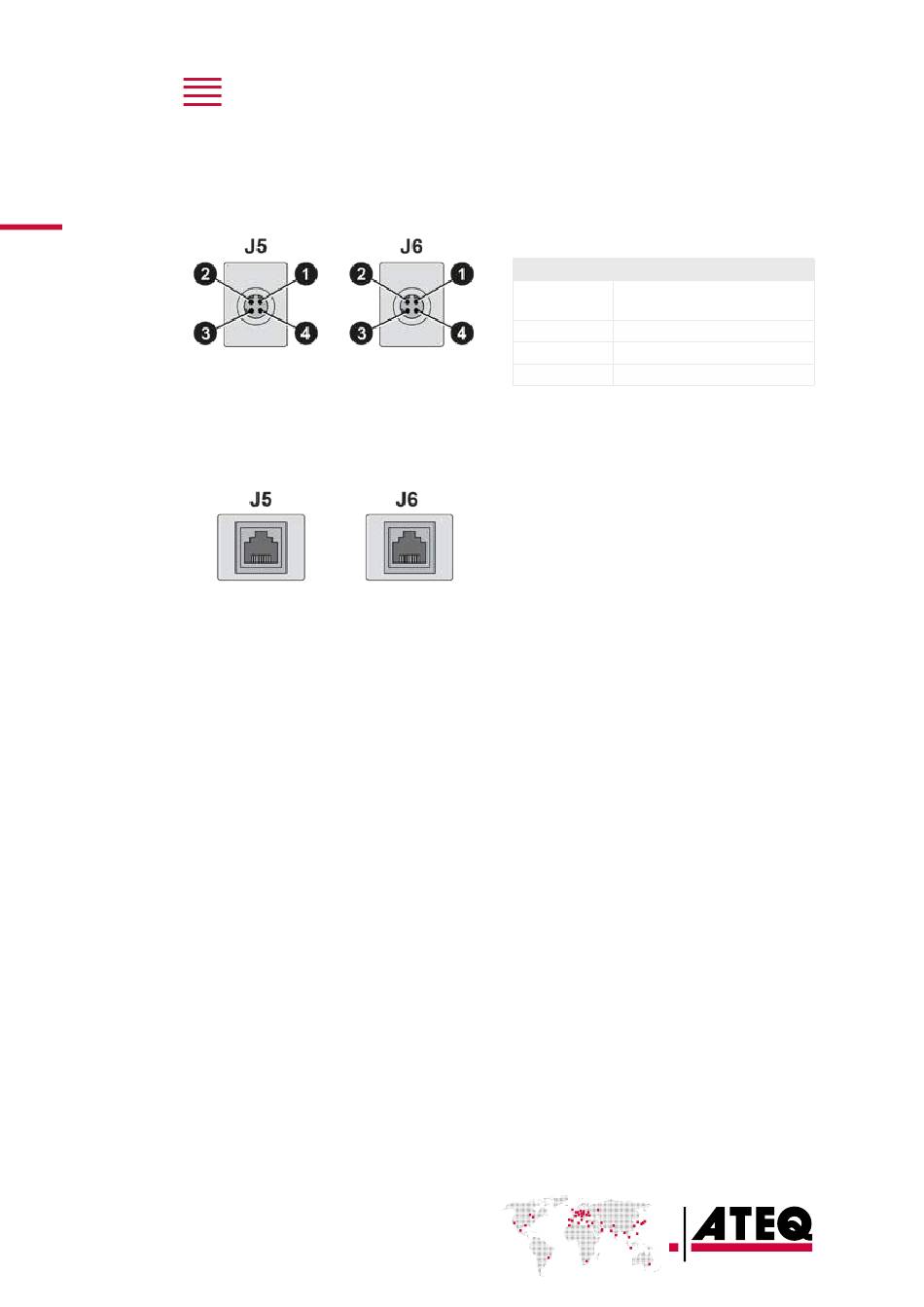

M12 D coded type connector - 4 pins female connector (J5 + J6)
16 / 46
Ethernet connector (J5 + J6) (option)
Standard connection Ethernet TCP / IP protocol.
One of these network protocols is available:
— Ethernet IP
— Profinet
— Ethercat (J5 = Input J6 = Output).
QSG_F620.283.00_EN_01 / 2019-02-20
Pin number Signal
1 Ethernet Tx + (Transmit
Data +)
2 Ethernet Rx + (Receive Data +)
3 Ethernet Tx - (Transmit Data -)
4 Ethernet Rx - (Receive Data -)
