Direct mode - Medium range
Maximum pressure: 1 MPa (145 PSI)
26 / 46

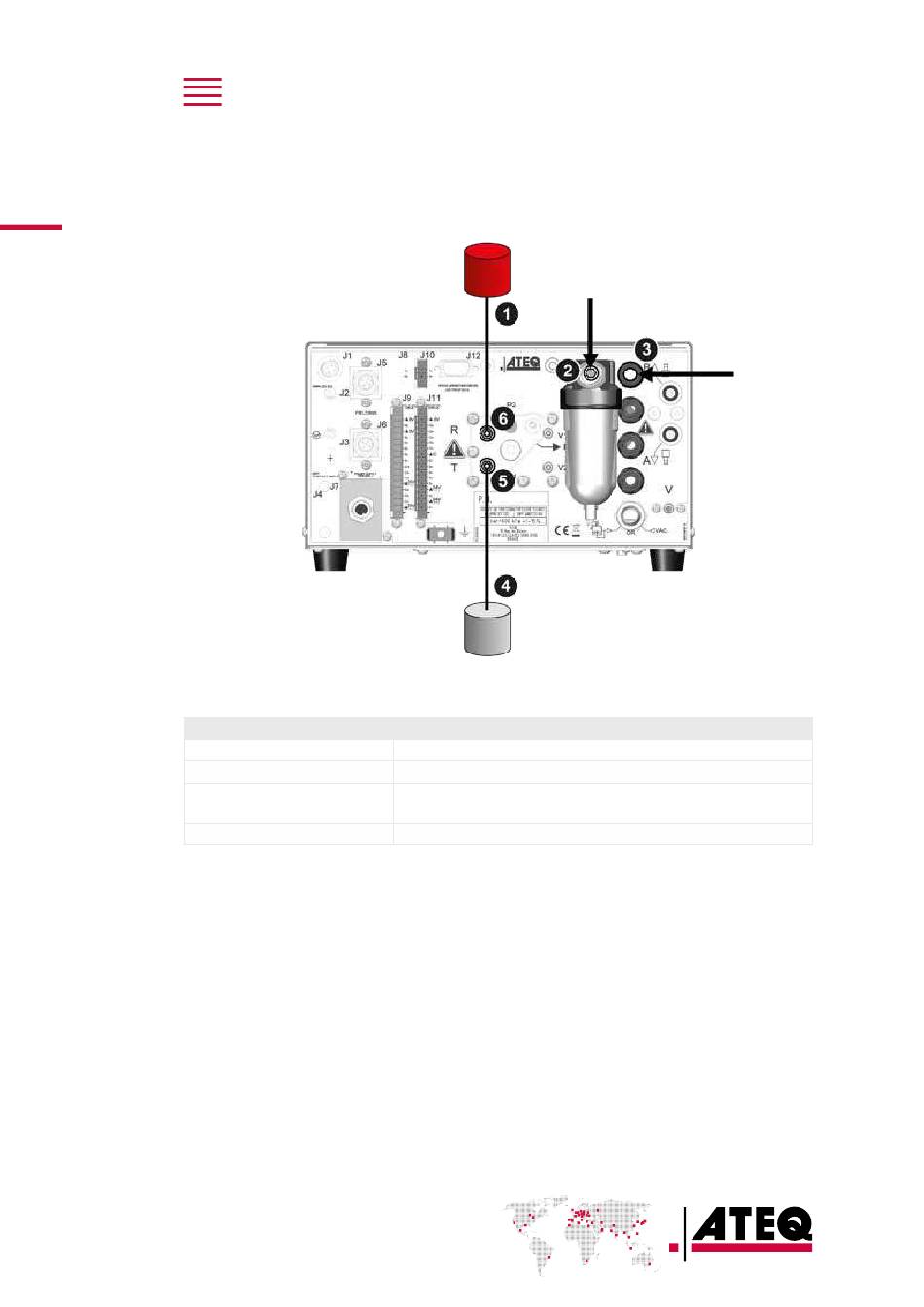

Connections
Connection
6 to 1
5 to 4
Regulator air supply to 2
Air supply to 3
QSG_F620.283.00_EN_01 / 2019-02-20
Option / description
Connection of the reference output to the reference part
Connection of the test output to the part under test
Connection of the regulator air supply to the filter input (1.2 MPa
(174 PSI))
Connection of the air supply (0.6 MPa (87 PSI))
