  • Page 1 ATEQ F600HP Quick Start Guide...

  • Page 2: Table Of Contents

    Table of contents Safety advisory / Warranty Good practices and safety instructions 2/34 Air quality requirements Preamble ATEQ F600HP, an universal leak tester Leak test Principe of a cycle Your ATEQ F600HP Front panel Connectors on the back panel (with all options)
  • Page 3 ATEQ - Measurement Solution, Global Leader. 3/34 ATEQ 15, rue des Dames, Z.I. info@ateq.com T.: +33 1 30 80 1020 78340 LES CLAYES-SOUS-BOIS ateq.com F.: +33 1 30 54 1100 FRANCE ATEQ K.K. 3 – 41 ATEQ Building, Ikehata info@ateq.co.jp T.: +81 566-84-4670...

  • Page 4: Safety Advisory / Warranty

    — Do not open a connected device. — Avoid splashing water on the device. ATEQ is at your disposal for any information concerning the use of the device under maximum safety conditions. We draw your attention to the fact that ATEQ cannot be held responsible for any accident related to a misuse of the measuring instrument, the workstation or non-compliance of the installation with safety rules.

  • Page 5: Air Quality Requirements

    For this purpose, we strongly recommend that a suitable airtight filter is installed between the part under test and the instrument. ATEQ recommends the following characteristics for the air supplied into the device. Air characteristics ISO standard 8573 class 0.1 μm and 0.1 mg/m...

  • Page 6: Preamble

    Preamble ATEQ F600HP, AN UNIVERSAL LEAK TESTER 6/34 ATEQ F600HP is a leak detector that tests the air tightness of parts. ATEQ F600HP can memorize 128 different test programs. QSG_F600HP_425.00_EN_01_2021-01-25...

  • Page 7: Leak Test

    LEAK TEST Leak test and Desensitized Mode The test pressure is applied to the input of the test part 3. The measurement is performed by the pressure sensor 2. 7/34 1 Device 2 Pressure sensor 3 Part under test Desensitized Mode: there is no leak fullscale. The limit is the test pressure. PRINCIPLE OF A CYCLE The measurement cycle is made of 4 main phases: fill, stabilization, test, dumping.

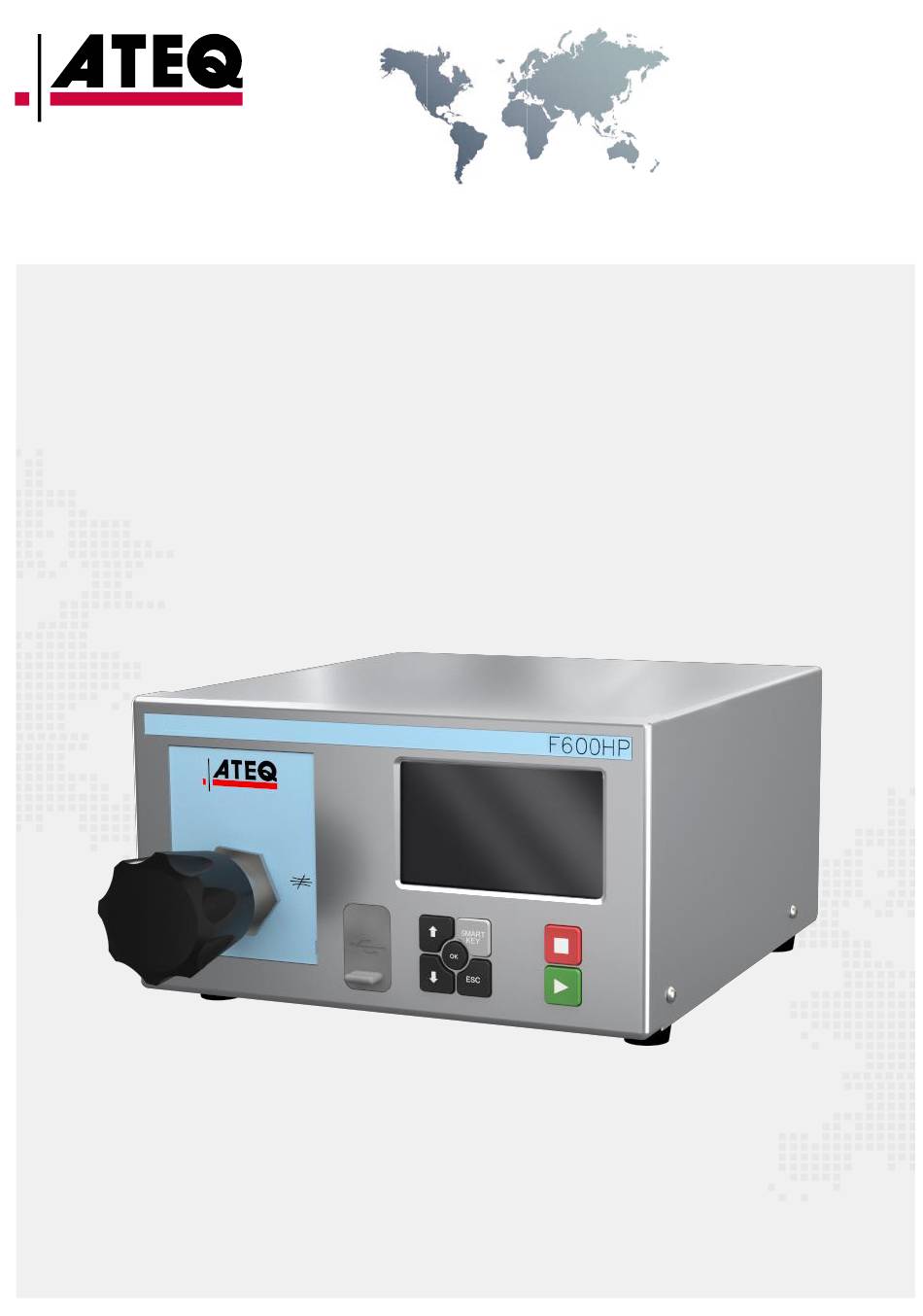

  • Page 8: Your Ateq F600Hp

    Your ATEQ F600HP FRONT PANEL 8/34 The user interface is located on the front panel. Display Cycle keys Navigation keys USB connectors Mechanical Pressure Regulator For more information, refer to User interface. QSG_F600HP_425.00_EN_01_2021-01-25...

  • Page 9: Connectors On The Back Panel (With All Options)

    CONNECTORS ON THE BACK PANEL (WITH ALL OPTIONS) 9/34 QSG_F600HP_425.00_EN_01_2021-01-25...
  • Page 10 Name Description Analog outputs - pressure and leak (option) Fieldbus connector (option) Program selection extension connector (option) Printer RS232 connector / Modbus (option) or Profibus (option) Test output (High pressure connector) 10/34 High pressure air input connector to the metallic filter (option) Pressure range Part number / Serial number Air supply energy information...

  • Page 11: Power Supply Connectors

    POWER SUPPLY CONNECTORS The device can be connected to an external power supply (24 V DC - 2 A) or provided with an internal power supply (100 / 240 V AC) (option). External supply 11/34 24 V DC connector (J7) The device can be connected to a 24 V DC - 2 A power supply through a M12 4 pins type connector.

  • Page 12: Digital Links

    Internal supply only 100 / 240 V AC connector (J7) (option) The device can be connected to a 100 / 240 V AC power supply (option). This connector has an ON/OFF button. 12/34 It is mandatory to connect the device to the ground with a good link to the ground, to protect against electric hazard or electrocution.
  • Page 13 Printer RS232 connector / Modbus (option) or Profibus (option) (J12) RS232 – SubD 9 pins male connector (printer) RS232 for printer, bar code reader, PC connection. 13/34 Pin number Signal Not used RXD data input TXD data input Not used Ground Not used RTS request to send...
  • Page 14 Devicenet connectors (J5) (J6) (option) M12 type connector - 5 pins male connector (J5) (Devicenet input) For connection to others ATEQ devices. 14/34 Pin number Signal Drain CAN_H CAN_L M12 type connector - 5 pins female connector (J6) (Devicenet output) For connection to other ATEQ devices.

  • Page 15: Analog Outputs (Option)

    Ethernet connector (J5 + J6) (option) Standard connection Ethernet TCP / IP protocol. 15/34 One of these network protocols is available: — Ethernet IP — Profinet — Ethercat ANALOG OUTPUTS (OPTION) M12 type connector – 8 pins Female connector (J1) Pin number Description Ground pressure...

  • Page 16: Digital Inputs/Outputs

    DIGITAL INPUTS/OUTPUTS The 24V DC power supply for the digital inputs can be provided by 2 means: — The internal power supply of the device (0.3 A max) — An external power supply provided by the customer. Inputs default mode is PNP. NPN mode is available on request. 16/34 Relay board connector (J11) (option) Characteristics...
  • Page 17 Program selection extension connector (J10) (option) The J10 connector is an extension of the J11 connector that enables the selection of 128 programs. Characteristics 17/34 — Inputs •  Activation: + 24 V DC Pin number Inputs/outputs Description 1 (I8) Input 8 Program selection from 33 to 64 (programmable input) 2 (I9) Input 9...
  • Page 18 Valve codes and auxiliary outputs board connector (J9) (option) Characteristics — Outputs: 18/34 •  24 V DC - 100 mA max per output — Inputs: •  Activation: + 24 V DC. Pin number Inputs / outputs Description + 24 V DC Common (outputs 1, 2,3) Output 1 Open collector...

  • Page 19: Pneumatic Connectors

    Pneumatic supply 19/34 The pneumatic supply has to meet specific requirements recommended by ATEQ. Refer to Good practices and safety instructions section. A specific filter may be necessary. The air is supplied via the filter located on the back panel of the device.
  • Page 20 Test outputs The output enables parts to be connected (test). — 6 mm special 20 MPa metallic fitting 20/34 Exhaust output with a silencer Air supply input 600kPa Air supply input for the internal pilot pressure 600 kPa (87 PSI) ± 15% Instant fitting 6 mm diameter Test air supply input Test high pressure input (Filter is...

  • Page 21: Pneumatics Configuration

    PNEUMATICS CONFIGURATION Direct mode Maximum pressure: 20 MPa range 21/34 Connection Option / description Regulator air Connection of the test high pressure input (Filter is optional if clean air is supply to 1 supplied) or air supply input for the internal high pressure regulator (option) Air supply to 2 Connection of the Air supply input for the internal pilot pressure 600 kPa (87 PSI) ±...

  • Page 22: User Interface

    User interface OVERVIEW The user interface comprises a display and user keys located on the front panel. 22/34 1 Display 2 Cycle keys 3 Navigation keys KEYS Cycle keys The cycle keys are used to start and to stop a measurement cycle. Name Function On the Program screen, starts a measurement cycle and opens the...

  • Page 23: Display

    Navigation keys The navigation keys are used to select menus/options and change parameter values. Name Function Up key Scrolls up or increases numerical values. 23/34 Down key Scrolls down or decreases numerical values. Returns to the MAIN MENU screen or opens menus and options, validates parameters.
  • Page 24 The Measurement cycle screen The Measurement cycle screen displays the different values of the current test (or last one). Test pressure measurement Test result or step phase 24/34 Test reject value Vertical line test result Remaining time of the current phase or ready status 6 Measurement value 7 Measurement unit...

  • Page 25: Starting Up

    Starting up POWER UP 1. Make sure that all the necessary connections are in 25/34 place. Electrical: such as power supply, inputs/outputs Pneumatic: including line pressure supply. 2. Power up your device When power-up is completed, the Program screen is displayed, with last program used on screen. PREPARING A PROGRAM Use this procedure to configure a new test program.

  • Page 26: Modifying A Parameter

    CONFIGURING THE ASSOCIATED MEASUREMENTS 3. Select the program to configure and press The parameters of the selected measurement type are displayed. 4. Define the measurement cycle parameters. 26/34 See: Modifying a parameter. MODIFYING A PARAMETER Use this procedure to complete the test program setup. The protection of the parameters is configurable.

  • Page 27: Selecting A Program

    SELECTING A PROGRAM If necessary, you can select another program or another sequence if sequence mode is activated in the configuration. 1. Press up/down   27/34 STARTING AND STOPPING CURRENT CYCLE Use the front panel keys to start/stop a measurement cycle. With the desired program displayed on the Program screen: STARTING A MEASUREMENT CYCLE 1. Press Start...

  • Page 28: User Adjustments

    User adjustments OPTIONS OF THE MENUS 28/34 Different menus are accessible on the MAIN MENU screen. For more information, refer to the Reference Manual. SPECIAL CYCLE menu Use this menu to carry out specific procedures necessary to ensure the proper operation of measurement cycles (for example, adjustment of pressure regulator).
  • Page 29 PARAMETERS menu Use this menu to configure the measurement cycle associated to each test program. 29/34 Default parameters of the type tests Label Parameter Description COUPL. A Coupling time Waiting time before filling the test part FILL TIME Fill time Time to pressurise the part under test STAB TIME Stabilization time...
  • Page 30 Additional functions Label Function Description 24V OUTPUTS Auxiliaries output 24 V Available outputs for external automatism ABSOLUTE Absolute Display the absolute value of the results 30/34 ATF time Absorb the important leak variations at the defined time available with flow units only ATR0 / ATR1 / ATR 0 - 3 Specific filters on leak measurement...
  • Page 31 CONFIGURATION menu Use this menu to configure your ATEQ device. 31/34 Label Function Description LANGUAGE Language Selection of the language displayed on the screen PNEUMATIC Pneumatics Configuration of the pneumatics functions of the device > ELEC. REG. Activation of the electronic regulator >...
  • Page 32 Results statistics Statistics for each program USB : the results will be saved at the same time on the internal memory and on the USB stick (Format Fat32) > ATEQ > RESULTS >Serial Number > .csv file by date (YYYYMMDD.csv). QSG_F600HP_425.00_EN_01_2021-01-25...
  • Page 33 USB menu This section describes save and restore parameters on an external USB device. 33/34 Label Description Save parameters Save parameters on an external USB memory device for restoring later Restore parameters Restore parameters from an external USB memory device QSG_F600HP_425.00_EN_01_2021-01-25...

  • Page 34: Specifications

    Specifications CHARACTERISTICS Technical characteristics of the device. 34/34 Main characteristics: Characteristics Values (5.91 x 9.84 x 10.63") 150 x 250 x 270 mm Case dimensions: Height x Width x Depth (5.91 x 9.84 x 14.17") Overall dimensions 150 x 250 x 360 mm Mass About 8 kg (17.6 lbs) Electrical power supply...
