POWER SUPPLY CONNECTORS

The device can be connected to an external power supply (24 V DC - 2 A) or provided with
an internal power supply (100 / 240 V AC) (option).
12 / 46
External supply

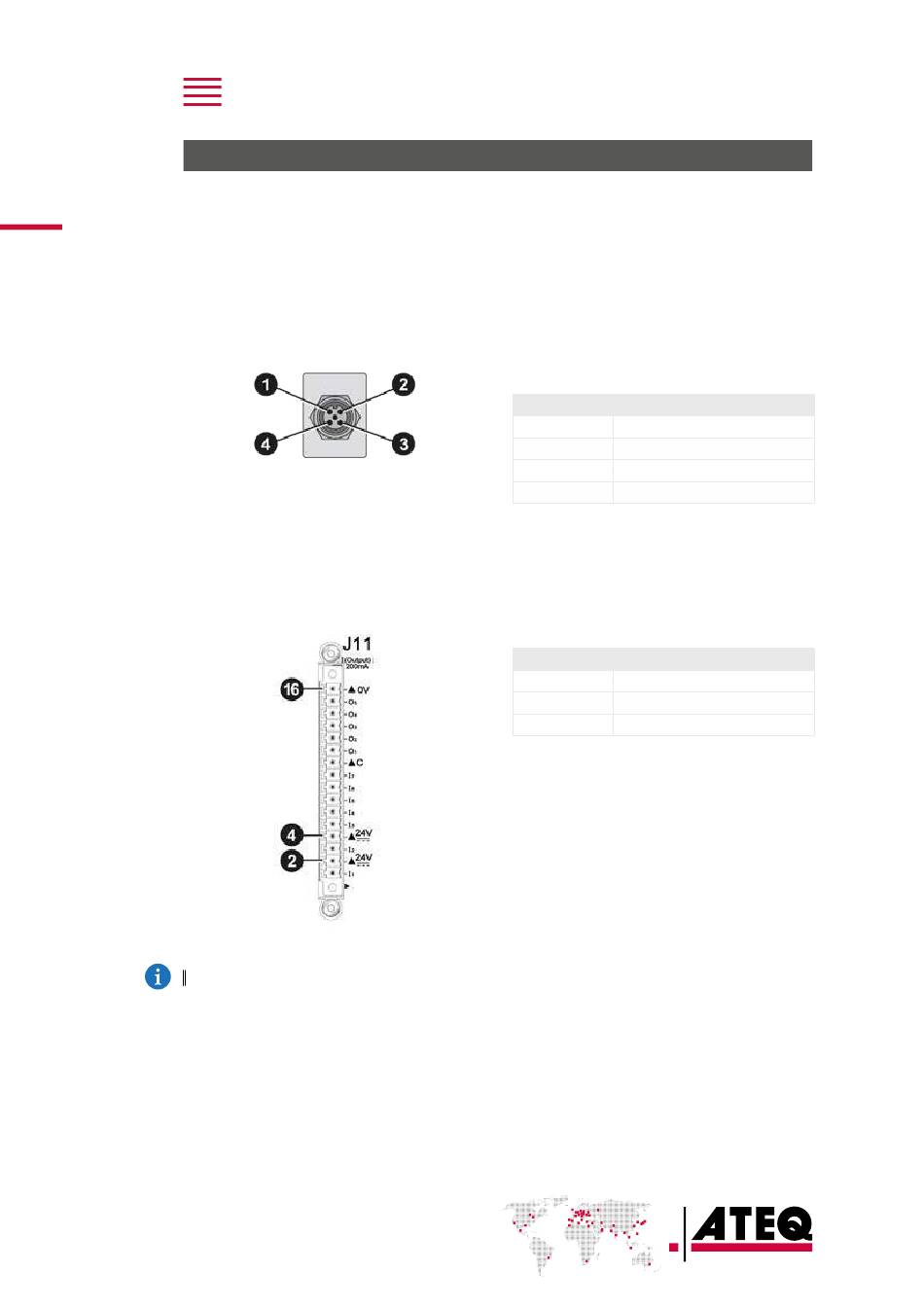

24 V DC connector (J7)
The device can be connected to a 24 V DC - 2 A power supply through a M12 4 pins type
connector.
24 V DC on the relay board connector (J11) (option)
The device can also be connected to a 24 V DC - 2 A power supply through J11 connector
on the relay board.
Apply 24 V DC to the pin 2 or 4.
QSG_F620.283.00_EN_01 / 2019-02-20
Pin number Signal
1 Not connected
2 + 24 V DC
3 Not connected
4 Ground: 0 V
Pin number Signal
2 + 24 V DC
4 + 24 V DC
16 Ground: 0 V
