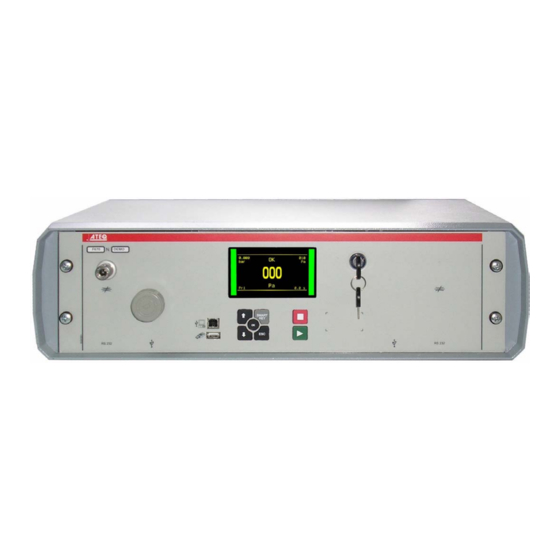

ATEQ F670
Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F670 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ATEQ F670

Summary of Contents for ATEQ F670

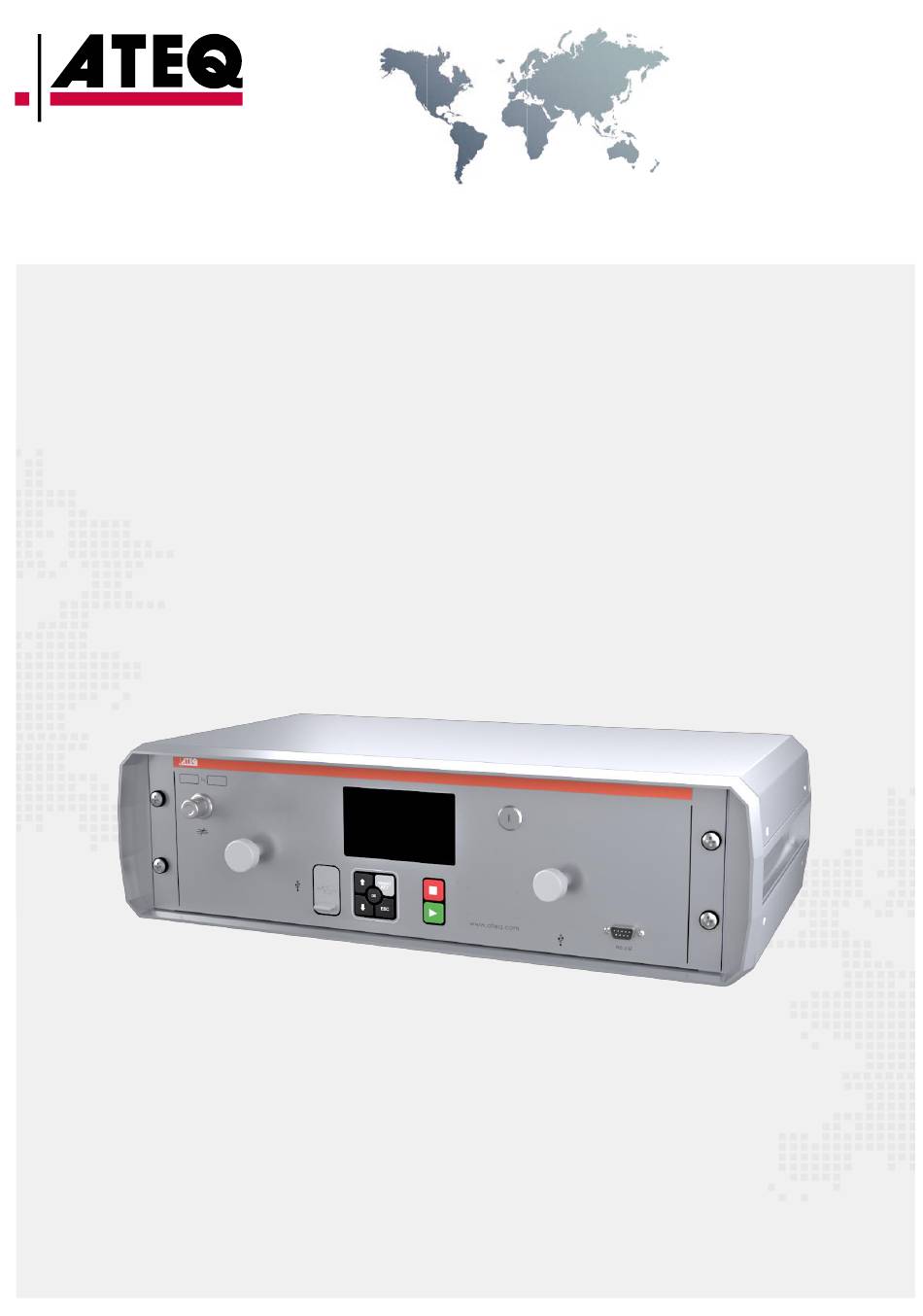

  • Page 1 ATEQ F670 Quick Start Guide...

  • Page 2: Table Of Contents

    Table of contents Safety advisory / Warranty Good practices and safety instructions 2/42 Air quality requirements Preamble ATEQ F670, an universal leak tester Leak test Principe of a cycle Your ATEQ F670 Front panel Connectors on the back panel (with all options)
  • Page 3 ATEQ - Measurement Solution, Global Leader. 3/42 ATEQ 15, rue des Dames, Z.I. info@ateq.com T.: +33 1 30 80 1020 78340 LES CLAYES-SOUS-BOIS ateq.com F.: +33 1 30 54 1100 FRANCE ATEQ K.K. 3 – 41 ATEQ Building, Ikehata info@ateq.co.jp T.: +81 566-84-4670...

  • Page 4: Safety Advisory / Warranty

    ATEQ is at your disposal for any information concerning the use of the device under maximum safety conditions. We draw your attention to the fact that ATEQ cannot be held responsible for any accident related to a misuse of the measuring instrument, the workstation or non-compliance of the installation with safety rules.

  • Page 5: Air Quality Requirements

    For this purpose, we strongly recommend that a suitable airtight filter is installed between the part under test and the instrument. ATEQ recommends the following characteristics for the air supplied into the device. Air characteristics ISO standard 8573 class 0.1 μm and 0.1 mg/m...

  • Page 6: Preamble

    Preamble ATEQ F670, AN UNIVERSAL LEAK TESTER 6/42 ATEQ F670 is a leak detector that tests the airtightness of parts. ATEQ F670 can memorise 128 different test programs. QSG_F670_363.00_EN_01_2021-02-09...

  • Page 7: Leak Test

    LEAK TEST Direct measurement principle The part under test 3 and the reference part 5 are filled to an identical pressure. A differential sensor 4 measures the pressure variation between the part under test 3 and the reference part 5. In some applications, the reference part can be replaced by 7/42 a cap.

  • Page 8: Principe Of A Cycle

    PRINCIPLE OF A CYCLE The measurement cycle is made of 4 main phases: fill, stabilization, test, dumping. A Pressure auto zero additional phase 0 can be placed at the start or at the end of a cycle, depending on the requirement of the operator. 8/42 0 Waiting phase 1 Fill phase...

  • Page 9: Your Ateq F670

    Your ATEQ F670 FRONT PANEL The user interface is located on the front panel. 9/42 Device name Serial number Display Parameters lock key (option) RS232 connector (option) Mechanical regulator (option) Cycle keys Navigation keys USB connectors 10 Mechanical regulator (option) 11 Quick connector (option) For more information, refer to User interface.

  • Page 10: Connectors On The Back Panel (With All Options)

    CONNECTORS ON THE BACK PANEL (WITH ALL OPTIONS) 10/42 QSG_F670_363.00_EN_01_2021-02-09...
  • Page 11 Optional fitting according to special configuration Vacuum supply input (option) Reference output External back pressure connector (option) Test part exhaust (also for test pressure sensor auto zero) ATEQ Air supply energy information Part number / Serial number External back pressure connector (option) Test output...

  • Page 12: Power Supply Connectors

    POWER SUPPLY CONNECTORS Internal supply only 100 / 240 V AC connector (J7) (option) 12/42 The device can be connected to a 100 / 240 V AC power supply. This connector has an ON/OFF button. It is mandatory to connect the device to the ground with a good link to the ground, to protect against electric hazard or electrocution.
  • Page 13 DGND (logic ground) VP (supply) Not used Data line B Not used Devicenet connectors (J5) (J6) (option) M12 type connector - 5 pins male connector (J5) (Devicenet input) For connection to others ATEQ devices. Pin number Signal Drain CAN_H CAN_L QSG_F670_363.00_EN_01_2021-02-09...
  • Page 14 M12 type connector - 5 pins female connector (J6) (Devicenet output) For connection to other ATEQ devices. Pin number Signal Drain 14/42 CAN_H CAN_L Profinet connectors (J5 + J6) (option) M12 D coded type connector - 4 pins female connector (J5 + J6)

  • Page 15: Analog Outputs

    ANALOG OUTPUTS M12 type connector – 8 pins female connector (J1) (option) 15/42 Pin number Description Ground pressure 0-10V DC pressure Ground Pressure (Diff) 0-10V DC Pressure (Diff) Signal contact event (option) Ground contact event (option) Not connected Not connected QSG_F670_363.00_EN_01_2021-02-09...

  • Page 16: Digital Inputs/Outputs

    DIGITAL INPUTS/OUTPUTS The 24V DC power supply for the digital inputs can be provided by 2 means: — The internal power supply of the device (0.3 A max) — An external power supply provided by the customer Inputs default mode is PNP. NPN mode is available on request. 16/42 Relay board connector (J9) (option) Characteristics...
  • Page 17 Program selection extension connector (J8) (option) The J8 connector is an extension of the J9 connector that enables the selection of 128 programs. Characteristics 17/42 — Inputs •  Activation: + 24 V DC. Pin number Inputs/outputs Description Input 8 Program selection from 33 to 64 (programmable input) Input 9 Program selection from 65 to 128 (programmable input) Program selection (J8 and J9)
  • Page 18 Valve codes and auxiliary outputs board connector (J15) (option) Characteristics — Outputs: 18/42 •  24 V DC - 100 mA max per output. — Inputs: •  Activation: + 24 V DC. Pin number Inputs / outputs Description + 24 V DC Common (outputs 1, 2,3) Output 1 Open collector...

  • Page 19: Pneumatic Connectors

    Pneumatic supply 19/42 The pneumatic supply has to meet specific requirements recommended by ATEQ. Refer to Good practices and safety instructions section. A specific filter may be necessary. The air is supplied via the filter located on the back panel of the device.
  • Page 20 Quick connector (on front face) (option) this function check calibration. 20/42 As this connector is part of the measurement circuit, all its connections must be air tight. Test and reference outputs Test connector Reference connector Not used Exhaust output Pressurization output Metallic fitting available for test (1) and reference (2) connectors: —...
  • Page 21 Other inputs / outputs The outputs enables parts to be connected (test and reference). 0.6 MPa valves air supply input (1 MPa range) 21/42 Optional fitting according to special configuration Optional fitting according to special configuration Pneumatic output 0.6 MPa (87 PSI) (option) A and B: automatic connectors option.

  • Page 22: Pneumatics Configuration

    PNEUMATICS CONFIGURATION According to the part under test and the pressure range, different configurations can be used. Direct mode – Low range 22/42 This configuration is used for direct mode at a pressure range from 0 to 500 kPa (72.5 PSI). Connection Option / description Connection of the air supply to the filter input (0.6 MPa (87 PSI))
  • Page 23 Direct mode – Medium range This configuration is used for direct mode at a maximum pressure of 1MPa (145 PSI). 23/42 Connection Option / description Connection of the regulator air supply to the filter input (1.2 MPa (174 PSI)) Regulator air supply to 1 Air supply to 2 Connection of the air supply (0.6 MPa (87 PSI))
  • Page 24 Direct mode – High range + External Dump option This configuration is used for direct mode at maximum pressure 2 MPa (290 PSI). 24/42 Connection Option / description Air supply to 1 Connection of the air supply to the filter input (0.6 MPa (87 PSI)) Regulator air supply Connection of the regulator air supply (2 MPa (290 PSI)) to 2...
  • Page 25 Direct mode – High range + Elec Reg 2MPa + T1/T2 option This configuration is used for direct mode at maximum pressure 2 MPa (290 PSI). 25/42 Connection Option / description Air supply to 1 Connection of the air supply to the filter input (0.6 MPa (87 PSI)) Regulator air supply Connection of the regulator air supply (2 MPa (290 PSI)) to 2...
  • Page 26 Indirect mode This configuration is used for indirect mode at maximum pressure of 1 MPa (145 PSI). 26/42 Connection Option / description Regulator air Connection of the regulator air supply to the filter input (1.2 MPa (174 PSI)) supply to 1 Air supply to 2 Connection of the air supply (0.6 MPa (87 PSI)) Connection to the vacuum (option)
  • Page 27 Direct mode – Sealed part test option Pressure from 0 to 500 kPa (72.5 PSI). This configuration can be used for test of small test part volumes. Protect volumes and pipes from air blowing and temperatures variations. 27/42 Connection Option / description Air supply to 1 Connection of the air supply to the filter input (0.6 MPa(87 PSI)) Vacuum to 2...
  • Page 28 Direct mode – Sealed part differential volume test option Pressure from 0 to 500 kPa (72.5 PSI). This configuration can be used for test of small test part volumes. 28/42 Connection Option / description Air supply to 1 Connection of the air supply to the filter input (0.6 MPa(87 PSI)) Vacuum to 2 Connection to the vacuum (option) 3 to 4...
  • Page 29 Direct mode – Test check by pressure drop option Pressure from 0 to 500 kPa (72.5 PSI). 29/42 Connection Option / description Air supply to 1 Connection of the air supply to the filter input (0.6 MPa (87 PSI)) Vacuum to 2 Connection to the vacuum (option) 3 to 4 Connection of the reference output to the reference part...

  • Page 30: User Interface

    User interface OVERVIEW The user interface comprises a display and user keys located on the front panel. 30/42 1 Display 2 Cycle keys 3 Navigation keys KEYS Cycle keys The cycle keys are used to start and to stop a measurement cycle. Name Function On the Program screen, starts a measurement cycle and opens...

  • Page 31: Display

    Navigation keys The navigation keys are used to select menus/options and change parameter values. Name Function Up key Scrolls up or increases numerical values. 31/42 Down key Scrolls down or decreases numerical values. Returns to the MAIN MENU screen or opens menus and options, validates parameters.
  • Page 32 The Measurement cycle screen The Measurement cycle screen displays the different values of the current test (or last one). Test pressure measurement Test result or step phase Test reject value 32/42 Vertical line test result Remaining time of the current phase or ready status Leak measurement Measurement unit...

  • Page 33: Starting Up

    Starting up POWER UP 1. Make sure that all the necessary connections are in 33/42 place. Electrical: such as power supply, inputs/outputs. Pneumatic: including line pressure supply. 2. Power up your device. When power-up is completed, the Program screen is displayed, with last program used on screen. PREPARING A PROGRAM Use this procedure to configure a new test program.

  • Page 34: Modifying A Parameter

    CONFIGURING THE ASSOCIATED MEASUREMENTS 3.  Select the program to configure and press The parameters of the selected measurement type are displayed. 4. Define the measurement cycle parameters. 34/42 See: Modifying a parameter. MODIFYING A PARAMETER Use this procedure to complete the test program setup. The protection of the parameters is configurable.

  • Page 35: Selecting A Program Or A Sequence

    SELECTING A PROGRAM OR A SEQUENCE If necessary, you can select another program. 1.  Press up/down   35/42 STARTING AND STOPPING CURRENT CYCLE Use the front panel keys to start/stop a measurement cycle. With the desired program displayed on the Program screen: STARTING A MEASUREMENT CYCLE 1. ...

  • Page 36: User Adjustments

    User adjustments OPTIONS OF THE MENUS 36/42 Different menus are accessible on the MAIN MENU screen. For more information, refer to the Reference Manual. SPECIAL CYCLE MENU menu Use this menu to carry out specific procedures necessary to ensure the proper operation of measurement cycles (for example, adjustment of pressure regulator).
  • Page 37 PARAMETERS menu Use this menu to configure the measurement cycle associated to each test program. 37/42 Default parameters of the LEAK type tests. Label Parameter Description Coupling time COUPL. A or COUPL. B Required times when instrument manage automatic jigs Fill time Time to pressurise the part under test FILL TIME...
  • Page 38 Additional functions Label Function Description Auxiliaries output 24 Available outputs for external automatism 24V OUTPUTS Absolute Display the absolute value of the results ABSOLUTE 38/42 Absorb the important leak variations at the defined time ATF time ATR0 / ATR1 /ATR2 / ATR 0 - 3 Specific filters on leak measurement ATR3...
  • Page 39 Access to International System or American or Custom Units Valve codes Available outputs for external automatism VALVE CODES 39/42 CONFIGURATION menu Use this menu to configure your ATEQ device. Label Function Description Language Selection of the language displayed on the screen LANGUAGE...
  • Page 40 Results statistics Statistics for each program USB : the results will be saved at the same time on the internal memory and on the USB stick (Format Fat32) > ATEQ > RESULTS >Serial Number > .csv file by date (YYYYMMDD.csv). QSG_F670_363.00_EN_01_2021-02-09...
  • Page 41 USB menu This section describes save and restore parameters on an external USB device. 41/42 Label Description Save parameters Save parameters on an external USB memory device for restoring later Restore parameters Restore parameters from an external USB memory device QSG_F670_363.00_EN_01_2021-02-09...

  • Page 42: Specifications

    Specifications CHARACTERISTICS Technical characteristics of the device. 42/42 Main characteristics: Characteristics Values Case dimensions: Height x Width x Depth 157 x 537 x 305 mm Overall dimensions 157 x 537 x 380 mm Format 19-inch rack Mass About 8 kg (17.6 lbs) —...
