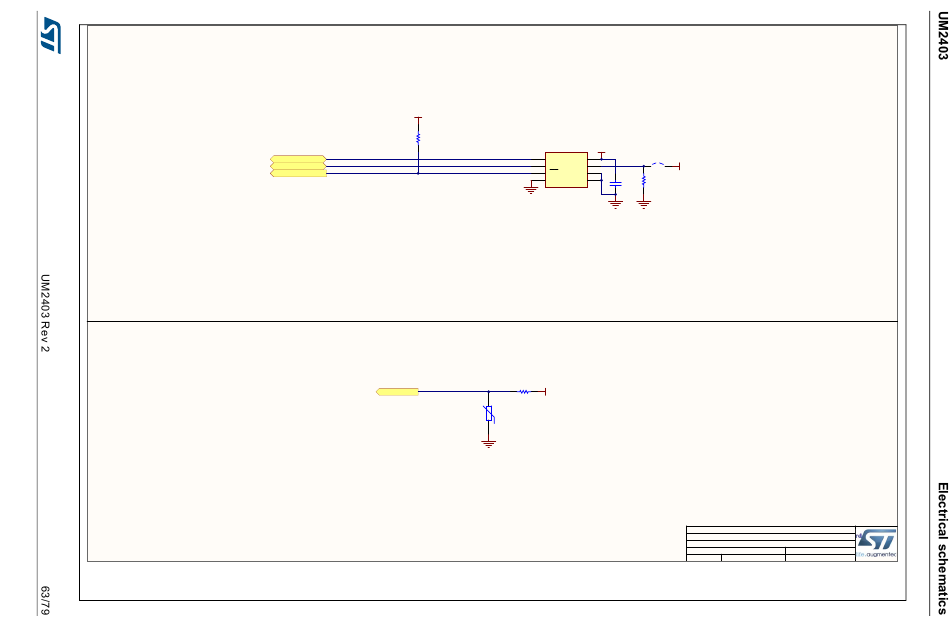

Figure 43. STM32G081B-EVAL legacy peripheral daughterboard temperature sensor and LDR
PB7
I2C1_SDA_5V
PB6
I2C1_SCL_5V
PB5
TempSensor_INT
LDR_OUT
VDD
R23
10K
U3
1
SDA
VDD
2
SCL
A0
3
OS/INT
A1
4
GND
A2
STLM75M2F
R2
PA1
VDD_ANA
8.2K
R1
VT9ON1
Photo resistor
+5V
8
SB7
7
+5V
6
5
R19
C7
10K
100nF
Temperature sensor
Address:100100(A0)
Title:
TemSensor_LDR
Project:
STM32G081B-EVAL Legacy peripheral daughter board
Variant:
Variant name is not interpreted until output
Revision:
A 01
-
Size:
A4
Date:
17-MAY-17
Reference:
MB1351
Sheet:
5
