Connectors
7.2.2
Smartcard connector CN2
Pin number
1
2
3
4
17
42/79

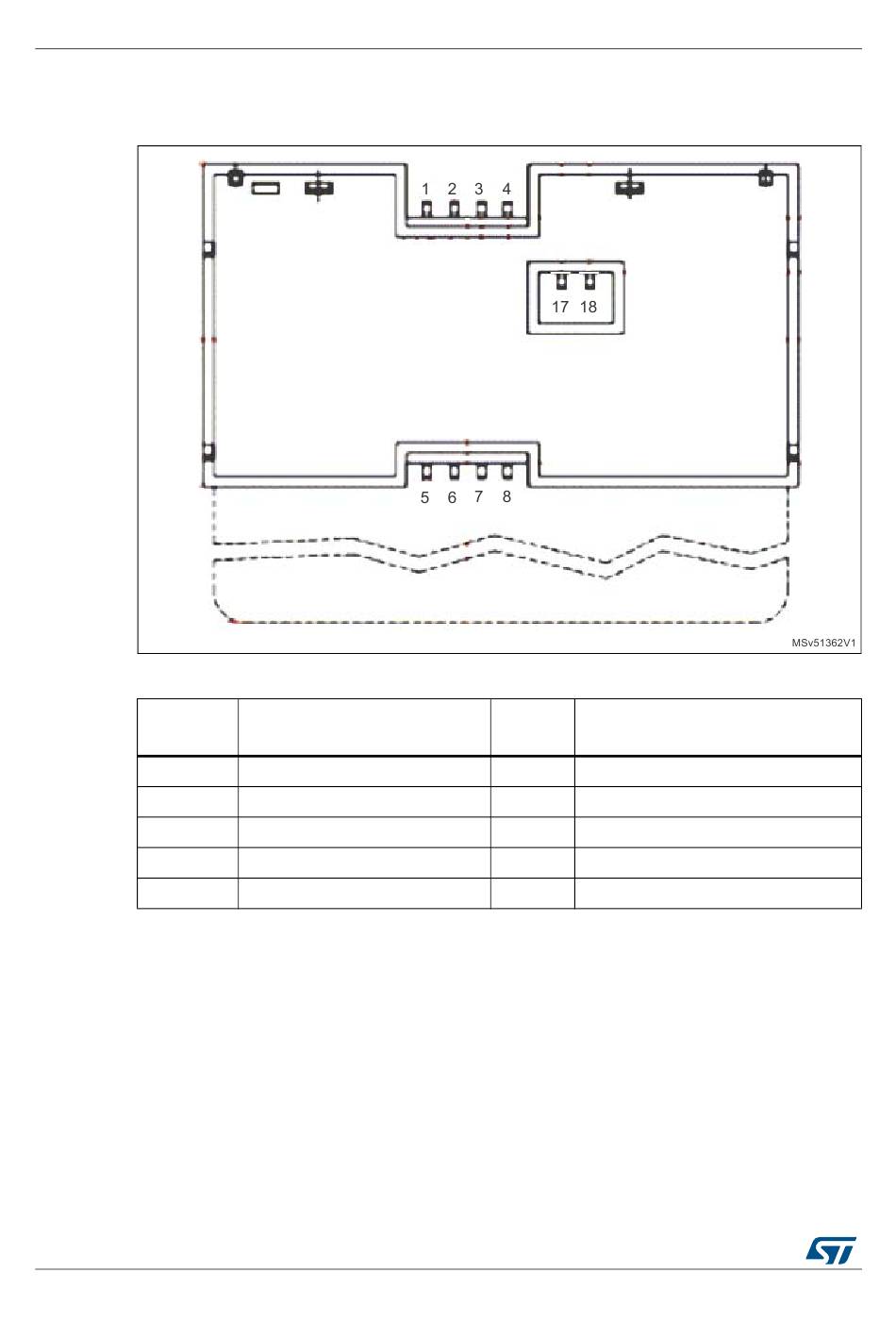

Figure 20. Smartcard connector CN2 (top view)
Table 34. Smartcard connector CN2
Description
VCC
RST
CLK
NC
Card presence detection pin
UM2403 Rev 2
Pin
number
5
GND
6
NC
7
I/O
8
NC
18
Card presence detection pin
UM2403
Description
Table of
Contents
Previous
Page
Next
Page
