7.1.10
High density SWD connector CN13
Pin number
1
3
5
7
9
7.1.11
TFT LCD connector CN14
A TFT color LCD board is mounted on CN14. Please refer to Section 1.6.7 for detail.
7.1.12
Audio jack CN15
A 3.5mm Stereo audio jack CN15 connected to audio DAC and ADC is available on
STM32G081B-EVAL board.
7.1.13
5 V Power connector CN16
STM32G081B-EVAL Evaluation mother board can be powered from a DC 5V power supply
via the external power supply jack (CN16) shown in
be positive.
40/79

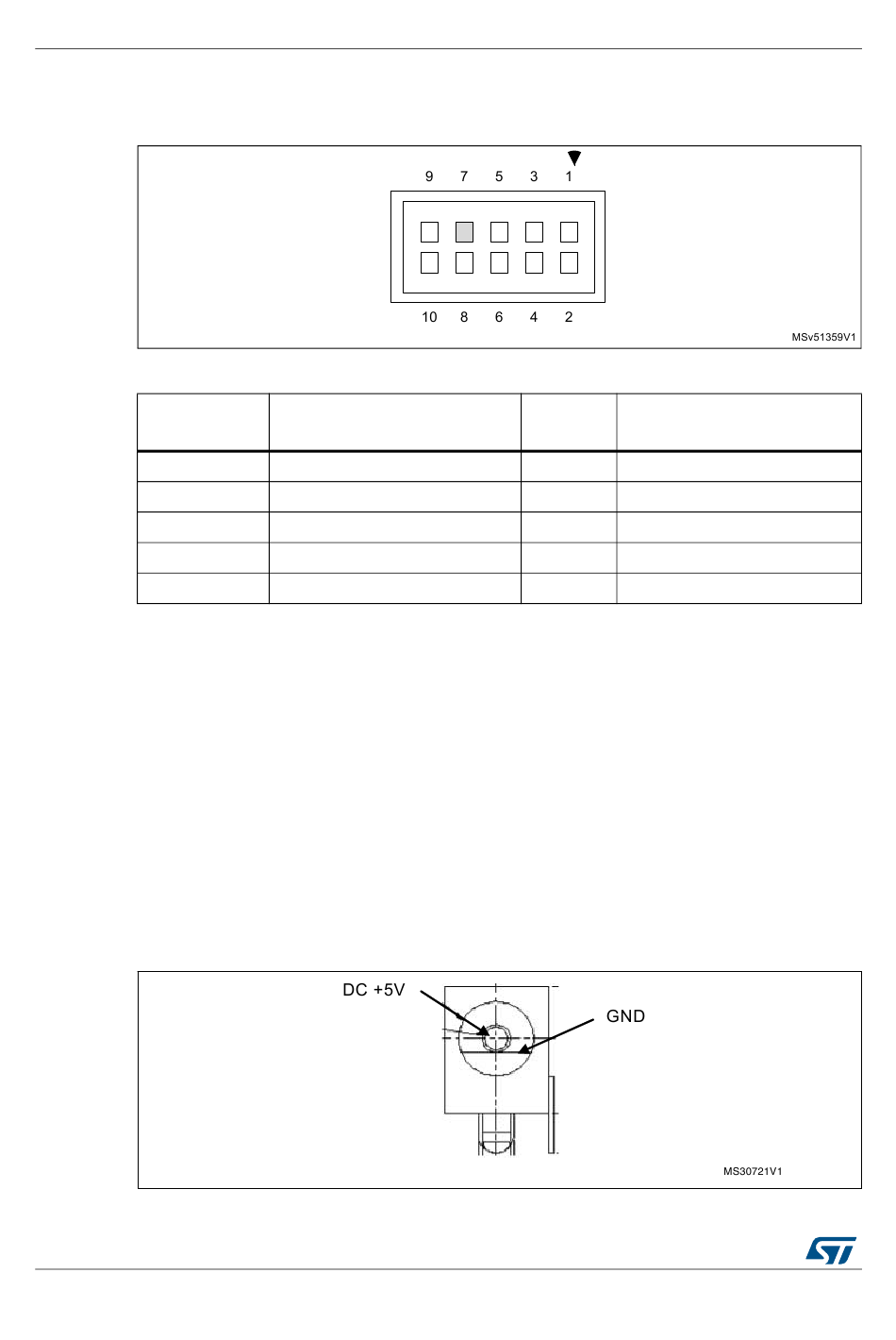

Figure 16. High density SWD debugging connector CN13 (top view)
Table 31. High density SWD debugging connector CN13
Description
VDD
GND
GND
KEY
GND
Figure 17. Power-supply connector CN16 (front view)
Pin
number
2
4
6
8
10
Figure
UM2403 Rev 2
Description
SWDAT(PA13)
SWCLK(PA14)
NC
NC
RESET#
17. The central pin of CN16 must
UM2403
