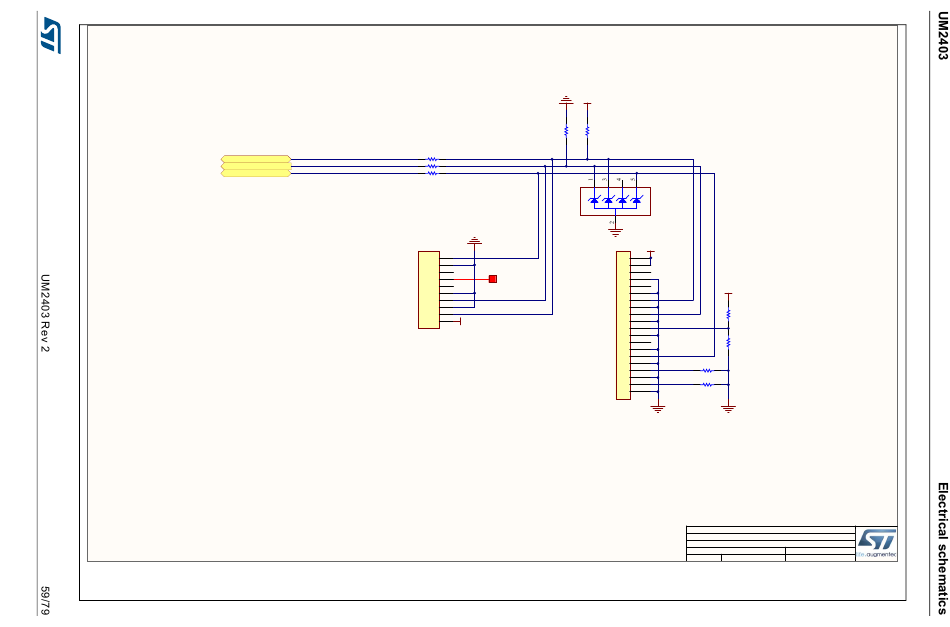

Figure 39. STM32G081B-EVAL SWD
PA13
SWDAT
PA14
SWCLK
RESET#
VDD
R51
R49
[N/A]
[N/A]
R48 22
R50 22
R54 22
U9
ESDALC6V1W5
CN13
FTSH-105-01-L-DV
10
9
8
KEY
7
6
5
4
3
2
1 VDD
High Density SWD connector
CN12
SWD VDD
1
2
3
4
5
6 VDD
7
8
9 R53
10 [N/A]
11
12
13 R52
14 10K
15
16
17 R55 10K
18
19 R58 10K
20
Standard SWD connector
Title: SWD
Project: STM32G081B-EVAL Mother board
Variant: Variant name is not interpreted until output
Revision: B 01 - Reference:
Size: A4 Date: 31-AUG-17 Sheet:
MB1350
12 of 12
