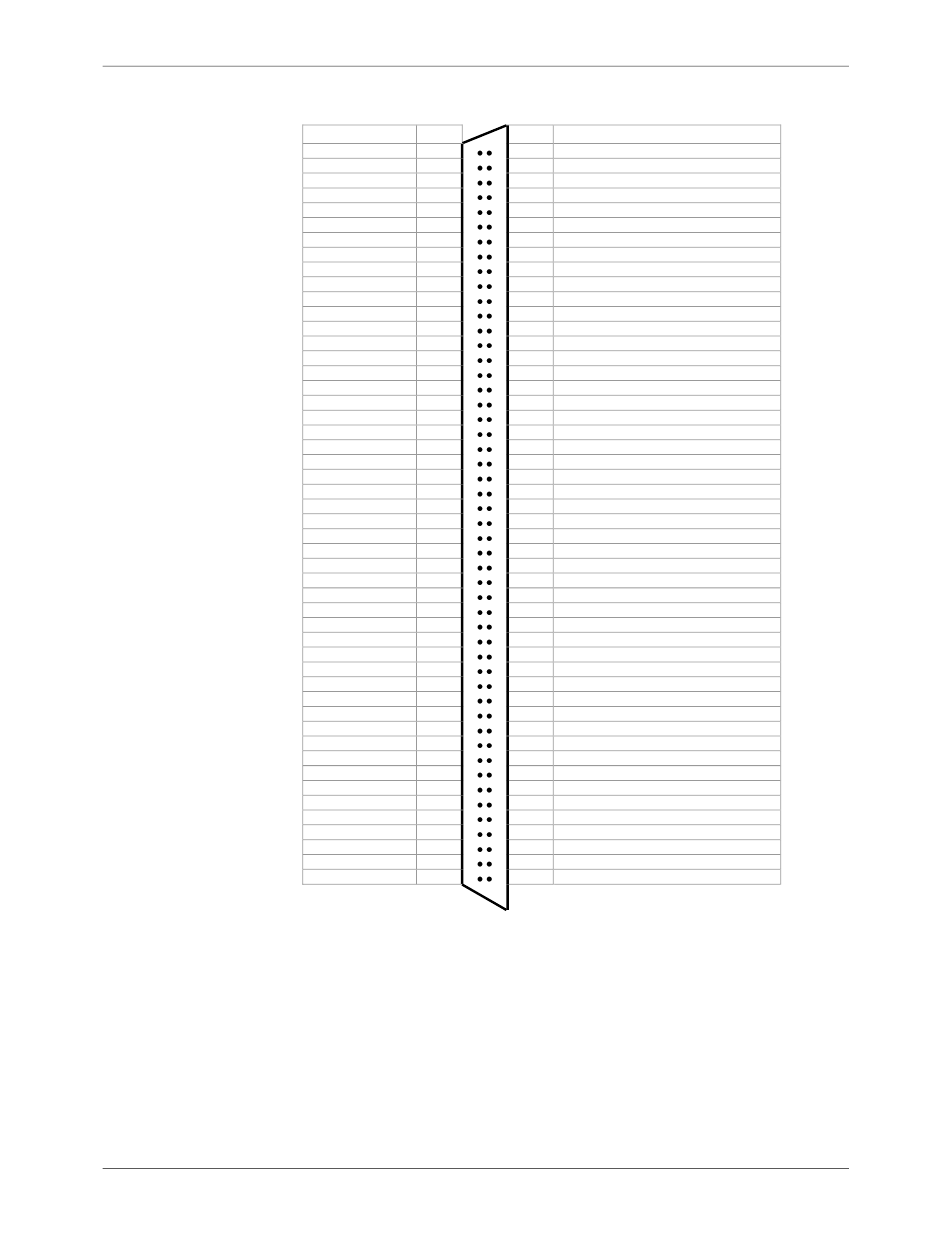

Pin out – main I/O
connector
8-channel differential mode
* Not available on the
PCI-DAS6013
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Signal Name Pin
GND 100
CTR2 OUT 99
CTR2 GATE 98
CTR2 CLK 97
GND 96
CTR1 OUT 95
CTR1 GATE 94
CTR1 CLK 93
DIO7 92
DIO6 91
DIO5 90
DIO4 89
DIO3 88
DIO2 87
DIO1 86
DIO0 85
n/c 84
n/c 83
n/c 82
n/c 81
n/c 80
n/c 79
n/c 78
n/c 77
n/c 76
n/c 75
n/c 74
n/c 73
n/c 72
n/c 71
n/c 70
n/c 69
n/c 68
n/c 67
n/c 66
n/c 65
n/c 64
n/c 63
n/c 62
n/c 61
n/c 60
n/c 59
n/c 58
n/c 57
n/c 56
n/c 55
n/c 54
n/c 53
n/c 52
n/c 51
↓
PCI slot
13
