PCI-DAS6013 and PCI-DAS6014 User's Guide
Pins 1-50 are on the long side
of the ―D‖ connector.
50 100
1 51
Pins 51-100 are on
the short side of
the ―D‖ connector.
50 100
1 51
Details on these cables are available on our web site at www.mccdaq.com/products/accessories.aspx.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Strain relief is
stamped ―Pins 1-50‖.
Strain relief is
Stamped ―Pins 51-100‖.

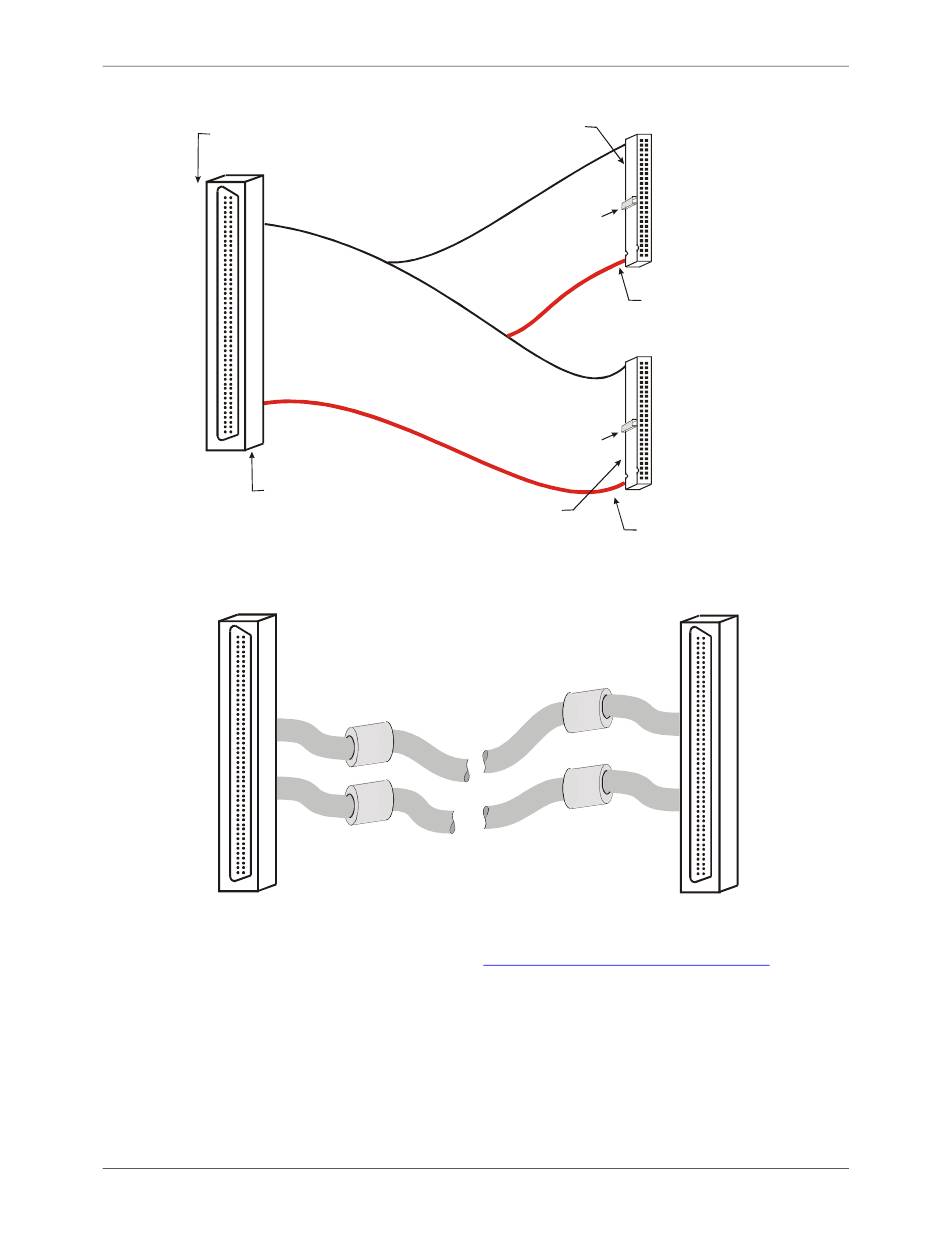

Figure 1. C100HD50-x cable
Figure 2. C100MMS-x cable
15
Installing the PCI-DAS6013 and PCI-DAS6014
49 50
Key
2
1
The red stripe
identifies pin # 1
99 100
Key
51 52
The red stripe
identifies pin # 51
50 100
1 51
