- Page 1 (217) 352-9330 | Click HERE Find the Measurement Computing PCI-DAS1000 at our website:...
- Page 3 PCI-DAS1000 Multifunction Analog & Digital I/O User's Guide Document Revision 3, March, 2009 © Copyright 2009, Measurement Computing Corporation...
- Page 4 Management committed to your satisfaction! Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our mission: ...
- Page 5 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 6: Table Of Contents
Software features ..............................7 PCI-DAS1000 block diagram ..........................8 Chapter 2 Installing the PCI-DAS1000 ........................9 What is included with your PCI-DAS1000 ......................9 Hardware ..................................9 Additional documentation ..............................9 Optional components ................................ 9 Unpacking the PCI-DAS1000 .......................... 10 Installing the software ............................ -
Page 7: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DAS1000 so that you get the most out of its analog, digital, and timing I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 8: Register-Level Programming
You should use the Universal Library to control your board. Only experienced programmers should perform register-level programming. If you need to program at the register level in your application, refer to the Register Map for the PCI-DAS1000 Series (available at www.mccdaq.com/registermaps/RegMapSTC1000.pdf). -
Page 9: Introducing The Pci-Das1000

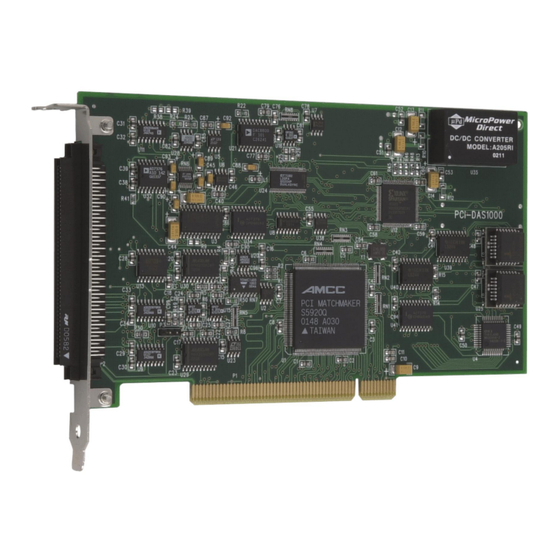

Introducing the PCI-DAS1000 Overview: PCI-DAS1000 features This manual explains how to install and use the PCI-DAS1000. This board is a multifunction analog and digital I/O board designed for the PCI bus. The PCI-DAS1000 provides either 16 single-ended or eight differential analog inputs. Input ranges are software-selectable as either bipolar or unipolar. -
Page 10: Pci-Das1000 Block Diagram
PCI-DAS1000 User's Guide Introducing the PCI-DAS1000 PCI-DAS1000 block diagram PCI-DAS1000 functions are illustrated in the block diagram shown here. Figure 1. PCI-DAS1000 functional block diagram... -
Page 11: Installing The Pci-Das1000
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DAS1000 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 12: Unpacking The Pci-Das1000
As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the PCI-DAS1000 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge. -
Page 13: Configuring The Hardware
Installing the PCI-DAS1000 Configuring the hardware All hardware configuration options on the PCI-DAS1000 are software controlled. You can select some of the configuration options using InstaCal, such as the analog input configuration (16 single-ended or eight differential channels), and the source for the two independent counters. Once selected, any program that uses the Universal Library will initialize the hardware according to these selections. -
Page 14: Pinout - Main I/O Connector
PCI-DAS1000 User's Guide Installing the PCI-DAS1000 Pinout – main I/O connector 8-channel differential mode Signal Name Signal Name PC +5V A/D Int. Pacer Output A/D External Trigger PC -12V A/D External Pacer PC GND CTR4 OUT CTR4 GATE PC +12V... - Page 15 PCI-DAS1000 User's Guide Installing the PCI-DAS1000 16-channel single-ended mode Signal Name Signal Name PC +5V A/D Int. Pacer Output A/D External Trigger In PC -12V A/D External Pacer PC GND CTR4 OUT PC +12V CTR4 GATE PC GND CTR4 CLK...
-
Page 16: Cables
PCI-DAS1000 User's Guide Installing the PCI-DAS1000 Cables Cable is labeled “Pins 1-50”. The red stripe identifies pin # 1 Cable is labeled “Pins 51-100”. The red stripe identifies pin # 51 Figure 2. C100FF-x cable Field wiring and signal termination The table below lists the MCC screw terminal and signal conditioning boards that are compatible with the PCI-DAS1000. -
Page 17: Calibrating The Board
Calibration theory The PCI-DAS1000 is shipped fully calibrated from the factory with calibration coefficients stored in nvRAM. When using the Universal Library at run time, these calibration factors are loaded into system memory and are automatically retrieved each time a different DAC/ADC range is specified. -
Page 18: Chapter 4 Specifications
Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications Parameter Specification A/D converter type 7800 Resolution 12 bits Number of channels 8 differential or 16 single-ended, software selectable Input ranges ±10 V, ±5 V, ±2.5 V, ±1.25 V, 0 to 10 V, 0 to 5 V, 0 to 2.5 V, 0 to 1.25 V. -
Page 19: Digital Input/Output
PCI-DAS1000 User's Guide Specifications Digital input/output Table 2. DIO specifications Parameter Specification Digital type 82C55A Configuration 2 banks of 8, 2 banks of 4, programmable by bank as input or output Number of channels 24 I/O (FIRSTPORTA 0 through FIRSTPORTC 7) Output high 3.0 volts, min @ -2.5 mA... -
Page 20: Power Consumption
PCI-DAS1000 User's Guide Specifications Parameter Specification Output high voltage 3.0 V min Power consumption Table 4. Power consumption specifications Parameter Specification +5 V operating (A/D converting to FIFO) 0.8 A typical, 1.0 A max Environmental Table 5. Environmental specifications Parameter... -
Page 21: 8-Channel Differential Mode Pin Out
PCI-DAS1000 User's Guide Specifications 8-channel differential mode pin out Signal Name Signal Name LLGND FIRSTPORTA Bit 0 CH0 IN HI FIRSTPORTA Bit 1 CH0 IN LO FIRSTPORTA Bit 2 CH1 IN HI FIRSTPORTA Bit 3 CH1 IN LO FIRSTPORTA Bit 4... -
Page 22: 16-Channel Single-Ended Mode Pin Out
PCI-DAS1000 User's Guide Specifications 16-channel single-ended mode pin out Signal Name Signal Name LLGND FIRSTPORTA Bit 0 CH0 IN FIRSTPORTA Bit 1 CH8 IN FIRSTPORTA Bit 2 CH1 IN FIRSTPORTA Bit 3 CH9 IN FIRSTPORTA Bit 4 CH2 IN FIRSTPORTA Bit 5... -
Page 23: Declaration Of Conformity
Suite 1008 Norton, MA 02766 Category: Information technology equipment. Measurement Computing Corporation declares under sole responsibility that the product PCI-DAS1000 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EC EMC Directive 2004/108/EC: Electromagnetic Compatibility, EN 61326-1:2006 (IEC 61326-1:2005) Emissions: Group 1, Class B ... - Page 24 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
