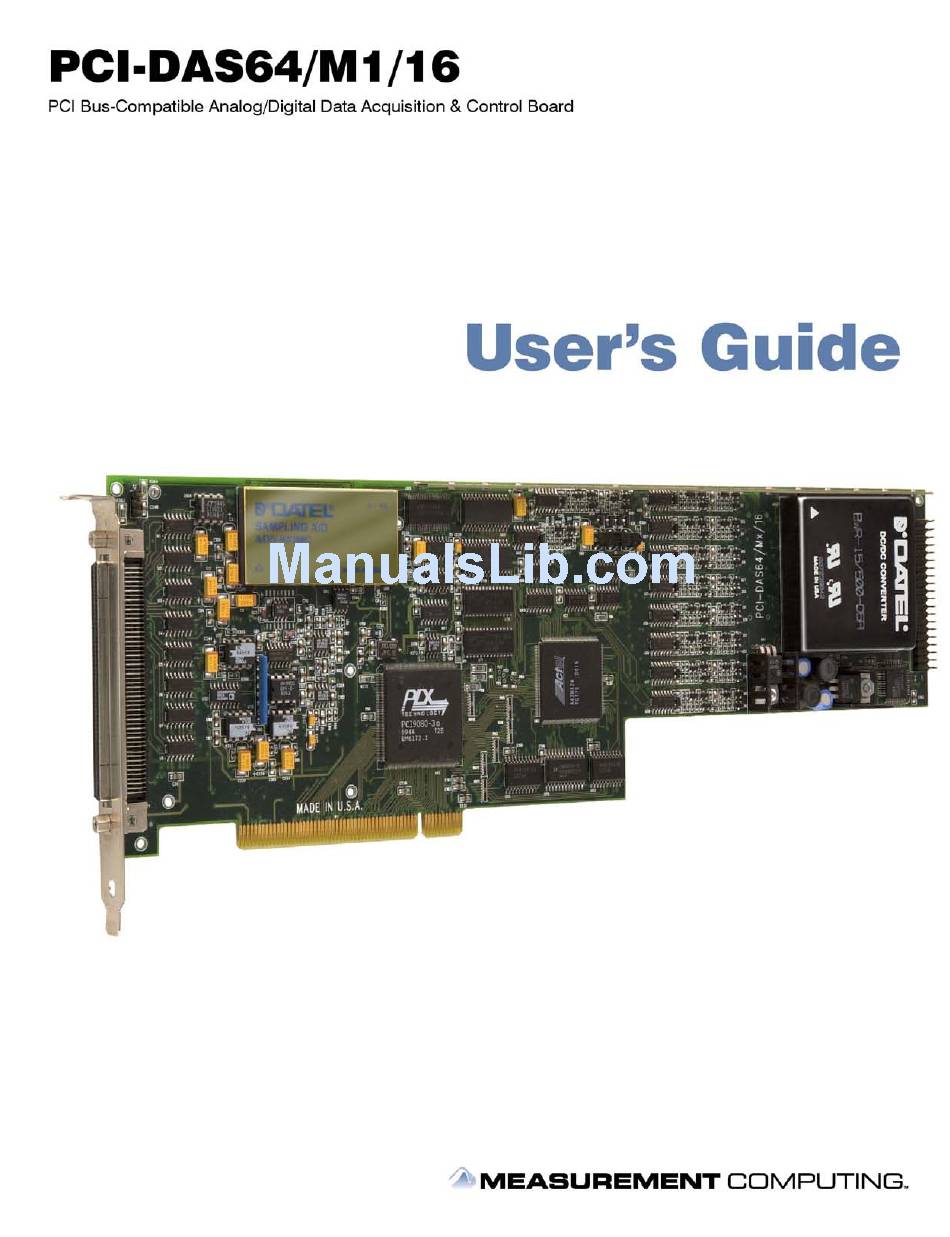

  • Page 2 PCI-DAS64/M1/16 Multifunction Analog & Digital I/O User's Guide Document Revision 1, July, 2006 © Copyright 2006, Measurement Computing Corporation...
  • Page 3 Measurement Computing. Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two missions: To offer the highest-quality, computer-based data acquisition, control, and GPIB hardware and software available—at...
  • Page 4 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.

  • Page 5: Table Of Contents

    Introducing the PCI-DAS64/M1/16 ....................1-1 Overview: PCI-DAS64/M1/16 features......................1-1 Software features ............................1-1 Chapter 2 Installing the PCI-DAS64/M1/16 ....................... 2-1 What comes with your PCI-DAS64/M1/16 shipment?................... 2-1 Hardware ..................................2-1 Additional documentation.............................. 2-1 Optional components ..............................2-1 Unpacking the PCI-DAS64/M1/16......................... 2-2 Installing the software ............................
  • Page 6 PCI-DAS64/M1/16 User's Guide Analog output ..............................6-7 Accuracy ..................................6-7 Analog output pacing and triggering..........................6-8 Digital input/output............................6-8 Interrupts................................. 6-9 Counters................................6-9 Pacer ................................6-10 Power consumption ............................6-10 Environmental .............................. 6-10 Mechanical ..............................6-10 Main connector and pin out .......................... 6-10 Differential mode pin out.............................

  • Page 7: Preface

    About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DAS64/M1/16 so that you get the most out of its analog, digital, and timing I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources.

  • Page 8: Introducing The Pci-Das64/M1/16

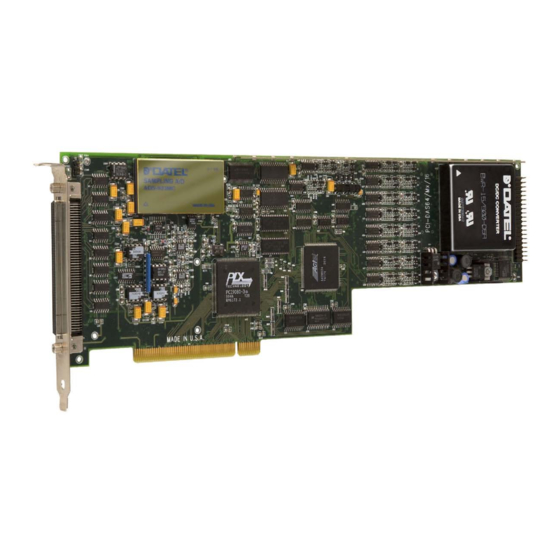

    Chapter 1 Introducing the PCI-DAS64/M1/16 Overview: PCI-DAS64/M1/16 features The PCI-DAS64/M1/16 board offers a combination of high speed, channel count and resolution on a single PCI-bus data acquisition board. It offers: 64 single-ended or 32 differential 16-bit analog inputs 1 MHz sample rate...

  • Page 9: Installing The Pci-Das64/M1/16

    In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DAS64/M1/16 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware.

  • Page 10: Unpacking The Pci-Das64/M1/16

    Fax: 508-946-9500 to the attention of Tech Support Email: techsupport@mccdaq.com Installing the software Refer to the Quick Start Guide for instructions on installing the software on the Measurement Computing Data Acquisition Software CD. This booklet is available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software- Quick-Start.pdf.

  • Page 11: Configuring The Pci-Das64/M1/16

    Calibrate the PCI-DAS64/M1/16 after it has warmed up and immediately before making critical measurements Use the InstaCal utility to calibrate the PCI-DAS64/M1/16 after it has fully warmed up. For best results, calibrate the board immediately before making critical measurements. The high resolution analog components on the board are somewhat sensitive to temperature.

  • Page 12: Pinout - Main I/O Connector

    PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16 Signal Name Signal Name Pinout – main • • LLGND CH0 IN HI • • CH0 IN LO I/O connector • • CH1 IN HI CH1 IN LO CH2 IN HI • • CH2 IN LO •...
  • Page 13 PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16 Table 2-3. 64-channel single-ended mode Signal Name Signal Name • • LLGND CH0 IN • • CH32 IN • • CH1 IN CH33 IN CH2 IN • • CH34 IN • • CH3 IN...
  • Page 14 PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16 Strain relief is stamped “Pins 1-50”. Pins 1-50 are on the long side of the “D” connector. The red stripe identifies pin # 1 Pins 51-100 are on the short side of Strain relief is the “D”...

  • Page 15: Pin Out - Auxiliary Dio Connector

    PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16 Pin out – auxiliary DIO connector The auxiliary digital connector can be accessed using a variety of cabling schemes. To bring the 40-pin header out to a bracket at the back of the PC, use a BP40-37 adapter. This terminates in a CIO-DIO series compatible connector to which you can connect a CIO-MINI37 or CIO-TERMINAL screw terminal board using a C37FF-x or C37FFS-x cable.
  • Page 16 PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16 The red stripe and arrow identify pin # 1 37-pin Male D Connector 40-pin Female with Backplate Assembly IDC Connector Figure 2-5. BP40-37 cable FIRSTPORTA BIT 0 FIRSTPORTA BIT 1 FIRSTPORTA BIT 2 FIRSTPORTA BIT 3...
  • Page 17 PCI-DAS64/M1/16 User's Guide Installing the PCI-DAS64/M1/16 40-pin to 37-pin signal mapping Signal mapping on the C40-37F-x and the BP40-37 cables is not 1:1. Table 2-5 lists the pin numbers of the signals on the 40-pin end and the pin numbers of the associated signals on the 37-pin end.

  • Page 18: Field Wiring, Signal Termination And Conditioning

    Details are available on our web site at http://www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=282. For digital signal conditioning, you can connect the PCI-DAS64/M1/16 to the following boards using the C40-37F-x cable directly or by combining the BP40-37-x cable with the C37FF-x or C37FFS-x cable.

  • Page 19: Programming And Developing Applications

    Software written at the register level for other DAS models will not function correctly with your board. Programming Languages Measurement Computing’s Universal Library™ provides access to board functions from a variety of Windows programming languages. If you are planning to write programs, or would like to run the example programs for ...

  • Page 20: Functional Description

    The PCI-DAS64/M1/16 provides 32 fully differential or 64 single-ended analog inputs. The input mode is software selectable, with no switches or jumpers to set. The PCI-DAS64/M1/16 offers a 1 MHz sample rate. The board offers full speed acquisition in single channel scans, and will perform full accuracy multi-channel scans of up to 1.5 MHz, depending on the operating mode.

  • Page 21: Burst Mode

    The board supports simultaneous full speed operation of both the A/D and D/A. Digital I/O The PCI-DAS64/M1/16 provides 32 bits of digital I/O. An 82C55 chip provides 24 bits of CMOS compatible I/O at the board’s 40-pin auxiliary digital connector. Four LSTTL-compatible digital inputs and four outputs are provided on the main 100-pin connector.

  • Page 22: Calibrating The Pci-Das64/M1/16

    Calibrating the PCI-DAS64/M1/16 Overview The PCI-DAS64/M1/16 provides self-calibration of the analog inputs and outputs, eliminating the need for external equipment and user adjustments. All adjustments are made via 8-bit calibration DACs which are referenced to an on-board factory-calibrated standard. The board is fully calibrated at the factory with calibration coefficients stored in nvRAM.

  • Page 23: Calibration Theory

    PCI-DAS64/M1/16 User's Guide Calibrating the PCI-DAS64/M1/16 Table 5-1. A/D calibration frequencies Calibration Frequency (kHz) Min Sampling Frequency (kHz) Max Sampling Frequency (kHz) 0.01 1000 For best results, calibrate the board immediately prior to making your measurements. The high-resolution analog components on the board are somewhat sensitive to temperature and this pre-measurement calibration helps assure your board operates at the same temperature at which it was calibrated.
  • Page 24 PCI-DAS64/M1/16 User's Guide Calibrating the PCI-DAS64/M1/16 The analog output circuits are calibrated for gain and offset. Gain calibration of the analog outputs is performed via DAC reference adjustments. Offset adjustments for the analog outputs are made in the output buffer section.

  • Page 25: Specifications

    Chapter 6 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog input Table 1. Analog input specifications A/D converter type Sub-ranging sampling ADC Resolution 16 bits Number of channels 32 differential or 64 single-ended, software selectable Input ranges ±5 V, ±2.5 V, ±1.25 V, ±0.625 V, 0 to 5 V, 0 to 2.5 V, 0 to 1.25 V (software programmable)

  • Page 26: System Throughput

    0 V to +5.000 V ±7.5 LSB 0 V to +2.500 V ±10.5 LSB 0 V to +1.250 V ±12.5 LSB Each PCI-DAS64/M1/16 is tested at the factory to assure the board’s overall error does not exceed accuracy limits shown in Table 3...

  • Page 27: Crosstalk

    PCI-DAS64/M1/16 User's Guide Specifications Typical accuracy is derived directly from the various component typical errors. The information in Table 4 assumes that each of the errors contributes in the same direction. Table 5. Analog input — accuracy components specifications Range...

  • Page 28: Noise Performance

    Offset error (LSB) DLE (LSB) ILE (LSB) ±5.0 V ±10.0 max ±5.0 max ±1.0 max ±1.0 max Each PCI-DAS64/M1/16 is tested at the factory to assure the board’s overall error does not exceed the absolute accuracy limits listed in Table 10...

  • Page 29: Analog Output Pacing And Triggering

    PCI-DAS64/M1/16 User's Guide Specifications Analog output pacing and triggering Table 12. Analog output pacing and triggering specifications Internal counter – ASIC D/A pacing (software-programmable) External source (D/A external pacer) Software paced D/A gate sources External digital (external D/A trigger/pacer gate)

  • Page 30: Interrupts

    PCI-DAS64/M1/16 User's Guide Specifications Interrupts Table 14. Interrupt specifications Interrupts PCI INTA# - Mapped to IRQn via PCI BIOS at boot-time Interrupt enable Programmable through PLX9080 ADC interrupt DAQ_ACTIVE: Interrupt is generated when a DAQ sequence is active. DAQ_STOP: Interrupt is generated when A/D Stop Trigger In is detected.

  • Page 31: Pacer

    PCI-DAS64/M1/16 User's Guide Specifications Pacer Table 16. Pacer specifications ADC pacer type ASIC Configuration One down counter, 24 bits (1 scan interval, 1 sample interval) ADC pacer source 40 MHz internal source ADC pacer gate Internally controlled by software/hardware trigger.

  • Page 32: Differential Mode Pin Out

    PCI-DAS64/M1/16 User's Guide Specifications Differential mode pin out Table 21. 32-channel differential mode pin out Signal Name Signal Name CTR1 OUT EXTERNAL INTERRUPT CTR1 CLK A/D EXTERNAL PACER CTR1 GATE A/D STOP TRIGGER IN DOUT3 A/D START TRIGGER IN DOUT2...

  • Page 33: Single-Ended Mode Pin Out

    PCI-DAS64/M1/16 User's Guide Specifications Single-ended mode pin out Table 22. 64-channel single-ended mode pin out Signal name Signal name CTR1 OUT EXTERNAL INTERRUPT CTR1 CLK A/D EXTERNAL PACER CTR1 GATE A/D STOP TRIGGER IN DOUT3 A/D START TRIGGER IN DOUT2...

  • Page 34: Digital Input/Output Connector And Pin Out

    PCI-DAS64/M1/16 User's Guide Specifications Digital input/output connector and pin out Table 23. Digital I/O connector specifications Connector type 40-pin header Connector compatibility Translates to standard CIO-DIO24 type using BP40-37 Compatible cable C40FF-2 Compatible accessory products CIO-MINI40 Table 24. Digital I/O connector pin out...
  • Page 35 Norton, MA 02766 Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DAS64/M1/16 to which this declaration relates is in conformity with the relevant provisions of the following standards or other...
  • Page 36 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
