D/A CONVERT signal

The D/A CONVERT signal causes a single output update on the D/A converters. You can program any AUXIN
pin to accept the D/A CONVERT signal. It is also available as an output on any AUXOUT pin.
The D/A CONVERT input signal polarity is software selectable. DAC outputs update within 100ns of the
selected edge. The D/A CONVERT pulses should be no less than 100 µs apart.
When used as an output, the D/A CONVERT signal may be used to monitor the pacing of the output updates.
The output has a pulse width of 225 ns with selectable polarity.

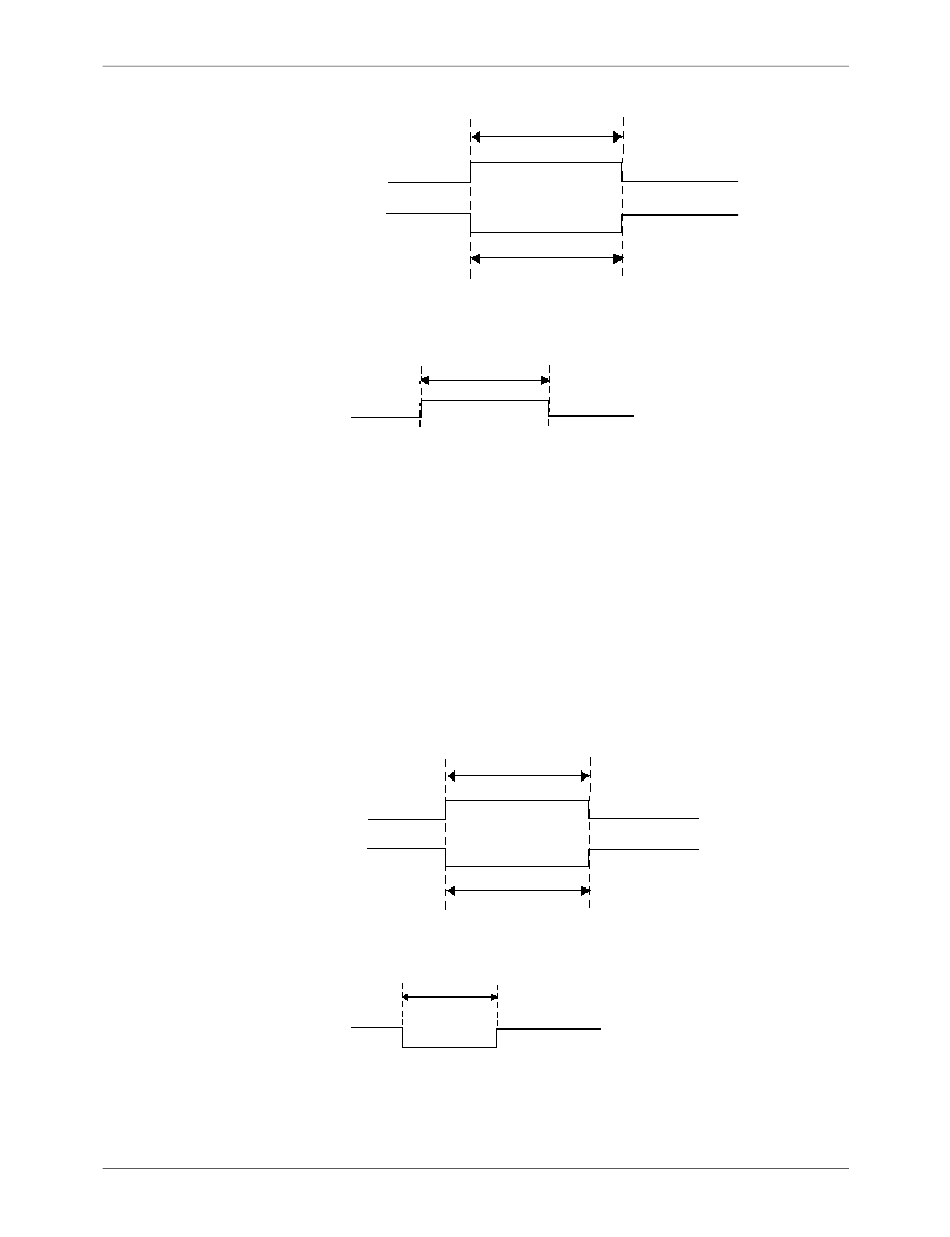

The following figures show the input and output timing requirements for the D/A CONVERT signal.
Rising Edge Polarity
Falling Edge Polarity
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
t
w
Figure 17. D/A START TRIGGER input signal timing
t
= 50 ns
w
Figure 18. D/A START TRIGGER output signal timing
t
= 37.5 ns minimum
w
Figure 19. D/A CONVERT input signal timing
t
w
t
= 225 ns
w
Figure 20. D/A CONVERT output signal timing
25
t
w
= 37.5 ns minimum
t
w
t
w
Functional Details
