D/A EXTERNAL TIMEBASE signal

The D/A EXTERNAL TIME BASE signal can serve as the source for the on-board DAC pacer circuit rather
than using the internal time base. Any AUXIN pin can be set programmatically as the source for this signal. The
polarity is programmable.
The maximum frequency for the D/A EXTERNAL TIMEBASE signal is 20 MHz. The minimum pulse width is
23 ns high or low. There is no minimum frequency specification.
Figure 21 shows the timing requirements for the D/A EXTERNAL TIMEBASE signal.

General-purpose counter signal timing

The general-purpose counter signals are:

CTR1 CLK

CTR1 GATE

CTR1 OUT

CTR2 CLK

CTR2 GATE

CTR2 OUT

CTR1 CLK signal

The CTR1 CLK signal can serve as the clock source for independent user counter 1. It can be selected through
software at the CTR1 CLK pin rather than using the on-board 10 MHz or 100 kHz sources. It is also polarity
programmable. The maximum input frequency is 10 MHz. There is no minimum frequency specified. Figure 22
shows the timing requirements for the CTR1 CLK signal.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
t =50 ns minimum
p
t
p
t t
w w
t =23 ns minimum
w

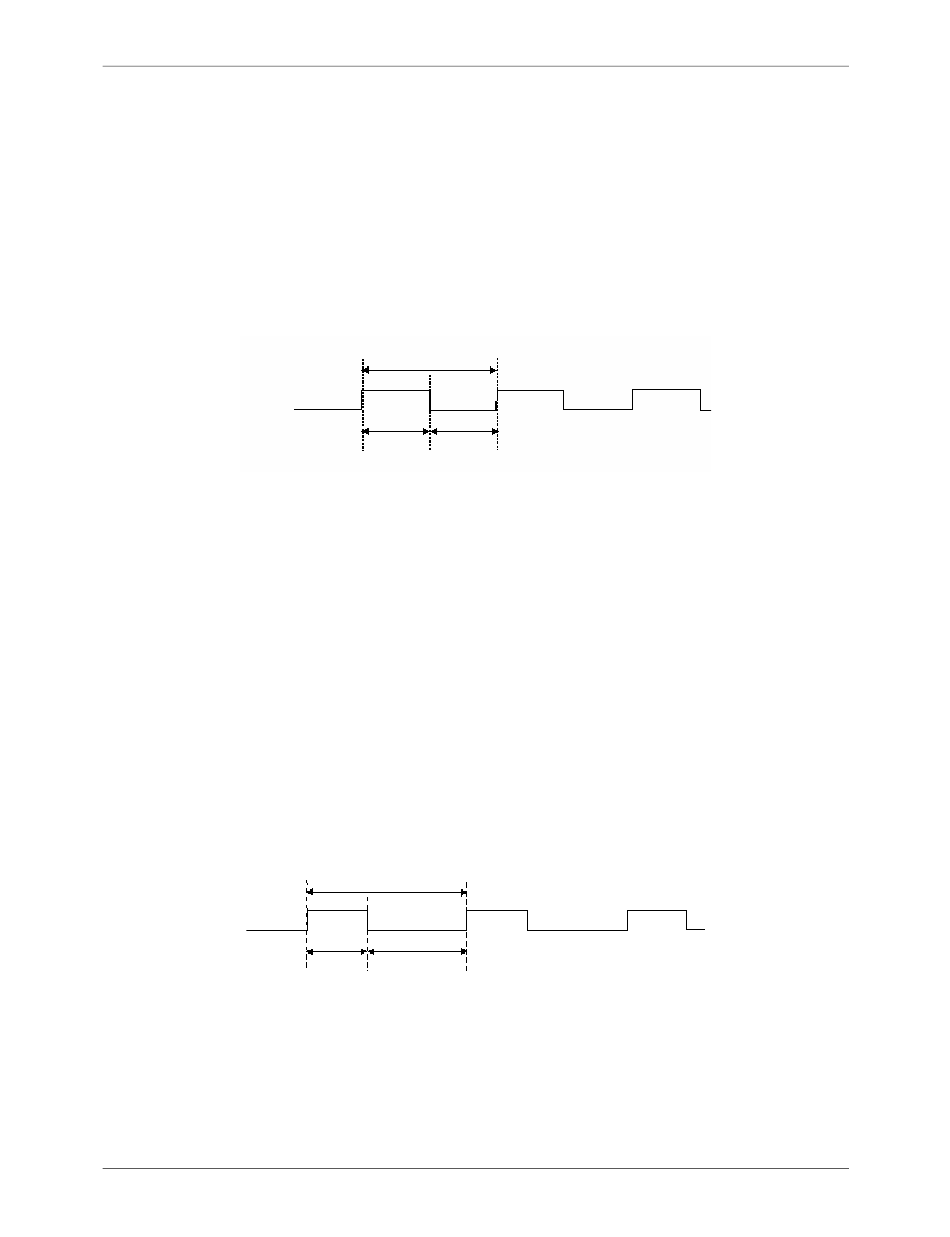

Figure 21. D/A EXTERNAL TIMEBASE signal timing
t =100 ns minimum
p
t t
w-H w-L
t =15 ns minimum
w-H
t =25 ns minimum
w-L
Figure 22. CTR1 CLK signal timing
