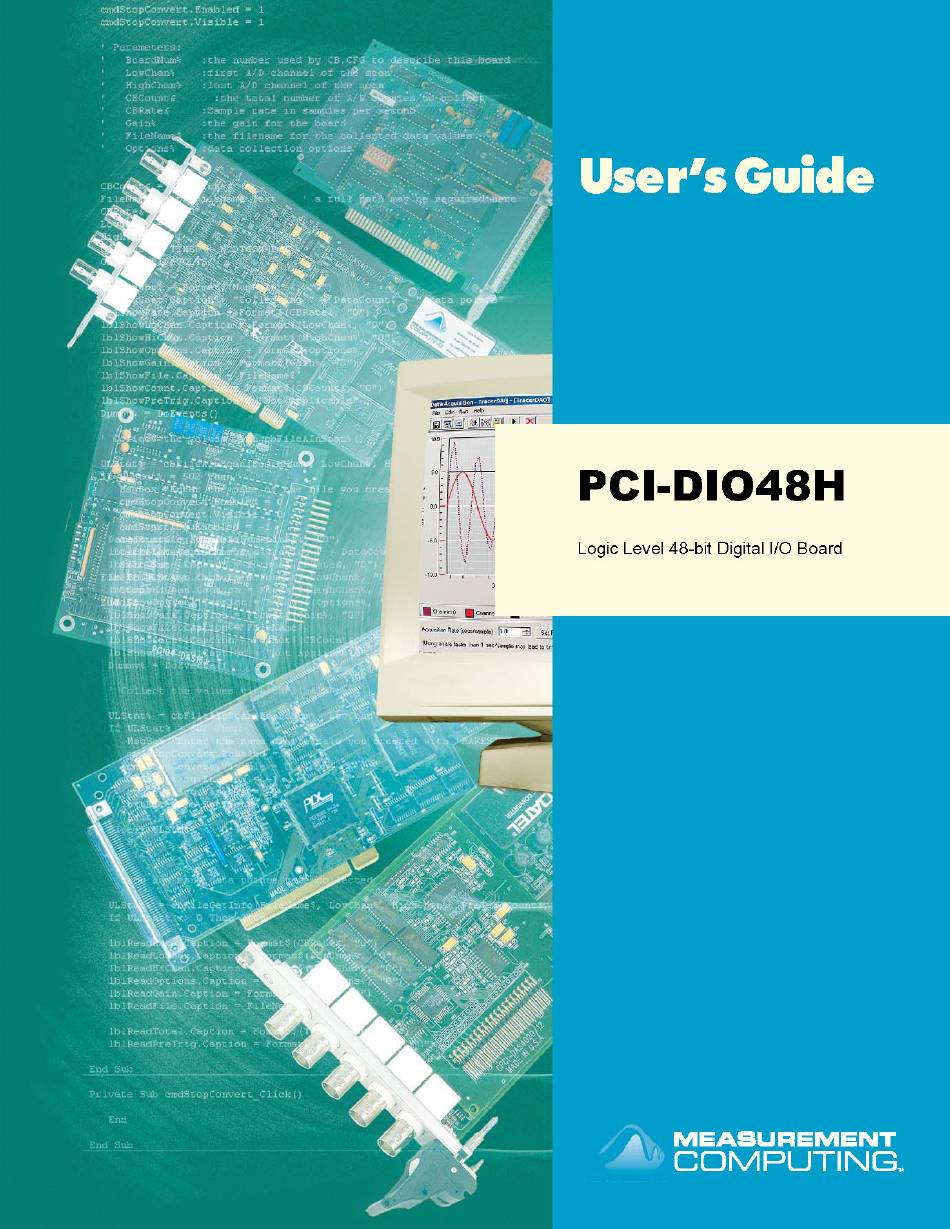

- Page 2 PCI-DIO48H Digital Input/Output User's Guide Document Revision 1, May, 2005 © Copyright 2005, Measurement Computing Corporation...
- Page 3 Measurement Computing. Thank you for choosing a Measurement Computing product—and congratulations! You own the finest, and you can now enjoy the protection of the most comprehensive warranties and unmatched phone tech support. It’s the embodiment of our two missions: To offer the highest-quality, computer-based data acquisition, control, and GPIB hardware and software available—...
- Page 4 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 5: Table Of Contents
Introducing the PCI-DIO48H......................1-1 Overview: PCI-DIO48H features ........................1-1 Software features ............................1-1 Chapter 2 Installing the PCI-DIO48H......................... 2-1 What comes with your PCI-DIO48H shipment? .................... 2-1 Hardware ..................................2-1 Software..................................2-1 Documentation................................2-1 Optional components ..............................2-2 Unpacking the board............................2-2 Installing the software ............................ -
Page 6: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DIO48H so that you get the most out of the digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 7: Introducing The Pci-Dio48H

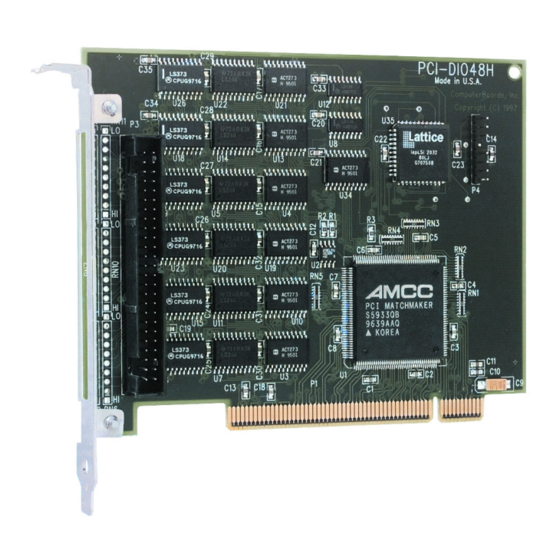

I/O board designed for the PCI-bus. The PCI-DIO48H provides 48-bits of digital I/O. The I/O is organized into two 24-bit groups based on an 82C55 mode 0 emulation. Each 24-bit group is divided into three eight-bit ports labeled PORTA, PORTB and PORTC. - Page 8 PCI-DIO48H User's Guide Introducing the PCI-DIO48H PCI-DIO48H functions are illustrated in the block diagram shown here. HIGH DRIVE Controller FPGA and Logic SECONDPORT SECONDPORTA SECONDPORTA(7:0) Control Control Registers SECONDPORTB(7:0) SECONDPORTB SECONDPORTCH(3:0) SECONDPORTCH SECONDPORTCL SECONDPORTCL(3:0) Decode/Status HIGH DRIVE FIRSTPORT FIRSTPORTA FIRSTPORTA(7:0)
-
Page 9: Installing The Pci-Dio48H
The following items are shipped with the PCI-DIO48H. Hardware PCI-DIO48H board Software The Measurement Computing Data Acquisition Software CD contains the following software: InstaCal installation, calibration, and test utility TracerDAQ suite of virtual instruments SoftWIRE for VS .NET SoftWIRE MCC DAQ C omponents for .NET... -
Page 10: Optional Components
2-4 for a complete list of compatible accessory products. Unpacking the board The PCI-DIO48H board is shipped in an antistatic container to prevent damage by an electrostatic discharge. To avoid such damage, perform the following procedure when unpacking and handling your board. -
Page 11: Installing The Hardware
Installing the PCI-DIO48H Installing the hardware The PCI-DIO48H board is completely plug-and-play. There are no switches or jumpers to set on the board. Configuration is controlled by your system's BIOS. To install your board, follow the steps below. Install the MCC DAQ software before you install your board The driver needed to run your board is installed with the MCC DAQ software. -
Page 12: Field Wiring And Signal Termination Accessories
PCI-DIO48H User's Guide Installing the PCI-DIO48H Pin out – main I/O connector Table 2-2. Main I/O connector pin out Signal name Signal name • • • • FIRSTPORTC Bit 0 FIRSTPORTC Bit 1 FIRSTPORTC Bit 2 • • FIRSTPORTC Bit 3 •... - Page 13 PCI-DIO48H User's Guide Installing the PCI-DIO48H CIO-ERB24 – 24 Form C relays, 6 Amp relay accessory board for digital signal conditioning. Details on this product are available on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241. CIO-SERB24/FD – 24 Form C relays, 10 Amp, fault detecting relay accessory board with socketed and field-replaceable relays.
-
Page 14: Programming And Developing Applications
After following the installation instructions in Chapter 2, your board should now be installed and ready for use. Programming languages Measurement Computing’s Universal Library™ provides access to board functions from a variety of Windows programming languages. If you are planning to write programs, or would like to run the ... -
Page 15: Functional Details
The PCI-DIO48H provides digital I/O in a group of 48 bits. To use all of the board's 48 digital I/O bits to monitor and control relays and/or SSRs, configure the daisy chain as shown in... -
Page 16: Pull-Up And Pull-Down Resistors
SIP (MCC part number SP-K2.29C). Unconnected inputs float Unconnected inputs typically float high, but not reliably. If you are using a PCI-DIO48H board for input and have unconnected inputs, ignore the data from those lines. You do not have to terminate input lines. -
Page 17: Specifications
Chapter 5 Specifications Typical for 25 °C unless otherwise specified. Digital Input / Output Table 5-1. Digital I/O specifications Digital Type 8255 emulation, Mode 0 Output: 74S244 Input: 74LS373 Configuration 4 banks of 8, 4 banks of 4, programmable by bank as input or output Number of I/O Output High 2.4 volts min @ -15mA... -
Page 18: Main Connector And Pin Out
PCI-DIO48H User's Guide Specifications Main Connector and Pin Out Table 5-6. Main connector specifications Connector type 50-pin, high-density IDC male header connector. Compatible cables C50FF-x Compatible accessory CIO-MINI50 products CIO-SPADE50 SCB-50 CIO-ERB24 CIO-SERB24/FD CIO-ERB48 CIO-SERB48 SSR-RACK24 SSR-RACK48 Signal name Signal name... - Page 19 EC Declaration of Conformity We, Measurement Computing Corporation, declare under sole responsibility that the products: PCI-DIO48H 48-bit digital I/O board for the PCI bus Part Number Description to which this declaration relates, meets the essential requirements, is in conformity with, and CE marking...
- Page 20 Measurement Computing Corporation 16 Commerce Boulevard, Middleboro, Massachusetts 02346 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
