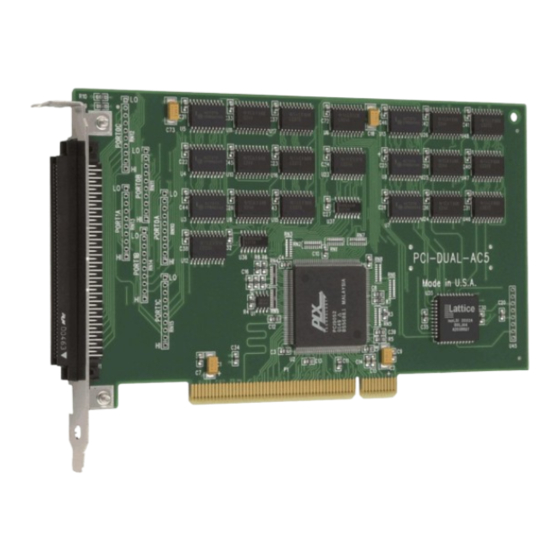

- Page 3 PCI-DUAL-AC5 High Output Digital I/O User’s Guide Document Revision 5A, May, 2009 © Copyright 2009, Measurement Computing Corporation...
- Page 4 Other product and company names mentioned herein are trademarks or trade names of their respective companies. © 2009 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.
- Page 5 Information furnished by Measurement Computing Corporation is believed to be accurate and reliable. However, no responsibility is assumed by Measurement Computing Corporation neither for its use; nor for any infringements of patents or other rights of third parties, which may result from its use. No license is granted by implication or otherwise under any patent or copyrights of Measurement Computing Corporation.
-
Page 6: Table Of Contents
Overview: PCI-DUAL-AC5 features ......................... 7 Software features ..............................7 Chapter 2 Installing the PCI-DUAL-AC5 ....................... 8 What comes with your PCI-DUAL-AC5 shipment? ..................8 Hardware ..................................8 Additional documentation ..............................8 Optional components ................................ 8 Unpacking the board ............................9 Installing the software ............................ -
Page 7: Preface
About this User's Guide What you will learn from this user's guide This user's guide explains how to install, configure, and use the PCI-DUAL-AC5 board so that you get the most out of its digital I/O features. This user's guide also refers you to related documents available on our web site, and to technical support resources. -
Page 8: Introducing The Pci-Dual-Ac5
BIOS. Software features For information on the features of InstaCal and the other software included with your PCI-DUAL-AC5, refer to the Quick Start Guide that shipped with your device. The Quick Start Guide is also available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf. -
Page 9: Installing The Pci-Dual-Ac5
In addition to this hardware user's guide, you should also receive the Quick Start Guide (available in PDF at www.mccdaq.com/PDFmanuals/DAQ-Software-Quick-Start.pdf). This booklet supplies a brief description of the software you received with your PCI-DUAL-AC5 and information regarding installation of that software. Please read this booklet completely before installing any software or hardware. -
Page 10: Unpacking The Board
As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the PCI-DUAL-AC5 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge. -
Page 11: Connecting The Board For I/O Operations
CIO-TERM100 SCB-50 The PCI-DUAL-AC5 connector is accessible through the PCI slot expansion bracket. The connector is a standard 100-pin header connector. If you are connecting to the SSR-PB24 or equivalent, we recommend using the C100FE-x series cable, which splits the 100-pins into two edge-connectors which you can then connect to two SSR-PB24 racks. -
Page 12: Field Wiring And Signal Termination
PCI-DUAL-AC5 User's Guide Installing the PCI-DUAL-AC5 First Port C Second Port C Base + 2 Base + 6 GND 18 B6 19 First Port B Second Port B Base + 1 Base + 5 A6 35 GND 36 A5 37... - Page 13 You can use the following relay mounting rack with the C100FE-x cable to provide digital signal conditioning. SSR-PB24 – 24 channel solid-state relay mounting and interface rack. The PCI-DUAL-AC5 supports up to two SSR-PB24 boards (one cable required per SSR-PB24).
-
Page 14: Chapter 3 Functional Details
Chapter 3 Functional Details PCI-DUAL-AC5 block diagram PCI-DUAL-AC5 functions are illustrated in the block diagram shown here. I/O Module Controller FPGA and Logic Racks FIRSTPORTA(7:0) Port A AC/DC Control Control Bus Registers FIRSTPORTB(7:0) Port B FIRSTPORTB(7:0) Port C Decode/Status SECONDPORTA(7:0) -
Page 15: Pci-Dual-Ac5 To Ssr-Pb24 Rack Connections
The PCI-DUAL-AC5 board provides 48 bits of digital I/O. However, most popular relay and SSR boards provide 24-bits of I/O. The PCI-DUAL-AC5 uses a dual-leg cable, C100FE-x to monitor and control SSRs on two SSR-PB24 racks. The configuration is shown in Figure 3. -
Page 16: Pull-Up And Pull-Down Resistors
Figure 4. Eight-resistor SIP Schematic The PCI-DUAL-AC5 board has open locations where you can install a 2.2 K ohm, eight-resistor single inline package (SIP) resistor network for each port. The locations are adjacent to the I/O connector and are marked... -
Page 17: Ttl To Solid State Relays
SSRs are the recommended method of interfacing to AC and high DC signals. The most convenient way to use solid state relays and a PCI-DUAL-AC5 board is to purchase a solid state relay rack. The rack recommended for use with the PCI-DUAL-AC5 board is the... -
Page 18: Chapter 4 Specifications
Chapter 4 Specifications Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design Power consumption Table 1. Power consumption specifications +5V Operating 1.13 A typical, 1.80 A max Digital Input / Output Table 2. Digital I/O specifications Digital type (main connector) 8255 mode 0 emulation Output... - Page 19 PCI-DUAL-AC5 User's Guide Specifications Table 6. Main connector pin out Signal name Signal name FIRSTPORTC Bit 7 SECONDPORTC Bit 7 FIRSTPORTC Bit 6 SECONDPORTC Bit 6 FIRSTPORTC Bit 5 SECONDPORTC Bit 5 FIRSTPORTC Bit 4 SECONDPORTC Bit 4 FIRSTPORTC Bit 3...
-
Page 20: Declaration Of Conformity
Norton, MA 02766 Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DUAL-AC5 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EC EMC Directive 2004/108/EC: General Requirements, EN 61326-1:2006 (IEC 61326-1:2005). - Page 21 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com...
