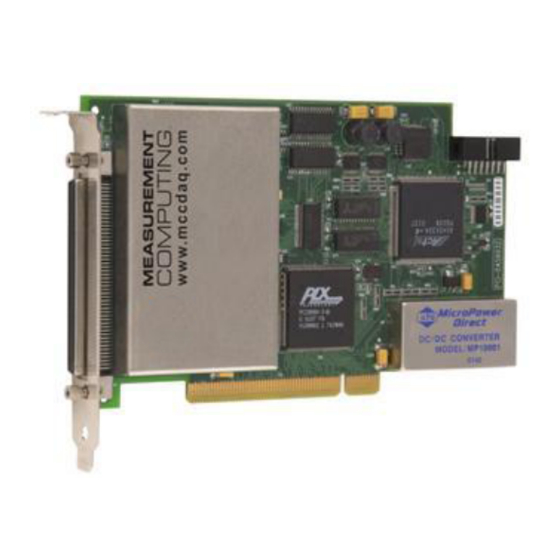

Measurement Computing PCI-DAS6030 User Manual

Analog and digital i/o
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Measurement Computing PCI-DAS6030 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCI-DAS6030 and is the answer not in the manual?

Questions and answers

Related Manuals for Measurement Computing PCI-DAS6030

Summary of Contents for Measurement Computing PCI-DAS6030

  • Page 1 Artisan Technology Group is your source for quality new and certified-used/pre-owned equipment SERVICE CENTER REPAIRS WE BUY USED EQUIPMENT • FAST SHIPPING AND DELIVERY Experienced engineers and technicians on staff Sell your excess, underutilized, and idle used equipment at our full-service, in-house repair center We also offer credit for buy-backs and trade-ins •...
  • Page 2 PCI-DAS6030 and PCI-DAS6032 Analog and Digital I/O User's Guide Document Revision 8A December 2012 © Copyright 2012 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
  • Page 3 Other product and company names mentioned herein are trademarks or trade names of their respective companies. © 2012 Measurement Computing Corporation. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form by any means, electronic, mechanical, by photocopying, recording, or otherwise without the prior written permission of Measurement Computing Corporation.

  • Page 4: Table Of Contents

    Introducing the PCI-DAS6030 and PCI-DAS6032 ................6 Overview: PCI-DAS6030 and PCI-DAS6032 features ..................6 Chapter 2 Installing the PCI-DAS6030 and PCI-DAS6032 ................... 7 What comes with your PCI-DAS6030 and PCI-DAS6032 shipment? ............... 7 Hardware ..................................7 Documentation .................................. 7 Optional components ................................ 7 Unpacking the hardware .............................
  • Page 5 Analog Input ..............................34 Accuracy ..................................35 Settling time ..................................36 Parametrics ..................................37 Noise performance ................................37 Analog output (PCI-DAS6030 only) ........................ 38 Analog output pacing and triggering ..........................39 Analog trigger ..............................39 Analog I/O calibration ............................40 Digital I/O ................................. 40 Interrupt Section ............................... 41 Counters ................................

  • Page 6: Preface

    Italic text is used for the names of manuals and help topic titles, and to emphasize a word or phrase. Where to find more information Additional information about PCI-DAS6030 and PCI-DAS6032 hardware is available on our website at www.mccdaq.com. You can also contact Measurement Computing Corporation by phone, fax, or email with specific questions.

  • Page 7: Introducing The Pci-Das6030 And Pci-Das6032

    ±1V, ±0.5V, ±0.2V, and ±0.1V. Unipolar input ranges are 0 to 10V, 0 to 5V, 0 to 2V, 0 to 1V, 0 to 0.5V, 0 to 0.2V and 0 to 0.1V. The input ranges are software-selectable. The PCI-DAS6030 and PCI-DAS6032 have eight lines of digital I/O. The PCI-DAS6030 also provides two digital-to-analog outputs.

  • Page 8: Installing The Pci-Das6030 And Pci-Das6032

    CDS-14-x  Signal termination and conditioning accessories MCC provides signal termination products for use with the PCI-DAS6030 and PCI-DAS6032. Refer to the "Field wiring, signal termination and conditioning" section on page 14 for a complete list of compatible accessory products.

  • Page 9: Unpacking The Hardware

    As with any electronic device, you should take care while handling to avoid damage from static electricity. Before removing the PCI-DAS6030 and PCI-DAS6032 from its packaging, ground yourself using a wrist strap or by simply touching the computer chassis or other grounded object to eliminate any stored static charge.

  • Page 10: Differential Input Mode

    PCI-DAS6030 & PCI-DAS6032 User's Guide Installing the PCI-DAS6030 and PCI-DAS6032 Differential input mode Eight analog input channels are available in differential input mode. The input signal is measured with respect to the low input, and is delivered through three wires: ...

  • Page 11: Signal Connections

    PCI-DAS6030 & PCI-DAS6032 User's Guide Installing the PCI-DAS6030 and PCI-DAS6032 Signal connections SCSI connector Board connectors, cables, accessory equipment Connector type Shielded SCSI 100 D-type Compatible cables C100HD50-x, unshielded ribbon cable. x = 3 or 6 feet (Figure 1) C100MMS-x, shielded round cable. x = 1, 2, or 3 meters (Figure 2)
  • Page 12 PCI-DAS6030 & PCI-DAS6032 User's Guide Installing the PCI-DAS6030 and PCI-DAS6032 8-channel differential mode pinout Signal Name Signal Name CTR2 OUT AUXIN5 / A/D PACER GATE CTR2 GATE AUXIN4 / D/A START TRIGGER CTR2 CLK AUXIN3 / D/A UPDATE AUXIN2 / A/D STOP TRIGGER...
  • Page 13 PCI-DAS6030 & PCI-DAS6032 User's Guide Installing the PCI-DAS6030 and PCI-DAS6032 16-channel single-ended mode pinout Signal Name Signal Name CTR2 OUT AUXIN5 / A/D PACER GATE CTR2 GATE AUXIN4 / D/A START TRIGGER CTR2 CLK AUXIN3 / D/A UPDATE AUXIN2 / A/D STOP TRIGGER...
  • Page 14 PCI-DAS6030 & PCI-DAS6032 User's Guide Installing the PCI-DAS6030 and PCI-DAS6032 Strain relief is stamped “Pins 1-50”. Pins 1-50 are on the long side of the “D” connector. The red stripe identifies pin # 1 Pins 51-100 are on the short side of Strain relief is the “D”...

  • Page 15: Daq-Sync Connector

    PCI-DAS6030 & PCI-DAS6032 User's Guide Installing the PCI-DAS6030 and PCI-DAS6032 DAQ-Sync connector DAQ-Sync connector and compatible cables Connector type 14-pin right-angle 100 mil box header Compatible cables MCC p/n CDS-14-x, 14 pin ribbon cable for board-to board DAQ-Sync connection; x = number of boards (Figure 3)

  • Page 16: Chapter 3 Functional Details

    Functional Details Basic architecture Figure shows a simplified block diagram of the PCI-DAS6030 and PCI-DAS6032. This board provides all of the functional elements shown in the figure. The System Timing and Control (STC) is the logical center for all DAQ, DIO, and DAC (if applicable) operations.

  • Page 17: Daq-Sync Signals

    The DAQ-Sync hardware provides the capability of triggering or clocking up to four slave boards from a master board to synchronize data input and/or output. The PCI-DAS6030 and PCI-DAS6032 boards provide the capability of inter-board synchronization between boards in the PCI-DAS6000 family. There are five trigger/strobes and a synchronizing clock provided on a 14-pin header.
  • Page 18 The master provides this clock to the slave boards so that all boards in the DAQ-sync- enabled system are timed from the same clock. Figure 4. Block diagram – PCI-DAS6030/32 Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 19: Daq Signal Timing

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details DAQ signal timing The DAQ timing signals are:  SCANCLK  A/D START TRIGGER  A/D STOP TRIGGER  STARTSCAN   A/D CONVERT  A/D PACER GATE  A/D EXTERNAL TIME BASE ...

  • Page 20: A/D Stop Trigger Signal

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details Rising Edge Polarity Falling Edge Polarity = 37.5 ns minimum Figure 7. A/D START TRIGGER input signal timing = 50 ns Figure 8. A/D START TRIGGER output signal timing The A/D START TRIGGER signal is also used to initiate pre-triggered DAQ operations (when you need to acquire data just before a trigger event).

  • Page 21: Startscan Signal

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details Rising Edge Polarity Falling Edge Polarity = 37.5 ns minimum Figure 10. A/D STOP TRIGGER input signal timing = 50 ns Figure 11. A/D STOP TRIGGER output signal timing STARTSCAN signal The STARTSCAN output signal indicates when a scan of channels has been initiated. You can program this signal to be available at any of the AUXOUT pins.

  • Page 22: A/D Convert Signal

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details A/D CONVERT signal The A/D CONVERT signal indicates the start of an A/D conversion. It is available through software selection as an input to any of the AUXIN pins (defaulting to AUXIN0) or the DAQ-Sync DS A/D CONVERT input and as an output to any of the AUXOUT pins.

  • Page 23: A/D Stop Signal

    Figure 17. A/D STOP signal timing ATRIG signal In addition to standard digital trigger features, the PCI-DAS6030 and PCI-DAS6032 also provide analog triggering capability. When using the analog trigger, acquisitions may be started and controlled via an analog signal. There are four trigger/gate modes available using the analog trigger feature: ...
  • Page 24 PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details Figure 18. ATRIG Circuit The next section includes a detailed description of each mode of operation. In each case, a ±2V triangle waveform is used as the ATRIG input source. The THRESH_HI is set to 1.0V and the THRESH_LO signal is set to -1.0V.
  • Page 25 PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details Trigger Below The acquisition will begin when ATRIG signal fist goes below the THRESH_LO level. This mode is non- retriggerable. Thresh_LO Trigger Acquired Data Figure 20. Trigger Negative Slope Gate Above Data acquisition is enabled whenever ATRIG goes above the THRESH_HI level. Acquisition is suspended whenever the ATRIG signal goes below the THRESH_HI level.
  • Page 26 PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details Gate Below Data acquisition is enabled whenever ATRIG goes below the THRESH_LO level. Acquisition is suspended whenever the ATRIG signal goes above the THRESH_LO level. This is a level-sensitive gating mode. Thresh_LO Trigger Acquired Data Figure 22.
  • Page 27 PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details Gate Positive Hysteresis Data acquisition is enabled whenever ATRIG goes below the THRESH_LO level. Acquisition is suspended whenever the ATRIG signal goes above the THRESH_HI level. The hysteresis level is set by THRESH_HI.

  • Page 28: Waveform Generation Timing Signals

    Thresh_HI Thresh_LO Trigger Acquired Data Figure 26. Gate Outside Window Waveform generation timing signals The signals that control the timing for the analog output functions on the PCI-DAS6030 are:  D/A START TRIGGER  D/A UPDATE  D/A EXTERNAL TIME BASE D/A START TRIGGER signal The D/A START TRIGGER signal is used to hold off output scans until after a trigger event.

  • Page 29: D/A Convert Signal

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details = 50 ns Figure 28. D/A START TRIGGER output signal timing D/A CONVERT signal The D/A CONVERT signal causes a single output update on the D/A converters. You can program the DAQ- Sync DS D/A UPDATE input or any AUXIN pin to accept the D/A CONVERT signal. It is also available as an output on any AUXOUT pin.

  • Page 30: General-Purpose Counter Signal Timing

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details General-purpose counter signal timing The general-purpose counter signals are:  CTR1 CLK  CTR1 GATE  CTR1 OUT  CTR2 CLK  CTR2 GATE  CTR2 OUT CTR1 CLK signal The CTR1 CLK signal can serve as the clock source for independent user counter 1. It can be selected through software at the CTR1 CLK pin rather than using the on-board 10 MHz or 100 kHz sources.

  • Page 31: Ctr1 Out Signal

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details CTR1 OUT signal This signal is present on the CTR1 OUT pin. The CTR1 OUT signal is the output of one of the two user’s counters in an industry-standard 82C54 chip. For detailed information on counter operations, refer to the data sheet on our WEB page at www.measurementcomputing.com/PDFmanuals/82C54.pdf.

  • Page 32: Ctr2 Out Signal

    PCI-DAS6030 & PCI-DAS6032 User's Guide Functional Details CTR2 OUT signal This signal is present on the CTR2 OUT pin. The CTR2 OUT signal is the output of one of the two user’s counters in an industry-standard 82C54 chip. For detailed information on counter operations, please refer to the data sheet on our web site at http://www.measurementcomputing.com/PDFmanuals/82C54.pdf.

  • Page 33: Calibrating The Board

    Chapter 4 Calibrating the Board Introduction You should calibrate the board (using the InstaCal utility) after the board has fully warmed up. The recommended warm-up time is 15 minutes. For best results, calibrate the board immediately before making critical measurements. The high resolution analog components on the board are somewhat sensitive to temperature.
  • Page 34 PCI-DAS6030 & PCI-DAS6032 User's Guide Calibrating the Board A similar method is used to calibrate the analog output components. A trim DAC is used to adjust the gain of the DAC. A separate DAC is used to adjust offset on the final output amplifier. The calibration circuits are duplicated for both analog outputs (see Figure 39).

  • Page 35: Chapter 5 Specifications

    Chapter 5 Specifications All specifications are subject to change without notice. Typical for 25 °C unless otherwise specified. Specifications in italic text are guaranteed by design. Analog Input Table 1. Analog input specifications Parameter Specification A/D converter Successive approximation type Resolution 16 bits, 1 in 65536 Maximum sample rate...

  • Page 36: Accuracy

    Averaged measurements assume averaging of 100 single-channel readings. Note 1: Each PCI-DAS6030 and PCI-DAS6032 is tested at the factory to assure the board's overall error does not exceed accuracy limits described in Table 2. Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...

  • Page 37: Settling Time

    PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Table 4. Relative accuracy – all values are (±) Range Relative Accuracy (µV) Single Point Averaged (Note 2) ±10 V 723.3 72.3 ±5 V 361.6 36.2 ±2 V 144.7 14.5 ±1 V 72.3 ±500 mV 42.2...

  • Page 38: Parametrics

    Any unused analog input channel should be connected to LLGND. Noise performance Table 8 summarizes the noise performance for the PCI-DAS6030 and PCI-DAS6032. Noise distribution is determined by gathering 50 K samples with inputs tied to ground at the user connector. Samples are gathered 100 kS/s sampling rate.

  • Page 39: Analog Output (Pci-Das6030 Only)

    1.430 0 to 10 V 0.0062 0.0001 1.201 Each PCI-DAS6030 is tested at the factory to ensure that the overall error does not exceed the values specified in Table 10. Table 12. Relative accuracy specifications Range Relative Accuracy All ranges ±0.5 LSB, typical...

  • Page 40: Analog Output Pacing And Triggering

    PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Analog output pacing and triggering Table 13. AO pacing and triggering specifications Parameter Specification Internal counter – ASIC. Selectable time base: DAC pacing  Internal 40 MHz, 50 ppm stability. (software programmable) External Source via AUXIN<5:0>, SW selectable.

  • Page 41: Analog I/O Calibration

    PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Analog I/O calibration Table 15. Analog I/O calibration specifications Parameter Specification Recommended warm-up time 15 minutes Calibration Auto-calibration, calibration factors for each range stored on board in non-volatile RAM. Onboard calibration reference DC Level: 5.000 V ± 1 mV. Actual measured values stored in EEPROM.

  • Page 42: Interrupt Section

    PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Interrupt Section Table 17. Interrupt specifications Parameter Specification Interrupts PCI INTA# - mapped to IRQn via PCI BIOS at boot-time Interrupt enable Programmable through PLX9080 ADC interrupt sources DAQ_ACTIVE: Interrupt is generated when a DAQ sequence is active.

  • Page 43: Configurable Auxin<5:0>, Auxout<2:0> External Trigger/Clocks

    PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Configurable AUXIN<5:0>, AUXOUT<2:0> external trigger/clocks The PCI-DAS6030 and PCI-DAS6032 provide nine user-configurable trigger/clock pins available at the 100-pin I/O connector. Of these, six are configurable as inputs while three are configurable as outputs. Table 19. Configurable triggers/clocks specifications...

  • Page 44: Power Consumption

    Table 21. Power consumption specifications Parameter Specification +5 V PCI-DAS6030/32: 1.3 A typical, 1.5 A max Does not include power consumed through the I/O connector. +5 V available at I/O connector 1 A max, protected with a resettable fuse Environmental Table 22.

  • Page 45: Scsi Connector

    PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications SCSI connector Table 26. Main connector specifications Parameter Specification Connector type Shielded SCSI 100 D-type Compatible cables C100HD50-x, unshielded ribbon cable. x = 3 or 6 feet C100MMS-x, shielded round cable. x = 1, 2, or 3 meters...
  • Page 46 PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Table 27. 8-channel differential mode pinout Signal Name Signal Name LLGND CH0 IN HI CH0 IN LO CH1 IN HI CH1 IN LO CH2 IN HI CH2 IN LO CH3 IN HI CH3 IN LO...
  • Page 47 PCI-DAS6030 & PCI-DAS6032 User's Guide Specifications Table 28. 16-channel single-ended mode pinout Signal Name Signal Name LLGND CH0 IN CH8 IN CH1 IN CH9 IN CH2 IN CH10 IN CH3 IN CH11 IN CH4 IN CH12 IN CH5 IN CH13 IN...

  • Page 48: Declaration Of Conformity

    Category: Electrical equipment for measurement, control and laboratory use. Measurement Computing Corporation declares under sole responsibility that the product PCI-DAS6030 and PCI-DAS6032 to which this declaration relates is in conformity with the relevant provisions of the following standards or other documents: EC EMC Directive 2004/108/EC: General Requirements, EN 61326-1:2006 (IEC 61326-1:2005).
  • Page 49 Measurement Computing Corporation 10 Commerce Way Suite 1008 Norton, Massachusetts 02766 (508) 946-5100 Fax: (508) 946-9500 E-mail: info@mccdaq.com www.mccdaq.com Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com...
