3. Verify that "PCMCIA adapters" is listed in the Device Manager. If you don't find this entry, or if the
properties for the adapter indicate "this device is not working," you need to install or update your PCMCIA
adapter drivers.
If the PCMCIA adapter is not listed, use the
o
If the PCMCIA adapter is listed but not working, use the
o
appropriate drivers.
After performing the update procedure, reboot your PC and insert your card again.

Connecting the board for I/O operations

Connectors, cables – main I/O connector
The table below lists the board connector, applicable cables, and compatible accessory products.
Connector type
Compatible cables
Compatible accessory
products
Pin out – main I/O connector
Figure 3 shows a PC-CARD-D24/CTR3 case looking into the male mini-connector. The connector is
mechanically keyed to insure that the cable is inserted correctly.
Board connector, cables, and accessory equipment
50-pin connector
CPCC-50F-39: 50-pin Micro connector to 50-pin female IDC, one-meter cable (39 inches).
CPCC-50M-4: 50-pin Micro connector to 50-pin male IDC, 4 inch adapter cable.
and
C50FF-x: 50-pin IDC female to female cable. x = length in feet.
CIO-MINI50
CIO-SPADE50
CIO-TERM100
SCB-50
SSR-RACK24
CIO-ERB24
CIO-SERB24

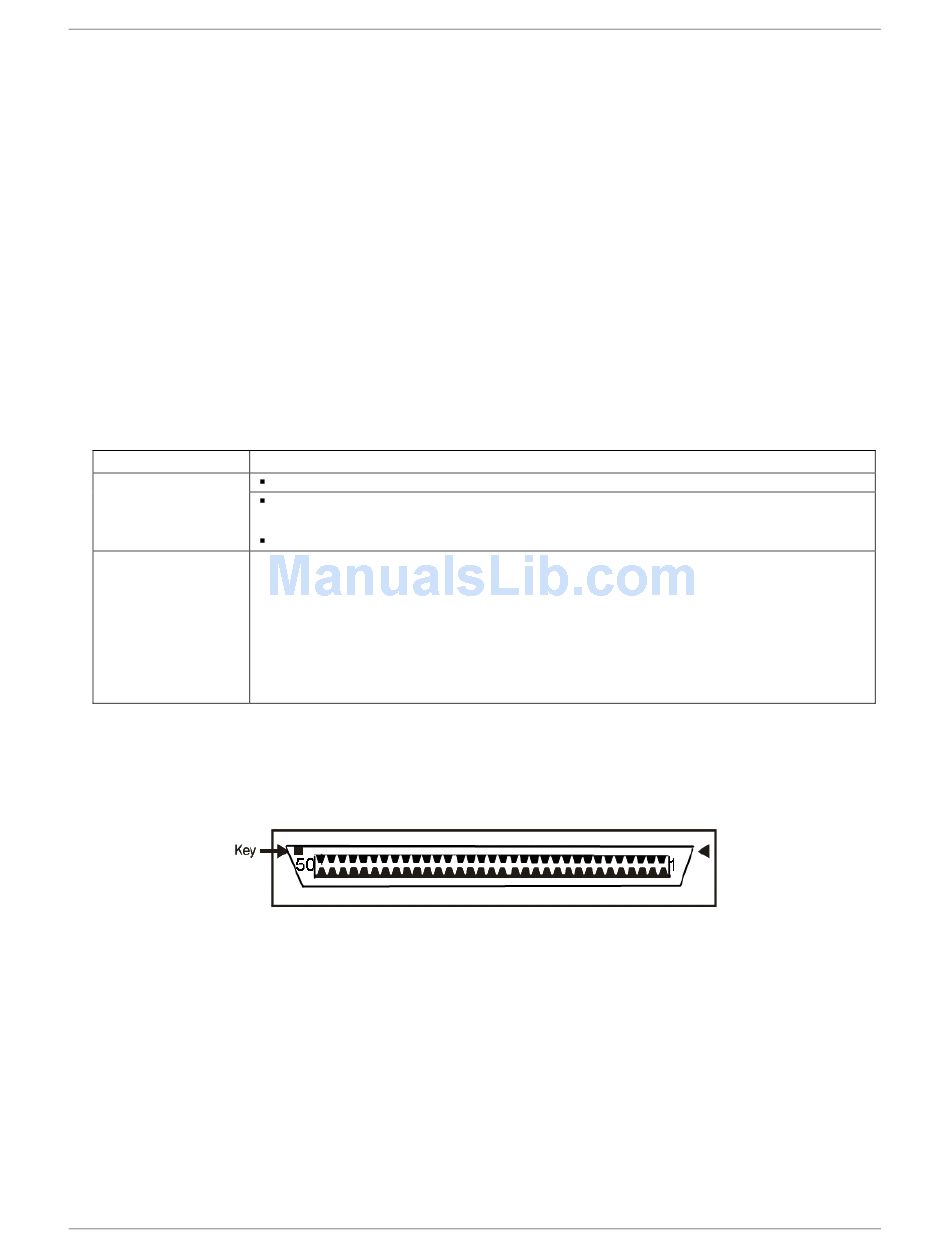

Figure 3. 50-pin I/O mini-connector
Add New Hardware Wizard
Update Driver
10
Installing the PC-CARD-D24/CTR3
to install PCMCIA support.
option to install the
