Procedure
1. If applicable, open the rack door at the rear of the system unit that you are servicing.
2. Identify the system unit that you are servicing in the rack.
3. Label and disconnect the power cords from the system unit. See Figure 36.
Notes:
v This system might be equipped with two or more power supplies. If the removing and replacing
procedures require the system power to be turned off, ensure that all the power sources to the
system are disconnected.
v The power cord (B) is fastened to the system with hook-and-loop fastener (A). If you are placing
the system in a service position after you disconnect the power cords, ensure that you unstrap the
fastener.

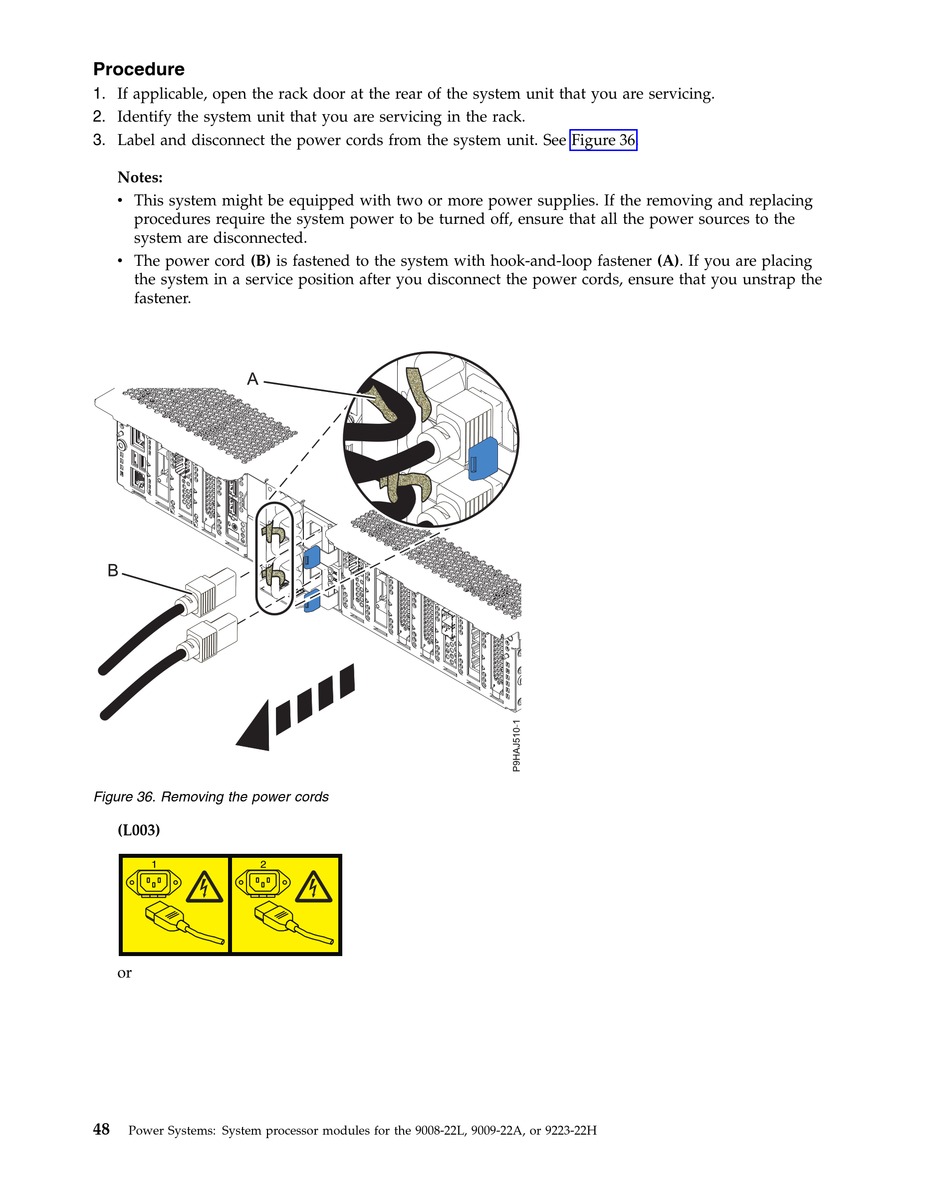

Figure 36. Removing the power cords
(L003)
1
or
48
Power Systems: System processor modules for the 9008-22L, 9009-22A, or 9223-22H
2
