a. Ensure that the removal tool (A) is in the open position as shown in Figure 6. The middle ring (B)
must be pushed down and blue tabs (C) must be turned inward.

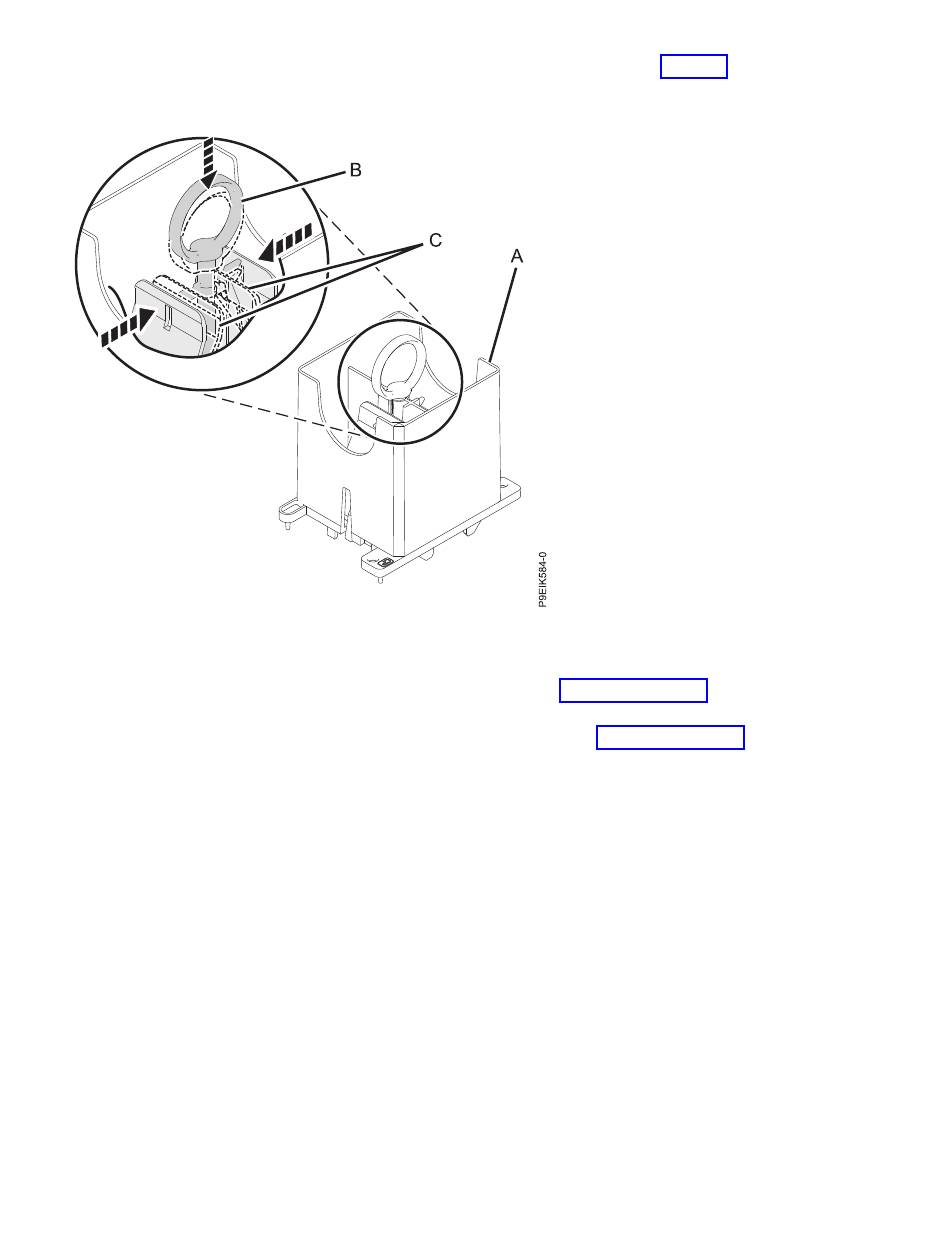

Figure 6. Ensuring that the removal tool is in the open position
b. Align the tool over the system processor module. Ensure that the beveled edge on the tool aligns
with the beveled edge of the processor (C) as shown in Figure 7 on page 8.
c. Lower the tool over the system processor module. Ensure that the two guide pins (A) insert into
the alignment holes (B) on each side of the tool as shown in Figure 7 on page 8.
