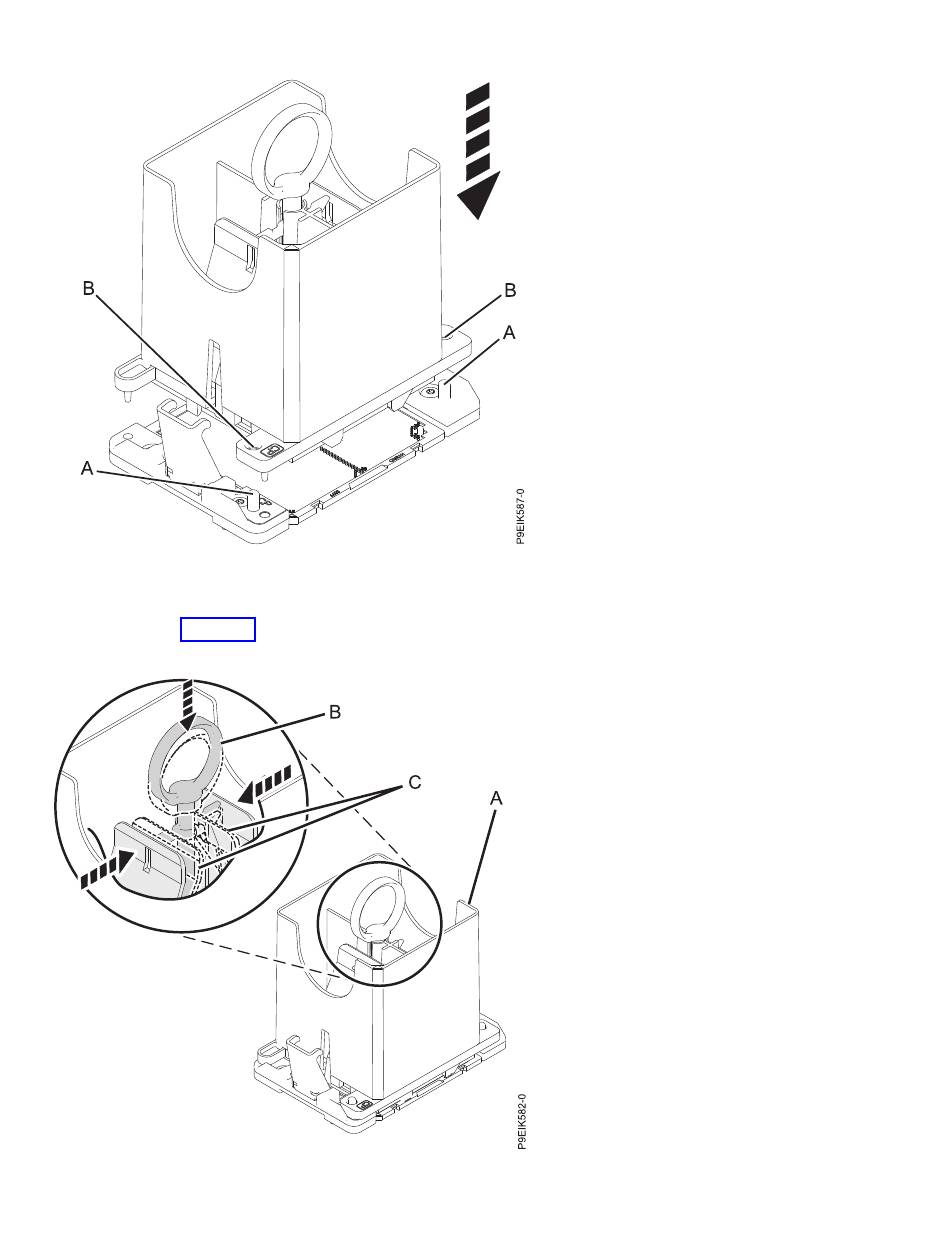

Figure 15. Installing the system processor module
d. Open the latches that hold the system processor module in the supplied removal tool (A) as
shown in Figure 16. Push down on the ring (B) while pressing in on the tabs (C).
Figure 16. Removing the system processor module tool
16
Power Systems: System processor modules for the 9008-22L, 9009-22A, or 9223-22H
