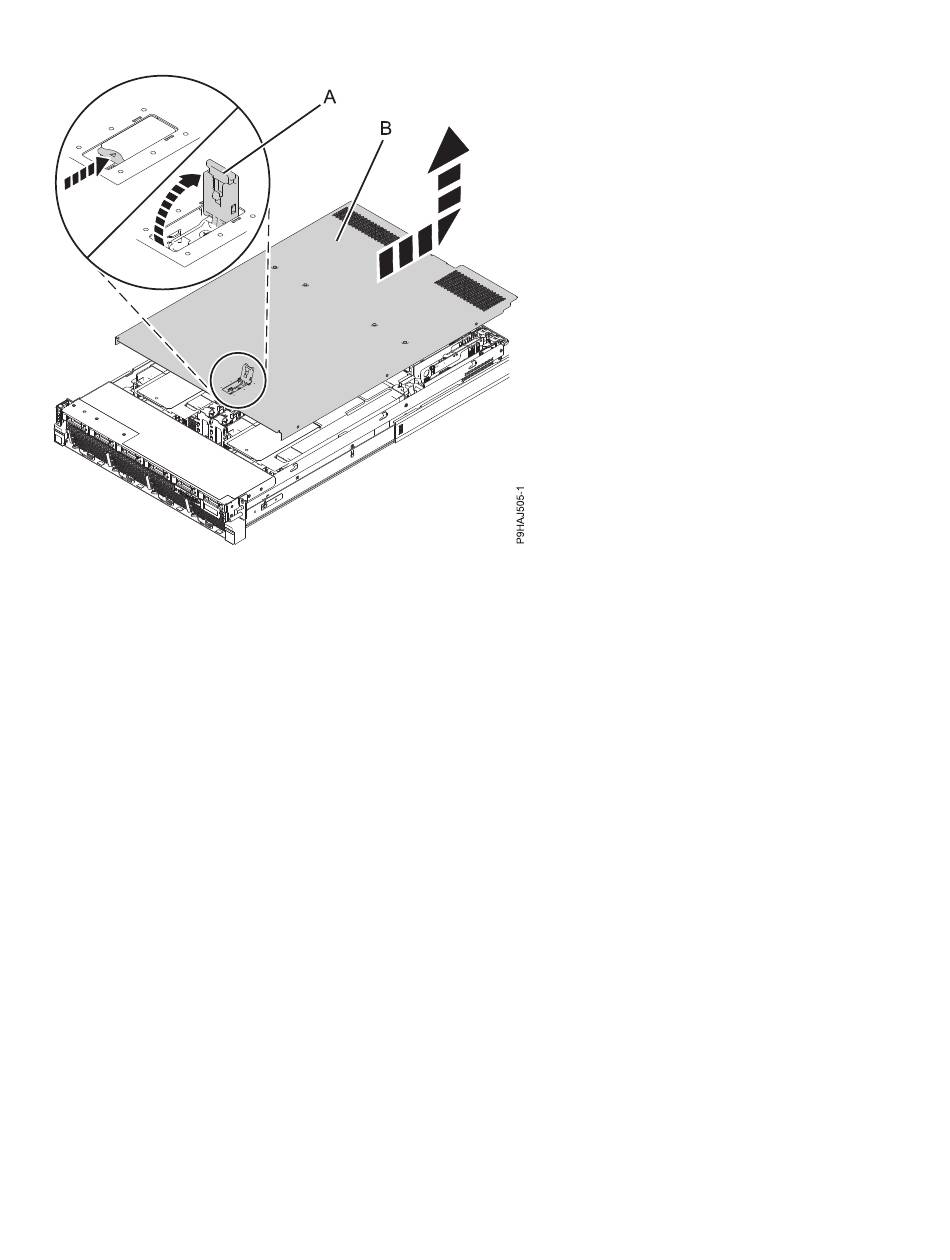

Figure 30. Removing the service access cover
Installing the service access cover on a rack-mounted 9008-22L,
9009-22A, or 9223-22H system
Use this procedure to install the service access cover on a rack-mounted IBM Power System L922
(9008-22L), IBM Power System S922 (9009-22A), or IBM Power System H922 (9223-22H) server.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Slide the service access cover (A) onto the system unit.
3. Close the release latch (B) by pushing it in the direction shown.
42
Power Systems: System processor modules for the 9008-22L, 9009-22A, or 9223-22H
