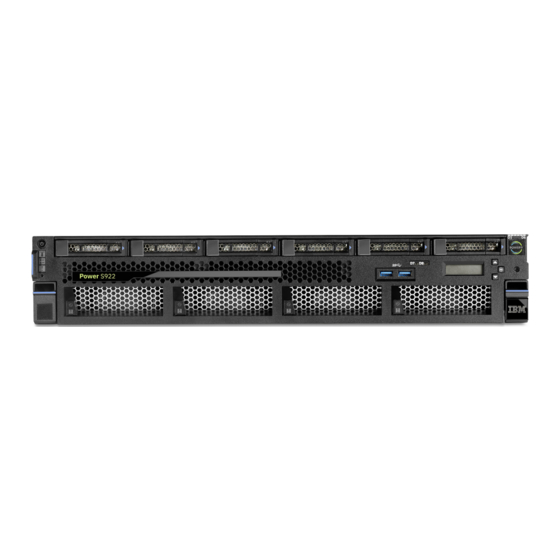

IBM 9223-22S Manual

Hide thumbs Also See for 9223-22S:
Table of Contents

Advertisement

Quick Links

Download this manual
Power Systems
System backplane for the 5105-22E,
9008-22L, 9009-22A, 9009-22G,
9223-22H, or 9223-22S
IBM

Advertisement

Table of Contents
loading

Related Manuals for IBM 9223-22S

Summary of Contents for IBM 9223-22S

  • Page 1 Power Systems System backplane for the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S...
  • Page 2 Note Before using this information and the product it supports, read the information in “Safety notices” on page v, “Notices” on page 125, the IBM Systems Safety Notices manual, G229-9054, and the IBM Environmental Notices and User Guide, Z125–5823. ®...

  • Page 3: Table Of Contents

    Preparing the system..........................1 Removing the system backplane......................12 Replacing the system backplane......................67 Preparing the system for operation....................115 Notices......................125 Accessibility features for IBM Power Systems servers................126 Privacy policy considerations ......................... 127 Trademarks..............................127 Electronic emission notices........................127 Class A Notices...........................127 Class B Notices...........................131...

  • Page 5: Safety Notices

    Das Produkt ist nicht für den Einsatz an Bildschirmarbeitsplätzen im Sinne § 2 der Bildschirmarbeitsverordnung geeignet. Laser safety information IBM servers can use I/O cards or features that are fiber-optic based and that utilize lasers or LEDs. Laser compliance IBM servers may be installed inside or outside of an IT equipment rack.
  • Page 6 – For racks with a DC power distribution panel (PDP), connect the customer’s DC power source to the PDP. Ensure that the proper polarity is used when attaching the DC power and DC power return wiring. • Connect any equipment that will be attached to this product to properly wired outlets. •...
  • Page 7 • Rack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top of rack-mounted devices. In addition, do not lean on rack mounted devices and do not use them to stabilize your body position (for example, when working from a ladder). •...
  • Page 8 • (For fixed drawers.) This drawer is a fixed drawer and must not be moved for servicing unless specified by the manufacturer. Attempting to move the drawer partially or completely out of the rack might cause the rack to become unstable or cause the drawer to fall out of the rack. (R001 part 2 of 2) CAUTION: Removing components from the upper positions in the rack cabinet improves rack stability during relocation.
  • Page 9 DANGER: Rack-mounted devices are not to be used as shelves or work spaces. Do not place objects on top of rack-mounted devices. In addition, do not lean on rack-mounted devices and do not use them to stabilize your body position (for example, when working from a ladder). Stability hazard: •...
  • Page 10 DANGER: Multiple power cords. The product might be equipped with multiple AC power cords or multiple DC power cables. To remove all hazardous voltages, disconnect all power cords and power cables. (L003) (L007) CAUTION: A hot surface nearby. (L007) x Power Systems: System backplane...
  • Page 11 Exchange only with the IBM-approved part. Recycle or discard the battery as instructed by local regulations. In the United States, IBM has a process for the collection of this battery. For information, call 1-800-426-4333. Have the IBM part number for the battery unit available when you call.
  • Page 12 • LIFT TOOL intended for use to assist, lift, install, remove units (load) up into rack elevations. It is not to be used loaded transporting over major ramps nor as a replacement for such designated tools like pallet jacks, walkies, fork trucks and such related relocation practices. When this is not practicable, specially trained persons or services must be used (for instance, riggers or movers).
  • Page 13 Freewheeling will cause uneven cable wrapping around winch drum, damage cable, and may cause serious injury. • This TOOL must be maintained correctly for IBM Service personnel to use it. IBM shall inspect condition and verify maintenance history before operation. Personnel reserve the right not to use TOOL if inadequate.
  • Page 14 xiv Power Systems: System backplane...

  • Page 15: System Backplane

    9009-22A, 9009-22G, 9223-22H, or 9223-22S. If your system is managed by the Hardware Management Console (HMC), use the HMC to repair a part in the system. For instructions, see Repairing a part by using the HMC (www.ibm.com/support/ knowledgecenter/POWER9/p9haj/p9haj_hmc_repair.htm). If you do not have an HMC, use the following procedures to remove and replace the system backplane.
  • Page 16 • Attach an electrostatic discharge (ESD) wrist strap to the front ESD jack, to the rear ESD jack, or to an unpainted metal surface of your hardware to prevent the electrostatic discharge from damaging your hardware. • When you use an ESD wrist strap, follow all electrical safety procedures. An ESD wrist strap is used for static control.
  • Page 17 Figure 2. Removing the power cords (L003) Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 3...
  • Page 18 4 Power Systems: System backplane...
  • Page 19 Insert the inner cable management arm tab (A) into the outer mounting bracket (B) until it clicks into place as shown. The inner mounting bracket (C) is not used on the left side. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 5...
  • Page 20 Figure 3. Closing the cable management arm 12. Disconnect the cable management arm from the system by pressing the inner cable management arm tab (A) while lightly squeezing the inner and outer cable management arms together. Then, secure the inner cable management arm to the outer cable management arm with a hook and loop fastener.
  • Page 21 Figure 4. Cable management arm parts 13. Hold the indentations (A) on the front cover and pull it away from the system. See Figure 5 on page Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 7...
  • Page 22 Figure 5. Removing the front cover 14. Open the side latches (A) and pull the latches to slide the system unit fully into the service position, until the slides click and hold the system unit securely. Ensure that the screws inside the latches are not secured to the rack.
  • Page 23 Attention: Operating the system without the service access cover on for more than 10 minutes when the system power is turned on might damage the system components. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 9...
  • Page 24 Figure 7. Removing the service access cover 17. To activate the identify LED for the faulty part, press and hold push-button (A) on the trusted platform module card as shown in the following figure. Verify that the LED (B) is lit, which indicates that sufficient power exists for the identify LED. If the LED (B) is not lit, use the location code to find the physical location by using the service label.
  • Page 25 Figure 8. Activating the identify LED 18. Look for the amber LED of the system backplane. See Figure 9 on page 12. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 11...

  • Page 26: Removing The System Backplane

    Figure 9. Service indicator LEDs Removing the system backplane from the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S Follow these steps to remove the system backplane from a server to replace a failing part or as part of another service procedure.
  • Page 27 Label and disconnect all external cables that are attached to the adapters. b) Record the slot number and location of each adapter being removed. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 13...
  • Page 28 Figure 11. PCIe adapter slot locations in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S system c) Set the adapter latch (A) in the target slot to the open position by rotating the latch (A) in the direction that is shown in the following figure.
  • Page 29 Figure 12. Removing an adapter from the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S system e) Place the adapter on an approved ESD surface. f) Repeat steps “3.a” on page 13 through “3.e” on page 15 for all of the PCIe adapters.
  • Page 30 Figure 13. Removing the rear USB cable b) At the rear of the system, open the adapter latch (B) and lift the USB cable housing (C) as shown in the following figure. 16 Power Systems: System backplane...
  • Page 31 Route the cable over the side of the system and out of the way to provide clearance for removing the backplane. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 17...
  • Page 32 Figure 15. Disconnecting the front USB cable and routing it over the side of the system 6. Remove the vital product data (VPD) card: a) Grasp the VPD card by the plastic housing as shown in the following figure. b) Pull the VPD card out of its slot in location P1-C13 on the system backplane. See the following figure.
  • Page 33 Pull the service processor card straight up from the slot by holding the card bracket (B) and the tailstock. c) Place the service processor card on an appropriate ESD surface. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 19...
  • Page 34 Figure 17. Removing the service processor card from slot P1-C1 8. Remove PCIe adapter dividers: a) Place your finger on the top edge of the PCIe adapter divider (A) to hold the divider steady as shown in the following figure. Figure 18.
  • Page 35 (C) clears the groove in the system backplane, lift the divider to remove it from the system. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 21...
  • Page 36 Figure 19. Sliding the PCIe divider out of the system d) Place the adapter divider in a clean area. e) Repeat steps “8.a” on page 20 through “8.d” on page 22 for all of the PCIe adapter dividers. 9. Remove the RAID adapter or adapters, if present. Otherwise, continue with the next step. a) Locate the RAID adapter you want to remove.
  • Page 37 Ensure that the rear SAS cable does not catch on any components while you are lifting the rear SAS adapter out of the slot. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 23...
  • Page 38 Figure 21. Removing the rear SAS cable adapter d) Place the rear SAS cable and connector on an appropriate ESD surface. e) Identify and label the front SAS cable or cables that are connected to the adapter you want to remove.
  • Page 39 SAS cable (or cables) out of the slot. Ensure that the front SAS cable does not catch on any components while you are lifting the SAS RAID adapter out of the slot. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 25...
  • Page 40 Figure 23. Removing the SAS RAID adapter h) Place the SAS RAID adapter on an appropriate ESD surface. i) If a second SAS RAID internal adapter is present, repeat steps “9.a” on page 22 through “9.h” on page 26. 10. Remove the NVMe M.2 carrier cards, if present. Otherwise, continue with the next step. a) Twist the screws (A) counterclockwise to release the NVMe M.2 carrier card.
  • Page 41 U.2 pass-thru cards. Record how the plugs and jacks are connected. Disconnect the NVMe cables from the NVMe drive backplane by pressing the cable latch and unplugging the cable as shown in the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 27...
  • Page 42 Figure 25. Disconnecting the NVMe cables from the NVMe drive backplane b) Twist the screws (A) counterclockwise to release the NVMe U.2 pass-thru card. Lift both the NVMe U.2 pass-thru card and the NVMe cable out of the slot as shown in the following figure. 28 Power Systems: System backplane...
  • Page 43 The levers must be opened simultaneously, so that the NVDIMM lifts straight up. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 29...
  • Page 44 Figure 27. Removing a NVDIMM c) Hold the NVDIMM by the edges and pull it out of the system. d) Press latch (A) and disconnect the BPM cable from its connector on the NVDIMM. See the following figure. 30 Power Systems: System backplane...
  • Page 45 Provide slack in the BPM cable by pulling the BPM cable forward about 5 cm (2 in) in the direction shown in Figure 29 on page 32. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 31...
  • Page 46 Figure 29. Pulling the BPM cable forward. c) Disconnect the drive backplane power cable. See the following figure. 32 Power Systems: System backplane...
  • Page 47 Figure 30. Disconnecting the drive backplane power cable. d) Open the BPM holder lever (A). See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 33...
  • Page 48 Figure 31. Opening the BPM holder lever e) Unlock the BPM handle (B) by pressing the handle release latch (A) in the direction that is shown, and pulling out the handle toward you. See the following figure. 34 Power Systems: System backplane...
  • Page 49 Refer to Figure 34 on page 36. Rotate the BPM on its longer axis to expose the cable connectors at the bottom of the BPM. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 35...
  • Page 50 Figure 34. Rotating the BPM h) Label BPM cables. Press the release latch (A) on both BPM cables and disconnect both cables from the BPM. See the following figure. 36 Power Systems: System backplane...
  • Page 51 Figure 35. Disconnecting the BPM cables i) Remove the BPM. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 37...
  • Page 52 Figure 36. Removing the BPM j) Place the BPM on an appropriate ESD surface. k) Carefully remove the BPM cable from the cutout (A) in the opening below the BPM tray and through the cutout (B) in the bulkhead. See the following figure. 38 Power Systems: System backplane...
  • Page 53 14. Remove the internal drives, if present. Otherwise, continue with the next step. a) Record the location of both of the internal drives. b) Open the drive holder lever (A). Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 39...
  • Page 54 Figure 38. Opening the drive holder lever c) Unlock the drive handle (B) by pressing the handle release latch (A) in the direction that is shown, and pulling out the handle toward you. 40 Power Systems: System backplane...
  • Page 55 Using the drive handle, pull the drive about 1 in (2.5 cm) from the disk drive backplane. e) Lift the drive from the system. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 41...
  • Page 56 Figure 40. Lifting the drive f) Place the drive on an appropriate ESD surface. g) Close the drive holder lever. h) Repeat steps “14.b” on page 39 through “14.g” on page 42 to remove the other internal drive. Note: The internal slots do not have fillers. 15.
  • Page 57 (A) in the direction that is shown, and pulling out the handle toward you. If the handle is not all the way out, the drive cannot slide out of the system. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 43...
  • Page 58 Figure 42. Unlocking and removing the drive b) Using the drive lever, pull the drive about 2.5 cm (1 in) from the system. Pull the drive out far enough to prevent it from interfering with the removal of the disk drive backplane. c) Repeat “16.a”...
  • Page 59 Carefully unscrew the three captive thumbscrews (A) of the disk drive backplane (B) as shown in the following figure until fully loose. If needed, use a Phillips screwdriver to loosen the screws. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 45...
  • Page 60 Figure 44. Loosening the disk drive backplane screws d) Pull the disk drive backplane (B) away from the chassis using the thumbscrews, then lift up the disk drive backplane from the chassis. e) Place the disk drive backplane on an appropriate ESD surface. 19.
  • Page 61 Unscrew the three captive thumbscrews (A) of the NVMe drive backplane (B) as shown in the following figure until fully loose. If needed, use a Phillips screwdriver to loosen the screws. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 47...
  • Page 62 Figure 46. Loosening the NVMe drive backplane screws d) Pull the NVMe drive backplane (B) away from the chassis that uses the thumbscrews, then lift the NVMe drive backplane from the chassis. See the previous figure. 20. Remove the fans enough to prevent them from interfering with the removal of the backplane: a) Put your thumb against the front of the latch, (A) as shown in the following figure, and put your index finger against the rear of the latch.
  • Page 63 As you face the chassis, the connector is in the left front corner. You can pull the cable from the system backplane by using the cable cover near the plug. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 49...
  • Page 64 Figure 48. Disconnecting the control panel cable from the system backplane b) Route the cable over the side of the system and out of the way to provide clearance for removing the backplane. See the following figure. 22. Disconnect the control panel display cable from the system backplane: a) Unplug the control panel display cable from the system backplane as shown in the following figure.
  • Page 65 Loosen the heat sink actuation screw by turning the supplied hex key counterclockwise (A). Loosen the screw until it moves freely. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 51...
  • Page 66 Figure 50. Removing the heat sink b) Grip the heat sink (B) on opposing sides and remove the heat sink by lifting it upward. Set the heat sink aside with the module side facing upward. Note: If you plan to remove dust or debris from the heat sink, this operation must be performed in another room that is greater than 7.6 m (24.9 ft) away from the work area.
  • Page 67 Ensure that the removal tool (A) is in the open position as shown in the following figure. The middle pin (B) must be pushed down and blue tabs (C) must be turned inward. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 53...
  • Page 68 Figure 52. Ensuring the removal tool is in the open position d) Lower the tool over the system processor module by ensuring the two guide pins (A) are inserted into the alignment holes (B) on each side of the tool. Ensure that the chamfered edge on the tool aligns with the chamfered edge of the processor (C).
  • Page 69 Make sure that both of the tool jaws are locked onto the system processor module by pushing down on the tool. Important: Do not press the blue release tabs until directed to do so later. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 55...
  • Page 70 Figure 54. Locking the system processor module into the tool f) Hold the outside of the tool and use it to lift the system processor module from the socket. Lift the tool upward slowly to ensure that the jaws are fully engaged with the system processor module. Ensure that the system processor module does not disengage and fall back into the socket of the system processor module.
  • Page 71 Note: To prevent the system processor module from falling, pull up on the round lever before you place the tool on the system processor module tray. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 57...
  • Page 72 Figure 56. Releasing the system processor module from the tool h) Place the cover on the system processor module tray. i) If your system has a second system processor module, repeat steps “25.a” on page 53 through “25.h” on page 58 to remove the other system processor module. 26.
  • Page 73 See the following figure. Notes: • You might find it helpful to use a magnetic screwdriver. • Do not remove the silver Torx screws. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 59...
  • Page 74 Figure 58. System backplane screw locations b) Using a Phillips screwdriver, unscrew and remove the two screws (B) that attach the backplane to the power supply cage. See the following figure. c) Using a Phillips screwdriver, unscrew and remove the six screws (C) that attach the backplane to the sides of the system chassis.
  • Page 75 Tilt the system backplane so that the front end is high and the back end is low as you continue to lift the system backplane out of the chassis. When the system backplane catches on the tabs (A) Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 61...
  • Page 76 on the power supply cage, slide the system backplane forward until it clear the tabs. Then, lift the system backplane completely out of the chassis. See the following figure. Figure 61. Lifting the system backplane out of the chassis g) Place the system backplane on an appropriate ESD surface. 28.
  • Page 77 Identify the corresponding location on the new system backplane and ensure that the locking tabs are open. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 63...
  • Page 78 Figure 63. Replacing a memory module d) Press the memory module or filler straight down, firmly into the slot, until the locking tabs lock into place. See the previous figure. e) Repeat “29.a” on page 62 through “29.d” on page 64 for the remaining memory modules and fillers.
  • Page 79 Grasp the TPM card by the plastic housing as shown in the following figure. b) Pull the TPM card out of its slot in location P1-C14 on the system backplane. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 65...
  • Page 80 Figure 65. Removing the TPM card c) Insert the TPM card into its slot in location P1-C14 on the new system backplane as shown in the following figure. 66 Power Systems: System backplane...

  • Page 81: Replacing The System Backplane

    Push the TPM card into place until it is fully seated in the new system backplane. Replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S Follow these steps to replace the system backplane. About this task Procedure 1.
  • Page 82 Figure 67. Grasping the system backplane and lowering it into the chassis b) Tilt the backplane so that the front end is high and the back end is low as you continue to lower the backplane into the chassis. When the backplane catches on the tabs (A) on the power supply cage, lower the front end enough so that it clears the tabs.
  • Page 83 Note: Slide the system backplane carefully. There is just enough space for the power connectors to clear the flange on the power supply cage (C). Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 69...
  • Page 84 Figure 69. Sliding the backplane towards the rear of the system e) Using a Phillips screwdriver, replace and screw in the six screws (C) that attach the backplane to the sides of the system chassis. See the following figure. Notes: •...
  • Page 85 Blow small bursts of air from the center toward the sides of the socket, as shown the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 71...
  • Page 86 Figure 72. Removing dust and debris from the system processor socket b) If necessary, take the cover off of the system processor module tray. c) Hold the sides of the tool with system processor module and carefully lift the tool out of the system processor module tray.
  • Page 87 Open the latches that hold the system processor module in the supplied removal tool (A) as shown in the following figure. Push down on the ring (B) while pressing in on the tabs (C). Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 73...
  • Page 88 Figure 74. Removing the system processor module tool f) Lift the tool off the system processor module. g) Repeat “5.a” on page 71 through “5.f” on page 74 for the other system processor module. 6. Replace the thermal interface material (TIM) and heat sinks: a) Using the tweezers, move the old processor's TIM from the clean, dry surface and center it onto the new system processor module.
  • Page 89 Figure 75. Moving the TIM onto the system processor module b) Place the heat sink on the TIM as shown in the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 75...
  • Page 90 Figure 76. Installing the heat sink on the TIM c) Ensure that the heat sink load arms are engaged as shown by (A) in the following figure. d) Tighten the center load screw clockwise by using the supplied hex key as shown by (B) in the following figure until a firm stop is reached.
  • Page 91 “6.d” on page 76 to replace the other TIM and heat sink. 7. Reconnect the control panel display cable to the system backplane as shown in the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 77...
  • Page 92 Figure 78. Connecting the control panel display cable to the system backplane 8. Reconnect the control panel cable to the system backplane as shown in the following figure. 78 Power Systems: System backplane...
  • Page 93 Rotate the fan handle (A) in the direction shown, and then press the handle until the latch locks in place. See the following figure. c) Repeat “9.a” on page 79 through “9.b” on page 79 for the other fans. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 79...
  • Page 94 Figure 80. Replacing a fan in the system 10. Replace the disk drive backplane: • If you have a base function disk drive backplane, continue with step “11” on page 80. • If you have a NVMe drive backplane, continue with step “12” on page 82. 11.
  • Page 95 Connect the power cable to the system backplane only. Push the connectors in until the latch clicks. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 81...
  • Page 96 Figure 82. Reconnecting the signal cable and the power cable 12. Replace the NVMe drive backplane: a) The chassis has four alignment pins (B) to secure the NVMe drive backplane (A). Insert the NVMe drive backplane as shown in the following figure. Ensure that the alignment pins fit through the holes in the NVMe drive backplane.
  • Page 97 Connect the power cable to the system backplane only. Push the connectors in until the latch clicks. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 83...
  • Page 98 Figure 84. Reconnecting the signal cable and the power cable 13. Replace the front drives: a) Support the drive by the top and bottom edge as you slide the drive all the way into the system. b) Push the drive bay handle (A) in until it locks. 84 Power Systems: System backplane...
  • Page 99 The bottoms of the trays have a hook that slides into a support. Ensure that hook slides under the edge of the support. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 85...
  • Page 100 Figure 86. Replacing the drive trays b) Slide the drive tray forward and align the screws with their holes. c) Tighten the two screws (A) at the middle of the drive tray. d) Tighten the two screws (B) at the front of the drive tray. e) Repeat steps “14.a”...
  • Page 101 Unlock the BPM handle (B) by pressing the handle release latch (A) in the direction that is shown, and pulling out the handle toward you. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 87...
  • Page 102 Figure 88. Unlocking the BPM handle e) Lower the BPM into the drive tray as shown in the following figure. 88 Power Systems: System backplane...
  • Page 103 Using your cable labels, connect both BPM cables to the BPM as shown in the following image. The cables are routed through the cutout in the BPM. Push the BPM cables in until the connector latches click. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 89...
  • Page 104 Figure 90. Connecting the BPM cable h) Rotate the BPM back down into the BPM tray. i) Slide the BPM forward by using the drive handle. j) Push BPM handle (A) until the BPM handle locks as shown in the following figure. 90 Power Systems: System backplane...
  • Page 105 Figure 91. Locking the BPM handle k) Close the BPM holder lever (A) over the BPM. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 91...
  • Page 106 Figure 92. Closing the BPM holder lever l) Reconnect the drive backplane power cable by pushing the cable in until the latch clicks. See the following figure. 92 Power Systems: System backplane...
  • Page 107 Figure 93. Reconnecting the drive backplane power cable m) Remove excess slack by pulling the BPM cable in the direction shown. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 93...
  • Page 108 Figure 94. Pulling the BPM to remove cable slack n) If your system has a second BPM, repeat steps “15.b” on page 86 through “15.m” on page 93 for the other BPM and BPM cable. 16. Using your labels, replace the internal drives into their trays, if present. Otherwise, continue with the next step.
  • Page 109 Figure 95. Unlatching the drive handle b) Lower the drive into the drive tray. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 95...
  • Page 110 Figure 96. Lowering the drive into the drive tray c) Slide the drive forward by using the drive handle until it contacts the disk drive backplane. d) Push drive handle (A) until the drive is fully seated and the drive handle locks. 96 Power Systems: System backplane...
  • Page 111 Figure 97. Locking the drive handle e) Close the drive holder lever (A) over the drive. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 97...
  • Page 112 Figure 98. Closing the drive holder lever f) Repeat steps “16.a” on page 94 through “16.e” on page 97 for the second internal drive. 17. Replace the non-volatile dual in-line memory modules (NVDIMMs), if present. Otherwise, continue with the next step. a) Grasp the NVDIMM along its edges and align it with the slot.
  • Page 113 Ensure that the locking tabs of the NVDIMM connector are open. Slowly press the NVDIMM straight down, firmly into the slot, until the locking tabs lock into place. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 99...
  • Page 114 Figure 100. Replacing an NVDIMM Note: It is important the BPM cable is routed correctly to allow for proper installation of the air baffles. d) Repeat steps “17.a” on page 98 through “17.c” on page 99 for any additional NVDIMMs. 18.
  • Page 115 The NVMe cable connects from port (J1) on the NVMe drive backplane to port (J1) on the NVMe U.2 pass-thru card. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 101...
  • Page 116 Figure 102. Connecting the NVMe cable for a system with one NVMe U.2 pass-thru card in P1- C49 and a filler in slot P1-C50 If you have two NVMe U.2 pass-thru cards, one is installed in slot P1-C49 and the other one is installed in slot P1-C50.
  • Page 117 Figure 103. Connecting the NVMe cable for a system with two NVMe U.2 pass-thru cards in slot P1-C49 and slot P1-C50 e) Push the connector in until the connector latch clicks. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 103...
  • Page 118 Figure 104. Connecting the NVMe cable to the NVMe drive backplane f) If a second NVMe U.2 pass-thru card is present, repeat steps “18.a” on page 100 through “18.d” on page 101. 19. Replace the NVMe carrier card, if present. Otherwise, continue with the next step. a) Lower the NVMe M.2 carrier card down into the slot.
  • Page 119 SAS RAID adapter down to seat the adapter. Push in and twist the screws (A) clockwise to fully seat the adapter. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 105...
  • Page 120 Figure 106. Replacing the SAS RAID adapter b) If a rear SAS cable was attached to the SAS RAID adapter, reconnect the rear SAS cable (A) to the SAS RAID adapter rear connector (B), as shown in the following figure. 106 Power Systems: System backplane...
  • Page 121 Using your labels, reconnect the front SAS cable (or cables) (A) to the connector port on the disk drive backplane. Push the connector in until the connector latch clicks. See the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 107...
  • Page 122 Figure 108. Reconnecting the front SAS cables d) If you removed only one RAID adapter, replace the plastic air dividers between slots P1-C49 and P1-C50. If you removed more than one RAID adapter repeat steps “20.a” on page 105 through “20.c”...
  • Page 123 To lock the divider in its slot, lift up on the retaining latch at the back edge of the divider (C) as shown in the following figure. Figure 110. Locking the retaining latch on the PCIe divider Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 109...
  • Page 124 22. Replace the service processor card: a) Align the service processor card (A) into PCIe location and slide the card into the slot, as shown in the following figure. b) Close the PCI adapter retainer latch (B) to secure the card. 110 Power Systems: System backplane...
  • Page 125 Insert the rear USB cable housing (A) into the PCI adapter slot at the rear of the system as shown in the following figure. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 111...
  • Page 126 Figure 112. Replacing the rear USB cable b) Press the adapter latch (B) down and route the cable behind the PCI adapters and spacers to the plug on the right side of the system. c) Plug the other end of the rear USB cable (C) into the connector on the system backplane. d) Using your labels, replace any cables that you removed from the USB port.
  • Page 127 CAUTION: A hot surface nearby. (L007) Attention: Before you insert the adapter in the slot, ensure that the adapter has nothing attached to it. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 113...
  • Page 128 To lock the adapter in its slot, rotate the adapter latch (B) in the direction that is shown. Figure 114. Installing or replacing an adapter in a 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S e) Using your labels, reconnect all cables and transceivers that are attached to the adapter.

  • Page 129: Preparing The System For Operation

    2. Slide the service access cover (A) onto the system unit. 3. Close the release latch (B) by pushing it in the direction shown. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 115...
  • Page 130 Figure 116. Installing the service access cover 4. Unlock the blue rail safety latches (A) as shown in Figure 117 on page 117 by pushing them inward. Carefully push the system unit until it is 2.5-5 cm (1-2 in.) away from the rack. Note: To allow enough room to attach the cable management arm, do not push the system unit all the way into the rack.
  • Page 131 The fastener is attached at the narrowest spot (G) between the basket and the side of the arm. See Figure 118 on page 118. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 117...
  • Page 132 Figure 118. Cable management arm parts 6. Reconnect the cable management arm by inserting the inner cable management arm tab (A) into the inner mounting bracket (B) until it clicks into place. As you insert the tab, ensure the pin on the support arm is positioned between the inner and outer arm.
  • Page 133 Release the mounting bracket from the cable management arm assembly by pressing the indentation (A) on the inner cable management arm tab. The cable management arm releases from the outer mounting bracket in the direction shown. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 119...
  • Page 134 Figure 120. Releasing the cable management arm b) Swing the cable management arm away from the system. 10. Slide each of the power supplies into the system until the latch locks each one in place. 11. Using your labels, reconnect the power cords (A) to the system unit. Fasten the power cords to the system using the hook-and-loop fasteners (B) as shown in Figure 121 on page 121.
  • Page 135 Insert the inner cable management arm tab (A) into the outer mounting bracket (B) until it clicks into place as shown. The inner mounting bracket (C) is not used on the left side. Removing and replacing the system backplane in the 5105-22E, 9008-22L, 9009-22A, 9009-22G, 9223-22H, or 9223-22S 121...
  • Page 136 14. When the service processor comes up to the standby state (the power-on LED on the control panel is flashing slowly), continue to the next step. 15. Turn off the identify LED. For instructions, see Deactivating an identify LED (www.ibm.com/support/ knowledgecenter/POWER9/p9haj/p9haj_turn_off_identify_led.htm).
  • Page 137 19. Verify the installed part. • If you replaced the part because of a service action, verify the installed part. For instructions, see Verifying a repair (www.ibm.com/support/knowledgecenter/POWER9/p9ect/ pxect_verifyrepair.htm). • If you installed the part for any other reason, verify the installed part. For instructions, see Verifying the installed part (www.ibm.com/support/knowledgecenter/POWER9/p9haj/pxhaj_hsmverify.htm).
  • Page 138 124 Power Systems: System backplane...

  • Page 139: Notices

    Consult your local IBM representative for information on the products and services currently available in your area. Any reference to an IBM product, program, or service is not intended to state or imply that only that IBM product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any IBM intellectual property right may be used instead.

  • Page 140: Accessibility Features For Ibm Power Systems Servers

    This product uses standard navigation keys. Interface information The IBM Power Systems servers user interfaces do not have content that flashes 2 - 55 times per second. The IBM Power Systems servers web user interface relies on cascading style sheets to render content properly and to provide a usable experience.

  • Page 141: Privacy Policy Considerations

    Contact the vendor for accessibility information about its products. Related accessibility information In addition to standard IBM help desk and support websites, IBM has a TTY telephone service for use by deaf or hard of hearing customers to access sales and support services:...
