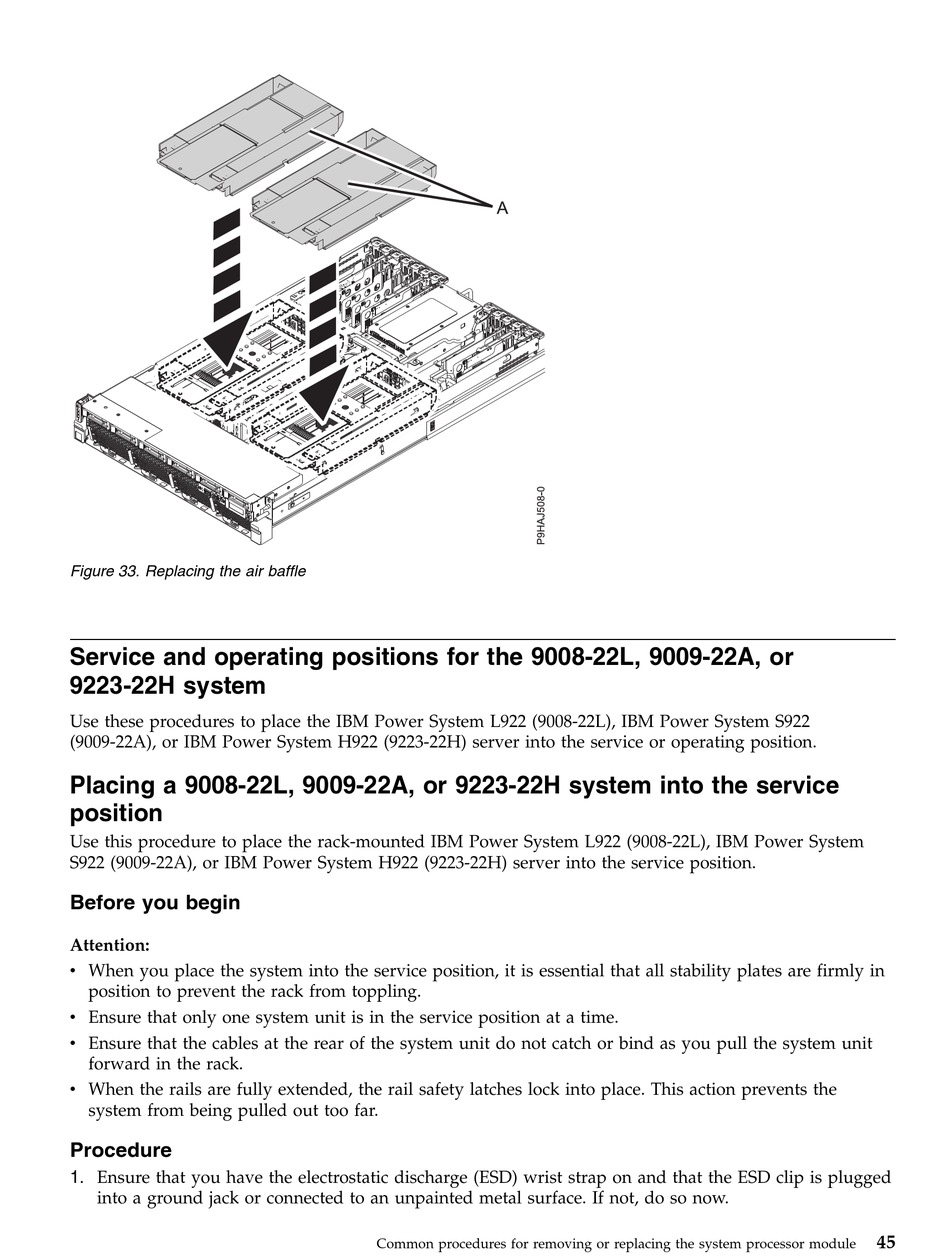

Figure 33. Replacing the air baffle
Service and operating positions for the 9008-22L, 9009-22A, or
9223-22H system
Use these procedures to place the IBM Power System L922 (9008-22L), IBM Power System S922
(9009-22A), or IBM Power System H922 (9223-22H) server into the service or operating position.
Placing a 9008-22L, 9009-22A, or 9223-22H system into the service
position
Use this procedure to place the rack-mounted IBM Power System L922 (9008-22L), IBM Power System
S922 (9009-22A), or IBM Power System H922 (9223-22H) server into the service position.
Before you begin
Attention:
v When you place the system into the service position, it is essential that all stability plates are firmly in
position to prevent the rack from toppling.
v Ensure that only one system unit is in the service position at a time.
v Ensure that the cables at the rear of the system unit do not catch or bind as you pull the system unit
forward in the rack.
v When the rails are fully extended, the rail safety latches lock into place. This action prevents the
system from being pulled out too far.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
Common procedures for removing or replacing the system processor module
45
