Installing The Front Cover On A 9008-22L, 9009-22A, Or 9223-22H System - IBM Power Systems 9008-22L Manual

About this task
The cover needs to be removed to service the following parts:
v Control panel and cable
v Control panel display and cable
v Fans
v Front USB cable
You do not need to remove the front cover to service the disk drives.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is
connected to an unpainted metal surface. If not, do so now.
2. Remove the front cover by pulling it away from the system. The cover has indentations (A) where
you can hold it more easily. See Figure 28.

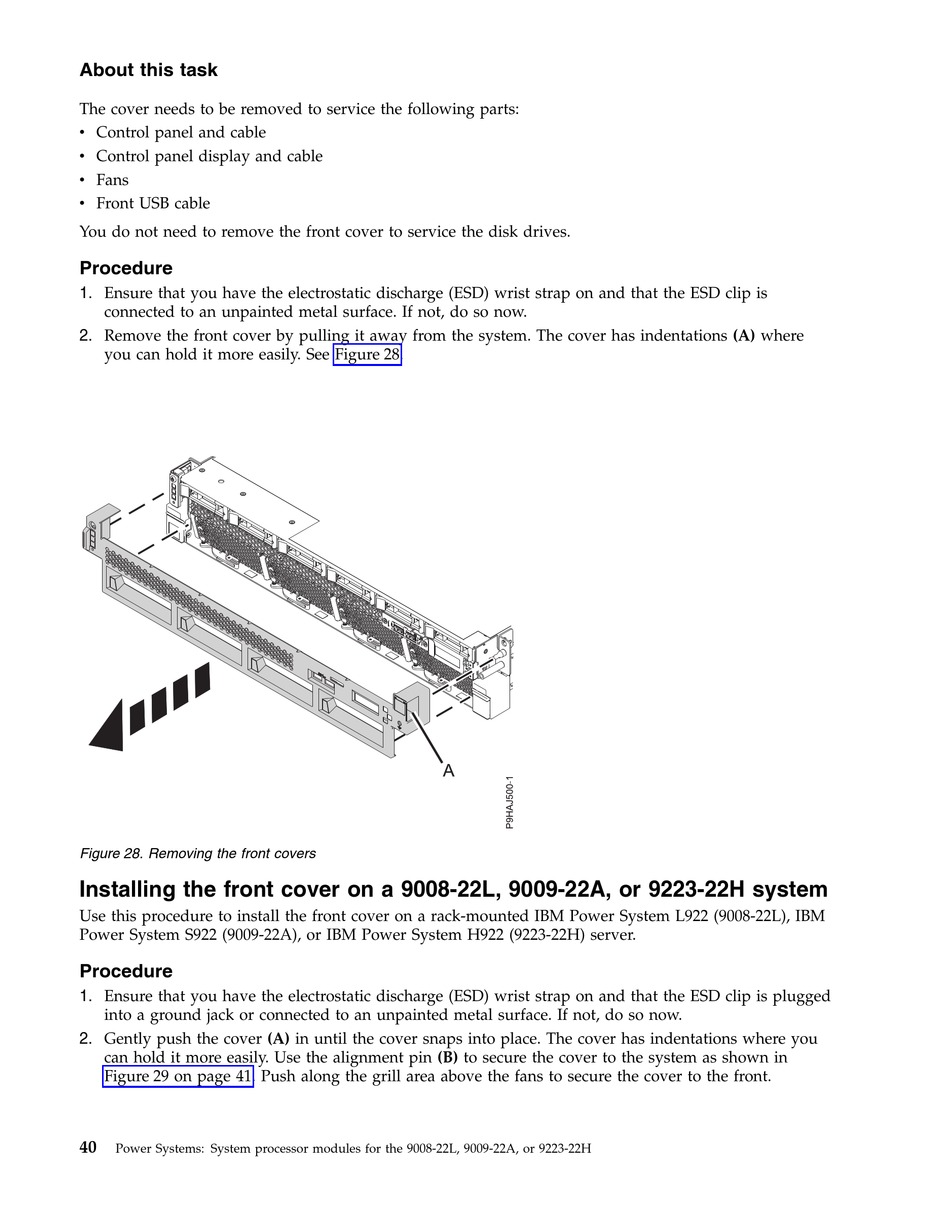

Figure 28. Removing the front covers

Installing the front cover on a 9008-22L, 9009-22A, or 9223-22H system

Use this procedure to install the front cover on a rack-mounted IBM Power System L922 (9008-22L), IBM
Power System S922 (9009-22A), or IBM Power System H922 (9223-22H) server.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Gently push the cover (A) in until the cover snaps into place. The cover has indentations where you
can hold it more easily. Use the alignment pin (B) to secure the cover to the system as shown in
Figure 29 on page 41. Push along the grill area above the fans to secure the cover to the front.
40
Power Systems: System processor modules for the 9008-22L, 9009-22A, or 9223-22H
