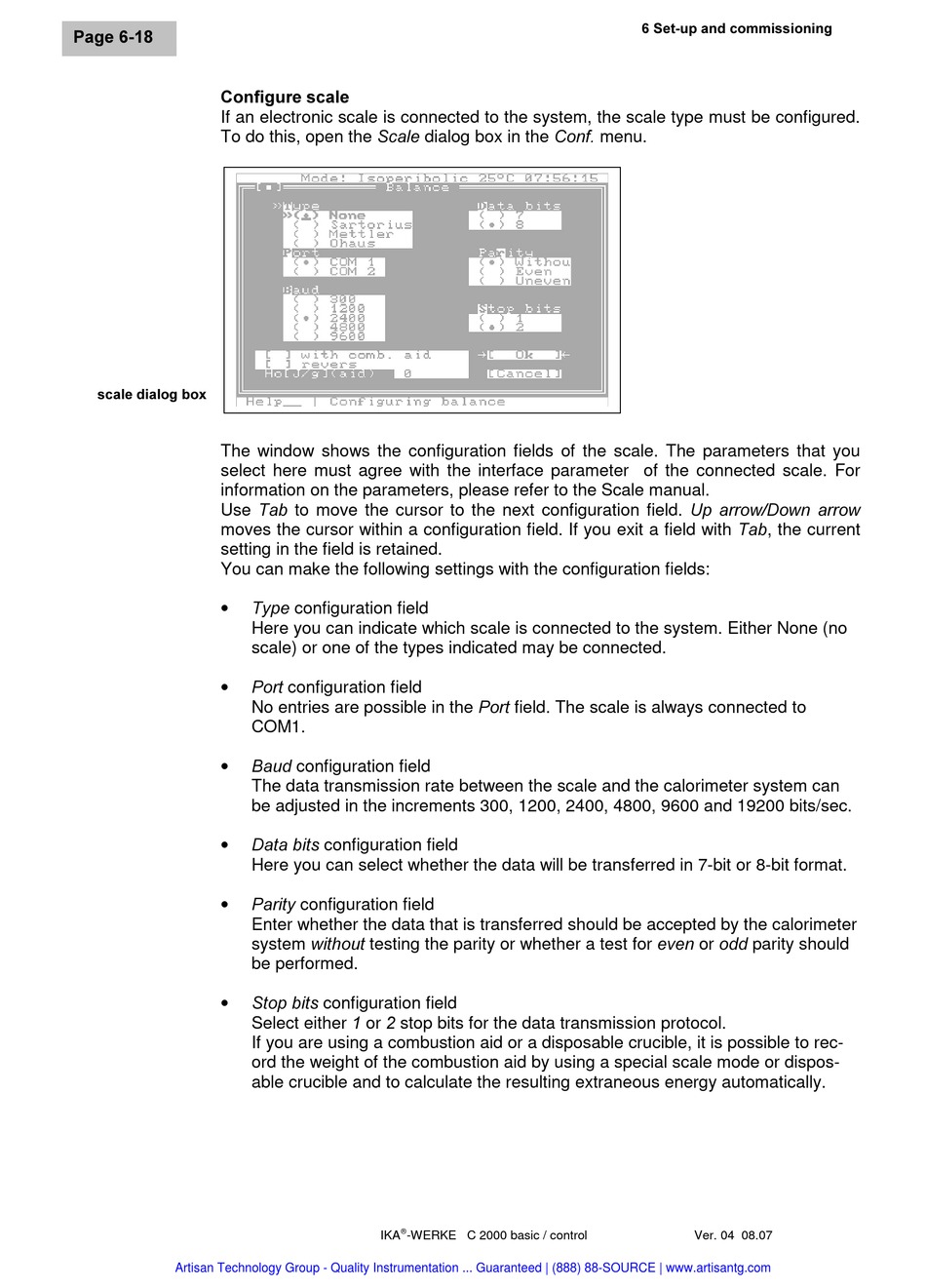

IKA C 2000 basic Operating Instructions Manual page 43

3DJH
&RQILJXUH VFDOH
If an electronic scale is connected to the system, the scale type must be configured.
To do this, open the 6FDOH dialog box in the &RQI menu.
VFDOH GLDORJ ER[
The window shows the configuration fields of the scale. The parameters that you
select here must agree with the interface parameter of the connected scale. For
information on the parameters, please refer to the Scale manual.
Use 7DE to move the cursor to the next configuration field. 8S DUURZ'RZQ DUURZ
moves the cursor within a configuration field. If you exit a field with 7DE, the current
setting in the field is retained.
You can make the following settings with the configuration fields:
•
•
•
•
•
•
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
7\SH configuration field
Here you can indicate which scale is connected to the system. Either None (no
scale) or one of the types indicated may be connected.
3RUW configuration field
No entries are possible in the 3RUW field. The scale is always connected to
COM1.
%DXG configuration field
The data transmission rate between the scale and the calorimeter system can
be adjusted in the increments 300, 1200, 2400, 4800, 9600 and 19200 bits/sec.
'DWD ELWV configuration field
Here you can select whether the data will be transferred in 7-bit or 8-bit format.
3DULW\ configuration field
Enter whether the data that is transferred should be accepted by the calorimeter
system ZLWKRXW testing the parity or whether a test for HYHQ or RGG parity should
be performed.
6WRS ELWV configuration field
Select either  or  stop bits for the data transmission protocol.
If you are using a combustion aid or a disposable crucible, it is possible to rec-
ord the weight of the combustion aid by using a special scale mode or dispos-
able crucible and to calculate the resulting extraneous energy automatically.
®
IKA -WERKE C 2000 basic / control
 6HWXS DQG FRPPLVVLRQLQJ
Ver. 04 08.07
