d

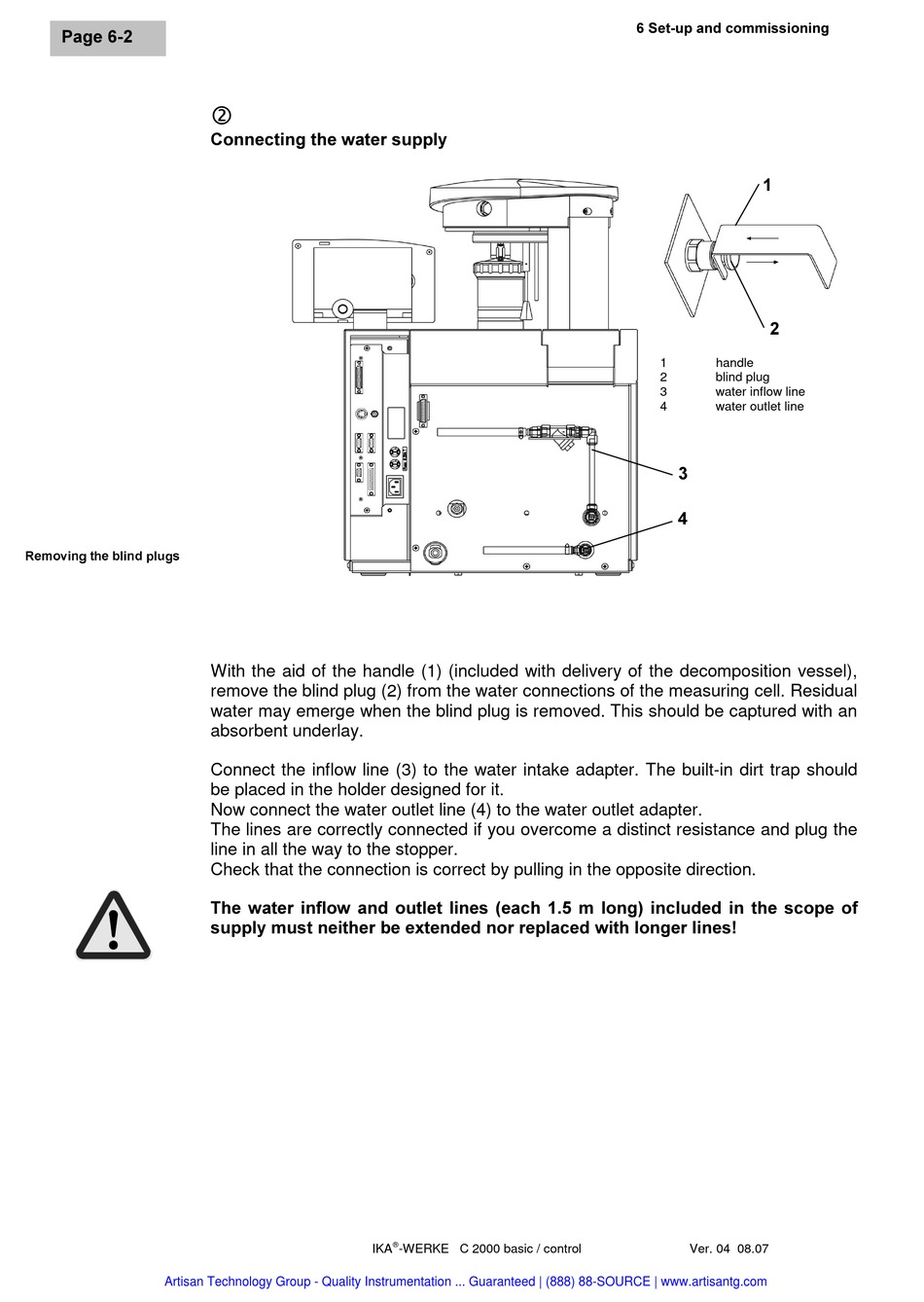

&RQQHFWLQJ WKH ZDWHU VXSSO\
With the aid of the handle (1) (included with delivery of the decomposition vessel),
remove the blind plug (2) from the water connections of the measuring cell. Residual
water may emerge when the blind plug is removed. This should be captured with an
absorbent underlay.
Connect the inflow line (3) to the water intake adapter. The built-in dirt trap should
be placed in the holder designed for it.
Now connect the water outlet line (4) to the water outlet adapter.
The lines are correctly connected if you overcome a distinct resistance and plug the
line in all the way to the stopper.
Check that the connection is correct by pulling in the opposite direction.
7KH ZDWHU LQIORZ DQG RXWOHW OLQHV HDFK  P ORQJ LQFOXGHG LQ WKH VFRSH RI
VXSSO\ PXVW QHLWKHU EH H[WHQGHG QRU UHSODFHG ZLWK ORQJHU OLQHV
IKA
®
-WERKE C 2000 basic / control
 6HWXS DQG FRPPLVVLRQLQJ


1 handle
2 blind plug
3 water inflow line
4 water outlet line


Ver. 04 08.07
