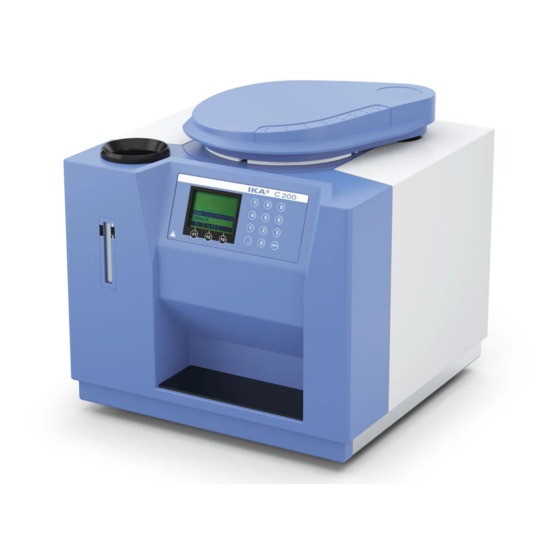

IKA C 200 Operating Instructions Manual

Calorimeter system
Hide thumbs Also See for C 200:
Table of Contents

Advertisement

Quick Links

IKA
®
35 488 01
Calorimeter system C 200
O p e r a t i n g i n s t r u c t i o n s
E N
C 200 Vers. 01
Reg.-No. 4343-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C 200 and is the answer not in the manual?

Questions and answers

Related Manuals for IKA C 200

Summary of Contents for IKA C 200

  • Page 1 ® 35 488 01 Calorimeter system C 200 O p e r a t i n g i n s t r u c t i o n s C 200 Vers. 01 Reg.-No. 4343-01...

  • Page 2: Table Of Contents

    Information regarding operating instructions Warranty and liability Transport, storage, place of installation Conditions of transport and storage Place of installation Unpacking Contents C 200 Installation and starting up Calorimeter C 200 Installation Switching on the system Display and operating elements...
  • Page 3 Table of contents Chapter Page Cleaning and maintenance Inner vessel filter Filler 8.2a Micro filter Maintaining the water circulation Decomposition vessels Cleaning information ® accessories and consumablesl Accessories Consumables Technical data -WERKE C 200 Ver. 02/2.06 ®...
  • Page 4 CCE 89 / 336 ; CCE 89 / 392 e CCE 73 / 23, in accordo ai seguenti regolamenti e documenti: EN 61 010; EN 50 082; EN 55 014; EN 60 555. ® -LABORTECHNIK Janke & Kunkel GmbH & Co. KG Staufen, November 2005 ® -WERKE C 200 Ver. 02/2.06...

  • Page 5: Safety Precautions

    Safety precautions Calorimeter system C 200 may only be used to determine the calorific value of solid and fluid materials. Only the appropriate original IKA ® decomposition vessels may be used for this purpose. For detailed information, please see the operating instructions for the decomposition vessels.
  • Page 6 Individual use is understood here to include a series of experiments performed under roughly the same conditions in terms of pressure and temperature. Experiment autocla- ves must be operated in special chambers (C 2000, C 5000, C 7000, C 200). The decomposition vessels must undergo repeated tests (internal tests and pressure tests) performed by the technical expert.
  • Page 7 Pressure vessels must not be used if they have defects which could pose a risk to staff or third parties. The pressure equipment directive can be obtained from Carl Heymanns or Beuth publishers. -WERKE C 200 Ver. 02/2.06 ®...

  • Page 8: User Information

    ® 12 months of purchase, the warranty will be extended to 24 months. In the case of a warranty claim, please contact the responsible representative or the sup- plier. You can also return the appliance directly to IKA ® -WERKE.

  • Page 9: Transport, Storage, Place Of Installation

    Please unpack the system components carefully and check for any damage. When you unpack the equipment, check for any damages which may have occurred during trans- portation. Make a note of any damage and report it immediately (post, railway, shipping company). -WERKE C 200 Ver. 02/2.06 ®...

  • Page 10: Contents C 200

    3.4 Contents C 200 1 x basic device C 200 1 x decomposition vessel C 5010 1 x ignition adaptor 1 x attachment set 1 x table power supply 1 x plug 1 x operating instructions 1 x water emptying hose (length: 1 m)

  • Page 11: Installation And Starting Up

    Installation and starting up 4.1 Calorimeter C 200 measuring cell cover tank fillers display keyboard fill level display 4.2 Installation All the connections for draining as well as the peripherals are on the back of the appliance. ΠConnecting the plug...
  • Page 12 Opening the calorimeter cover The calorimeter cover is opened by hand by lifting the cover by the gripping groove and raising it until it automatically swivels to the right and locks in position. Raise Swivel to right ® -WERKE C 200 Ver. 02/2.06...

  • Page 13: Switching On The System

    Reading value: shows the current temperature increase in minute intervals during the measurement or the measurement result after the measurement. Current temperature value: shows the current temperature in second intervals at the sensor in the inner vessel. -WERKE C 200 Ver. 02/2.06 ®...
  • Page 14 Command line: this line allows you to directly enter numerical values using the key- board. If you press OK (F1), the menu settings will be saved and you will exit the menu. ® -WERKE C 200 Ver. 02/2.06...

  • Page 15: Configuring The System

    (usually benzoic acid). MENU (F3) ¬ UP/DOWN (F2) to "General" ¬ OK (F1) ¬ UP/DOWN (F2) to "Reference" ¬ Enter the calorific value in the format xxxxx (default: 26460) ¬ OK (F1) ¬ BACK (F3) -WERKE C 200 Ver. 02/2.06 ®...

  • Page 16: System Settings

    MENU (F3) ¬ UP/DOWN (F2) to "General" ¬ OK (F1) ¬ UP/DOWN (F2) to "Combustible crucible" ¬ OK (F1) ¬ Select the options "with" oder "without" (default: without) ¬ OK (F1) ¬ BACK (F3) ® -WERKE C 200 Ver. 02/2.06...
  • Page 17 OK (F1) ¬ BACK (F3) Isoperibol Calorimeter C 200 automatically performs the measurement according to the standard for isoperibol calorimeters and calculates the provisional result for you. The measure- ment takes approx. 17 minutes with excellent result reproducibility. Manual This is ”student mode”. You work according to the standard for isoperibol / isothermal calorimeters.

  • Page 18: Filling The Calorimeter For The First Time

    It is still possible, however, to meet the accuracy specifications of the international standards. Time control Calorimeter C 200 performs the measurement automatically according to a set period of time and calculates the provisional result. The measuring time is set at 14 minutes. 4.7 Filling the calorimeter for the first time Before using the calorimeter for the first time you must fill the outer vessel with tap water.

  • Page 19: Switching Off The System

    T I P P 200. You can code these to distinguish between them by sticking the black coding strips into the special slots on the decomposition vessels. Decomposition vessel no.: (without coding) Slot for coding strips -WERKE C 200 Ver. 02/2.06 ®...

  • Page 20: Oxygen Station C 248

    4.10 Oxygen station C 248 The C 200 does not have an integrated oxygen filling point for the decomposition vessel. You can use oxygen station C 248 for filling. For information on how to operate and con- nect the oxygen station, please see the accompanying operating instructions.

  • Page 21: Calorimetric Measurements

    The complete bases of calculation for the calorific and heat value can be found in the relevant standards (e.g.: DIN 51 900; ASTM D 240; ASTM D 5865..). They are also con- tained in the CalWin calorimeter software. -WERKE C 200 Ver. 02/2.06 ®...

  • Page 22: Corrections

    (support C 5010.4, see Accessories). The sample is weighed out into the com- bustible crucible as normal. In most cases no additional burning aid is required because the combustible crucible itself serves as a burning aid. ® -WERKE C 200 Ver. 02/2.06...

  • Page 23: Information About The Sample

    (e.g. benzoic acid) must not be burnt loose. These materials tend to splash and there is therefore no guarantee of complete combustion. Furthermore, this can damage the inner wall of the decomposition vessel. IKA ® pelleting press C 21 and analytical mill A11 basic (see Accessories) are available for sample preparation.

  • Page 24: Calibration

    If substances are used in the decomposition vessel in combustion tests (e.g. distilled wa- ter or solutions), you must use exactly the same amount of this substance for calibration. For more detailed information on calibration, please see the relevant standards. ® -WERKE C 200 Ver. 02/2.06...

  • Page 25: Preparing And Performing Measurements

    If several decomposition vessels are used, their individual parts must not be interchan- ged (see Stamping individual parts). To prolong the life of wearing parts (o-rings, seals, etc.) we recommend that you always work with a water trap. -WERKE C 200 Ver. 02/2.06 ®...

  • Page 26: Preparing The Decomposition Vessel

    Using tweezers, align the cotton thread so that it hangs inside the crucible and is immersed in the sample. This will ensure that the burning thread ignites the sample during the ignition process. ‘ Insert the cover into the decomposition vessel and hand tighten the union nut. ® -WERKE C 200 Ver. 02/2.06...
  • Page 27 Attaching the ignition adaptor Detaching the ignition adaptor ” Place the decomposition vessel into the inner vessel of calorimeter C 200. The decomposition vessel must be placed between the three locating bolts. Locating bolt Magnetic stirring bar •...

  • Page 28: Preparing The Measurement

    Correction value for the heat energy generated by the cotton thread ignition aid. A default value of 50 J is specified here. The default value for the combustible crucible option is 0 J. If you use a burning aid other than the C 710.4 IKA ®...

  • Page 29: Performing The Measurement

    Close the cover by moving it to the left out of the locking position until it slides down by itself. The decomposition vessel comes into contact with the igniters via the ignition adaptor. The "Fill" message will appear. -WERKE C 200 Ver. 02/2.06 ®...
  • Page 30 In the case of manual ignition / completion, "Preparing to ignite" or „Preparing to complete" will appear in the status line. Ignition/completion is only finished when this display disappears (max. 60 sec.). ® -WERKE C 200 Ver. 02/2.06...

  • Page 31: Cleaning The Decomposition Vessel

    If the decomposition vessel cannot be cleaned in the above way (e.g. due to baking, pitting, corrosion etc.), please contact the Technical Service. The combustion residue in the crucible, e.g. soot or ashes, should also be wiped away with an absorbent non-fibrous cloth. -WERKE C 200 Ver. 02/2.06 ®...

  • Page 32: Errors In The Measuring Procedure

    Otherwise, start a test and use ignition aid if necessary Cause: decomposition vessel may not have been filled with oxygen. User action: open the cover to cancel the test and perform a new measurement ® -WERKE C 200 Ver. 02/2.06...
  • Page 33 Then reinitialise the converter (see section 7.2 ”ReInit”). If this does not work, switch the appliance off and then back on again. If this does not work either, please contact IKA ® Service.
  • Page 34 Half fill the inner vessel with water (via Service menu see section 7.2) and then manually switch the stir- ring motor on and off (also via Service menu). If the stirring motor does not work, please contact IKA ® Service.

  • Page 35: Service Menu

    If you exit the service menu, all the started actions will be stopped and the system will be restored to its original state. This will allow you to continue without any errors. -WERKE C 200 Ver. 02/2.06 ®...

  • Page 36: Description Of Service Menu Options

    Requirement: the emptying hose must be locked in place in plug-in coupling (section 4.2) Reset This menu item allows you to restore the default settings. Reinit This menu item allows you to reinitialise the A / D converter. ® -WERKE C 200 Ver. 02/2.06...

  • Page 37: Cleaning And Maintenance

    Thus the water filling time of the inner vessel extends. Thereby if the upper time limiting is exceeded by 120 seconds, the system indicates the disturbance and breaks the measurement off. -WERKE C 200 Ver. 02/2.06 ®...

  • Page 38: Maintaining The Water Circulation

    In the case of discontinuous use with tap water (single measurements with long gaps) a stabiliser must be added to the water circulation to prevent the formation of algae. Add approx. 4 ml IKA ® -Aqua-Pro C 5003.1 to the tank (see Accessories). Switch the pump on via the service menu (section “Pump“).

  • Page 39: Decomposition Vessels

    8.4 Decomposition vessels Please see the operating instructions for C 5010 for information on decomposition vessel maintenance! 8.5 Cleaning information Only clean IKA ® appliances using these IKA ® approved cleaning agents: Dirt Cleaning agent Dyes Isopropanol Building materials Water containing detergent, isopropanol...

  • Page 40: Ika Accessories And Consumablesl

    C 43 Benzoic acid (NBS 39i, 30 g) C 43A Benzoic acid (100 g) C 723 Benzoic acid blister pack (50 x) C 14 Combustible crucible (100 x) C 15 Paraffin strips (600 x) -WERKE C 200 Ver. 02/2.06 ®...

  • Page 41: Technical Data

    Isoperibol / approx. 17 min Dynamic / approx. 8 min Time control / 14 min Manual / approx. 17 min 1 x parallel (Centronics) Interfaces 1 x serial (RS 232) Subject to technical change! -WERKE C 200 Ver. 02/2.06 ®...
  • Page 42 - WERKE GMBH & CO.KG ® Janke & Junkel - Str. 10 Middle East D-79219 Staufen Africa Tel.:+49 7633 831-0 Fax:+49 7633 831-98 E-mail: sales@ika.de North America Works, Inc. ® 2635 North Chase Pkwy SE Central America Wilmington, NC 28405-7419 USA Tel.: 800 733-3037 Tel.: +1 910 452-7059...
