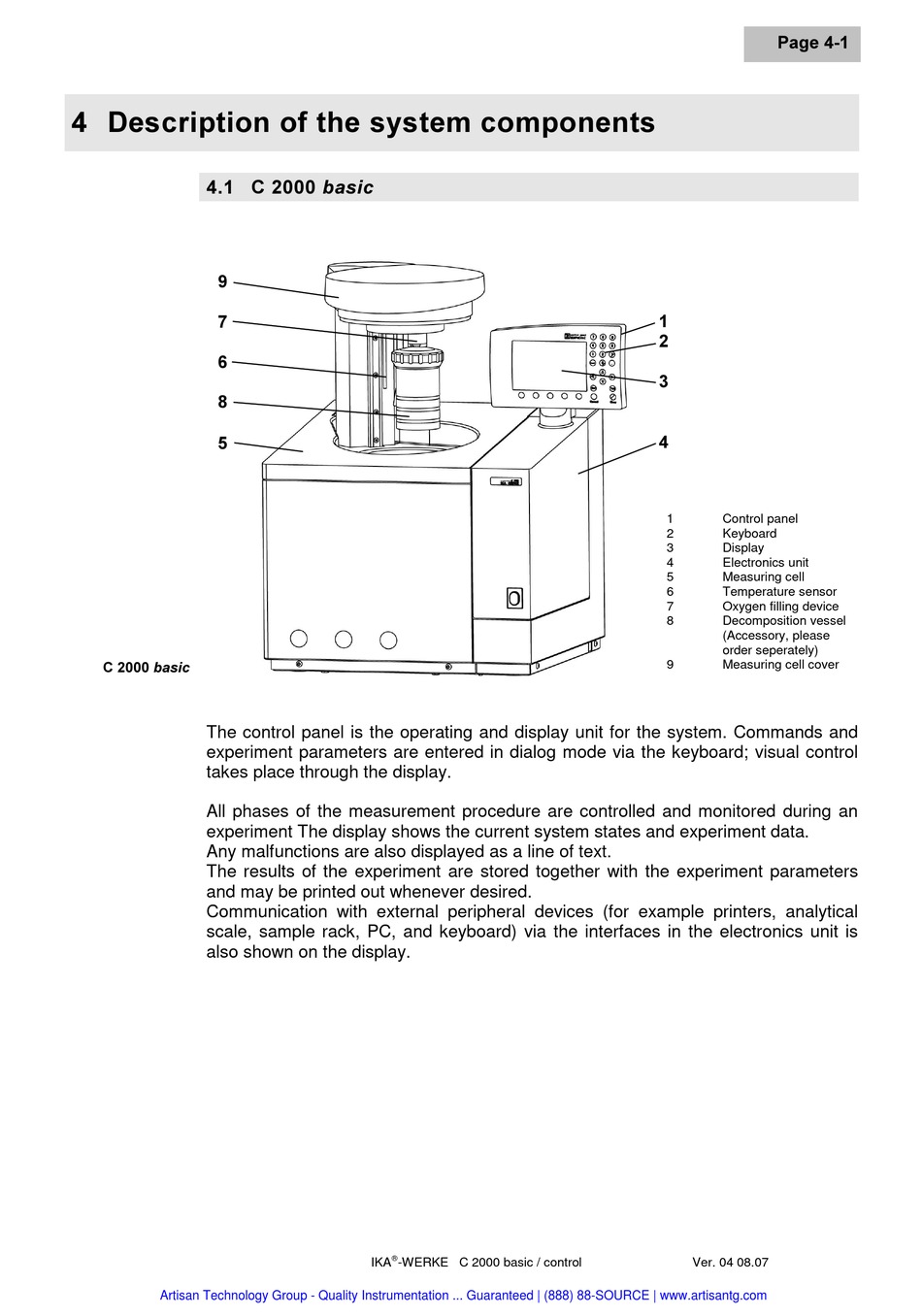

 'HVFULSWLRQ RI WKH V\VWHP FRPSRQHQWV
 &  EDVLF




&  EDVLF
The control panel is the operating and display unit for the system. Commands and
experiment parameters are entered in dialog mode via the keyboard; visual control
takes place through the display.
All phases of the measurement procedure are controlled and monitored during an
experiment The display shows the current system states and experiment data.
Any malfunctions are also displayed as a line of text.
The results of the experiment are stored together with the experiment parameters
and may be printed out whenever desired.
Communication with external peripheral devices (for example printers, analytical
scale, sample rack, PC, and keyboard) via the interfaces in the electronics unit is
also shown on the display.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
®
IKA -WERKE C 2000 basic / control
3DJH




1 Control panel
2 Keyboard
3 Display
4 Electronics unit
5 Measuring cell
6 Temperature sensor
7 Oxygen filling device
8 Decomposition vessel
(Accessory, please
order seperately)
9 Measuring cell cover
