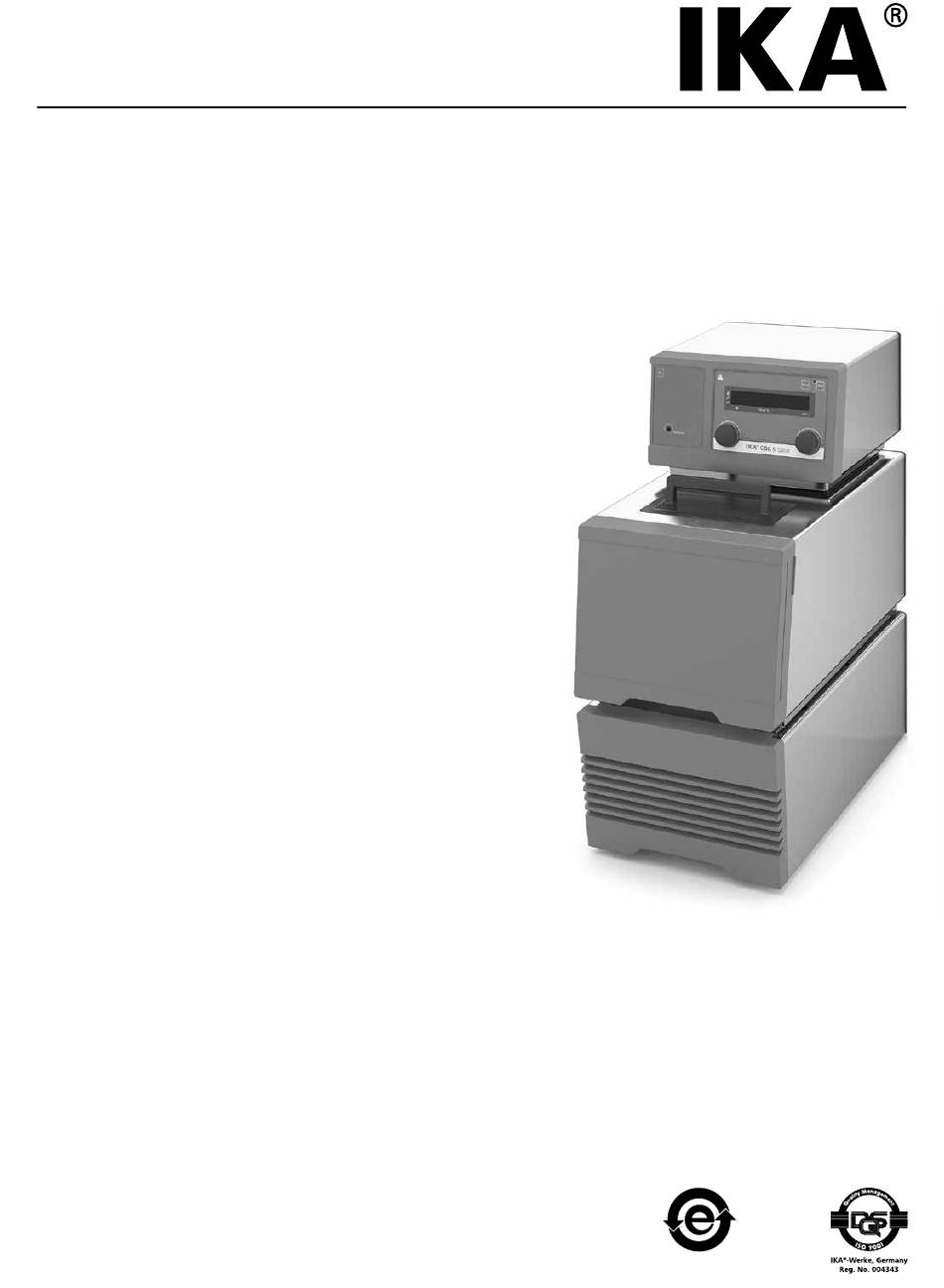

  • Page 1 20000013102 CBC 5 basic_112016 CBC 5 basic ® Operating instructions...
  • Page 2: Device Setup

    Device setup RS 232 Micro USB Pt 100 Fig. 1 Item Designation Operator panel and display Filling opening lid Front cover Handle Venting grid Mains switch Power socket Cable clip Pump connection IN Pump connection OUT RS 232 interface USB interface External temperature sensor socket...
  • Page 3: Table Of Contents

    Delivery scope �������������������������������������������������������������������������������������������������������������������������������������������������������7 Preparations ������������������������������������������������������������������������������������������������������������������������������������������������� 7 Setting up �������������������������������������������������������������������������������������������������������������������������������������������������������������7 Connecting the tubings �����������������������������������������������������������������������������������������������������������������������������������������7 Filling and draining ������������������������������������������������������������������������������������������������������������������������������������������������8 Fluids (Standard information for IKA fluid) �����������������������������������������������������������������������������������������������������������9 ® Moving the device ����������������������������������������������������������������������������������������������������������������������������������������������10 Operator panel and display ������������������������������������������������������������������������������������������������������������������������ 10 Setting the safety temperature ������������������������������������������������������������������������������������������������������������������ 11 Commissioning �������������������������������������������������������������������������������������������������������������������������������������������...
  • Page 4: Declaration Of Conformity

    Declaration of Conformity We declare under our sole responsibility that this product corresponds to the regulations 2014/35/EU, 2014/30/EU, 2014/53/EU and 2011/65/EU and conforms with the standards or other normative documents: EN 61010-1, EN 61010-2- 010, EN 61010-2-051, EN 61326-1, EN 60529 and DIN 12876-1� Explication of warning symbols Indicates an (extremly) hazardous situation, which, if not avoided, will result in death, DANGER...
  • Page 5: Safety Instructions

    • Process pathogenic material only in closed vessels under a It is dangerous to touch the heater� CAUTION suitable fume hood� Please contact IKA application sup- The temperature of the heater can ® be very high�...
  • Page 6: Fluids

    • After a power failure during operation, the device may • Continuous monitoring of the bath and the filling level of start automatically (depending on operating mode)� the bath fluid is required, especially at high temperatures� • Transport the device with care� •...
  • Page 7: Unpacking

    Note: After setting up the device, wait at least one hour be- fore starting the operation to avoid the damage to the cool- Fig. 5 ing system� Note: Please note the permissible temperature range of hoses� For hot fluids we recommend the IKA LT 5�20 ® • Connecting the tubings: hoses�...
  • Page 8: Filling And Draining

    • Filling and draining: - To drain the fluid from the bath, connect a hose to the - Before filling the fluid into the bath, open the front cover drain port and turn the drain valve in counter clockwise as indicated in following figure� direction with a straight screwdriver�...
  • Page 9: Fluids (Standard Information For Ika ® Fluid)

    • Fluids (Standard information for IKA fluid): ® No� ® Operating temperature Operating temperature Safety temperature Flash point Designation range for open bath range for closed bath (°C) (°C) application applications (°C) (°C) CF�EG28�N10�80�8 -10 ��� 80 -10 … 80 CF�EG39�N20�80�16...
  • Page 10: Moving The Device

    • Moving the device: Empty all fluid in the bath before moving device from one place to other place� The device must be lifted by two persons with the upper handles� For this purpose, take off the front cover (3)� It can also be moved on flat surface by lifting and pushing the front of the device�...
  • Page 11: Setting The Safety Temperature

    Setting the safety temperature Seting the safety temperature with screwdriver delivered The safety temperature setting will appear on the display� with the device� Safety temperature Factory setting: approximate max� value� Adjustment range: see “Technical data“� Note: The safety temperature must always be set to at least 25 ºC lower than the flash point of the fluid used�...
  • Page 12: Menu Settings

    Pressing the lock key (I) for about 2 seconds, the device con- ET=0 ET=1 Temp. display rpm display trol elements can be locked to prevent accidental changes (pressing menu that can be done during operation (LED (H) will light up)� key (G)) To unlock the control elements, press the lock key again for activated...
  • Page 13: Basic Guide To Setting The Menu Options

    The maximum adjustable value: 200° C� This value can be Note: Inappropriate settings may produce the following limited additionally by the selected fluid (No�, see “Fluid heating up curves: (Standard information for IKA fluid)” fluid type)� ® Kp too high Note: The maximum value is limited by the set safety °C...
  • Page 14: External And Internal Temperature Control (Et) (For Heating)

    Proportional coefficient of PID (Kp 1): Dynamics of the external PID temperature control (FAST): The proportional coefficient Kp is the controller amplifi- FAST=0: accurate, without overshoot cation and determines how strongly the control deviation FAST=1: fast, with overshoot (the difference between the target temperature and ac- •...
  • Page 15: Interface And Output

    , provides a convenient tool for controlling ® ® circulating equipment and collecting data under MS Windows, and includes graphical entry features, for pump motor speed ramps for example� The following table summarizes the (NAMUR) commands understood by the IKA control equipment� ®...
  • Page 16 Commands: NAMUR Function Commands IN_PV_1 Read the external actual temperature IN_PV_2 Read the internal actual temperature IN_PV_3 Read the safety actual temperature IN_PV_4 Read the pump actual speed IN_SP_1 Read the internal setting temperature (if ET=0) Read the external setting temperature (if ET=1) IN_SP_3 Read the safety setting temperature IN_SP_4...
  • Page 17: Maintenance And Cleaning

    The protective media stops the - manufacturing number, see type plate growth of algae, bacteria and other microorganisms with - item and designation of the spare parts, see www�ika�com its bactericidal effectiveness� It protects the bath fluid and - software version�...
  • Page 18: Error Codes

    Error codes Any malfunctions during operation will be identified by an error message on the display� Proceed as follows in such cases: - Switch off device using the main switch at the back of the device - Carry out corrective measures - Restart device Error code Effect Cause...
  • Page 19: Accessories

    USB 2�0 cabel A - Micro B H�PUR�12 PUR tube (nominal width 12 mm) Labworldsoft ® H�FKM�8 FKM tube (nominal width 8 mm) H�FKM�12 FKM tube (nominal width 12 mm) Tubing insulations: ISO� 8 Insulation (8 mm) ISO�12 Insulation (12 mm) See more accessories on www.ika.com�...
  • Page 20: Technical Data

    Technical data Operating voltage 230 ± 10 % / 100–115 ± 10 % Frequency 50 / 60 Max� input power 3000 (230 VAC) / 1750 (115 VAC) Working temperature range °C - 25 ��� + 200 Operating temperature range °C - 25 ���...
  • Page 21: Warranty

    Warranty In accordance with IKA warranty conditions, the warranty The warranty does not cover worn out parts, nor does it ap- ® period is 24 months� For claims under the warranty please ply to faults resulting from improper use, insufficient care or contact your local dealer�...
  • Page 22 -Werke GmbH & Co�KG ® Janke & Kunkel-Str� 10 D-79219 Staufen Tel� +49 7633 831-0 Fax +49 7633 831-98 sales@ika�de www�ika�com...
