Figure 6.19
6.9

Setting Device Parameters via Control Code

Use Vision Configurator to generate control codes. See chapter 6.8
Note!
Parameterization mode can be activated only within 10 minutes of the sensor being switched
on.
Activating Parameterization Mode
Hold down the 2 button on the back of the sensor for more than 2 seconds. Then release the
button.
The Ready LED flashes rapidly and the sensor's camera system begins to flash.
Setting Parameters
1. To assign a parameter, position the relevant control code in the sensor's field of view.
If a valid code is detected, the Result LED lights up green briefly
If an invalid code is detected, the Result LED lights up red briefly
2. The modified parameter is now saved in the sensor's volatile memory. The "Save settings"
control code then saves the parameter in the non-volatile memory if necessary.
Deactivating Parameterization Mode
Press the 2 button on the back of the sensor.
The Ready LED stops flashing and the camera system stops flashing.
38

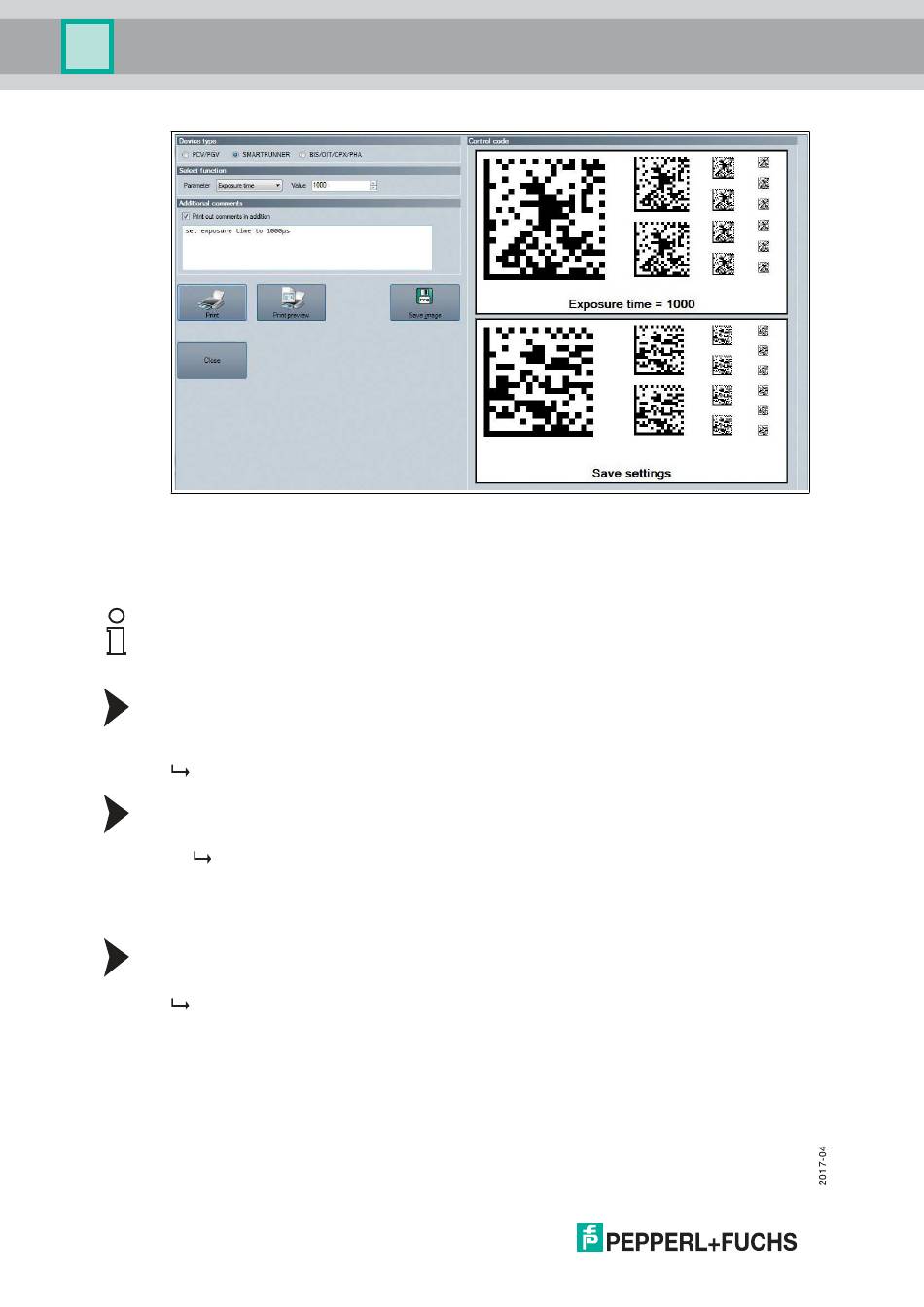

Generating a control code: Exposure time of 1000 µs
