SmartRunner Detector
Installation
3.3

Electrical Connection

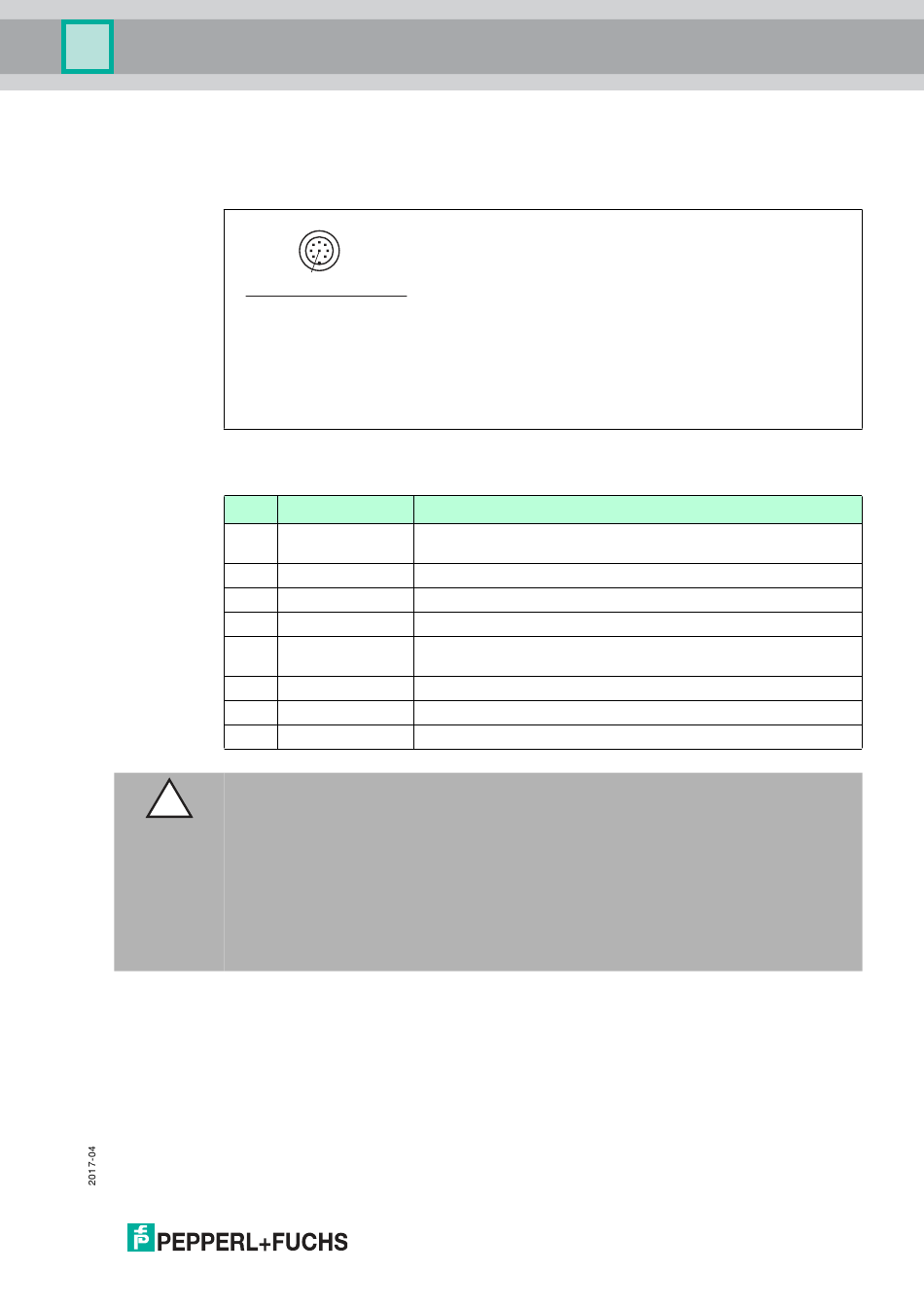

The device is connected electrically via an 8-pin M12 connector plug MAIN on the side of the
housing. The power supply and data transfer take place via this connection.
Pin
1
2
3
4
5
6
7
8
Figure 3.5
Pin Signal
1 IN trigger
2 +UB
3 Data+ RS485
4 Data- RS485
5 Teach
6 Background
7 GND
8 Object
Caution!
Damage to the device
Connecting an alternating current or excessive supply voltage can damage the device or cause
the device to malfunction.
Electrical connections with reversed polarity can damage the device or cause the device to
malfunction.
Connect the device to direct current (DC). Ensure that the supply voltage rating is within the
specified device range. Ensure that the connecting wires on the female cordset are connected
correctly.
5
4
6
3
7
1 2
8
Signal
IN Trigger
+UB
Data+ RS-485
Data- RS-485
Teach
Background
GND
Object
Description
Trigger input. Triggers an evaluation, if the sensor is in continuous
evaluation mode (independent)
+ 24 V power supply
RS485 interface: Data +
RS485 interface: Data -
Control signal for teaching-in the background line and the
definition of the search area (ROI)
Output 1 is set if the background line is not interrupted
Ground for the + 24 V power supply
Output 2 is set if the object has been detected
19
