6.2

Connecting to Vision Configurator

Connect the SmartRunner to a PC. Use a suitable RS-485/USB connecting cable and an

adapter cable to do this:

Function

USB to RS-485 interface converter including cable unit with

power supply

Cable unit with power supply for USB/RS-485 interface

converter

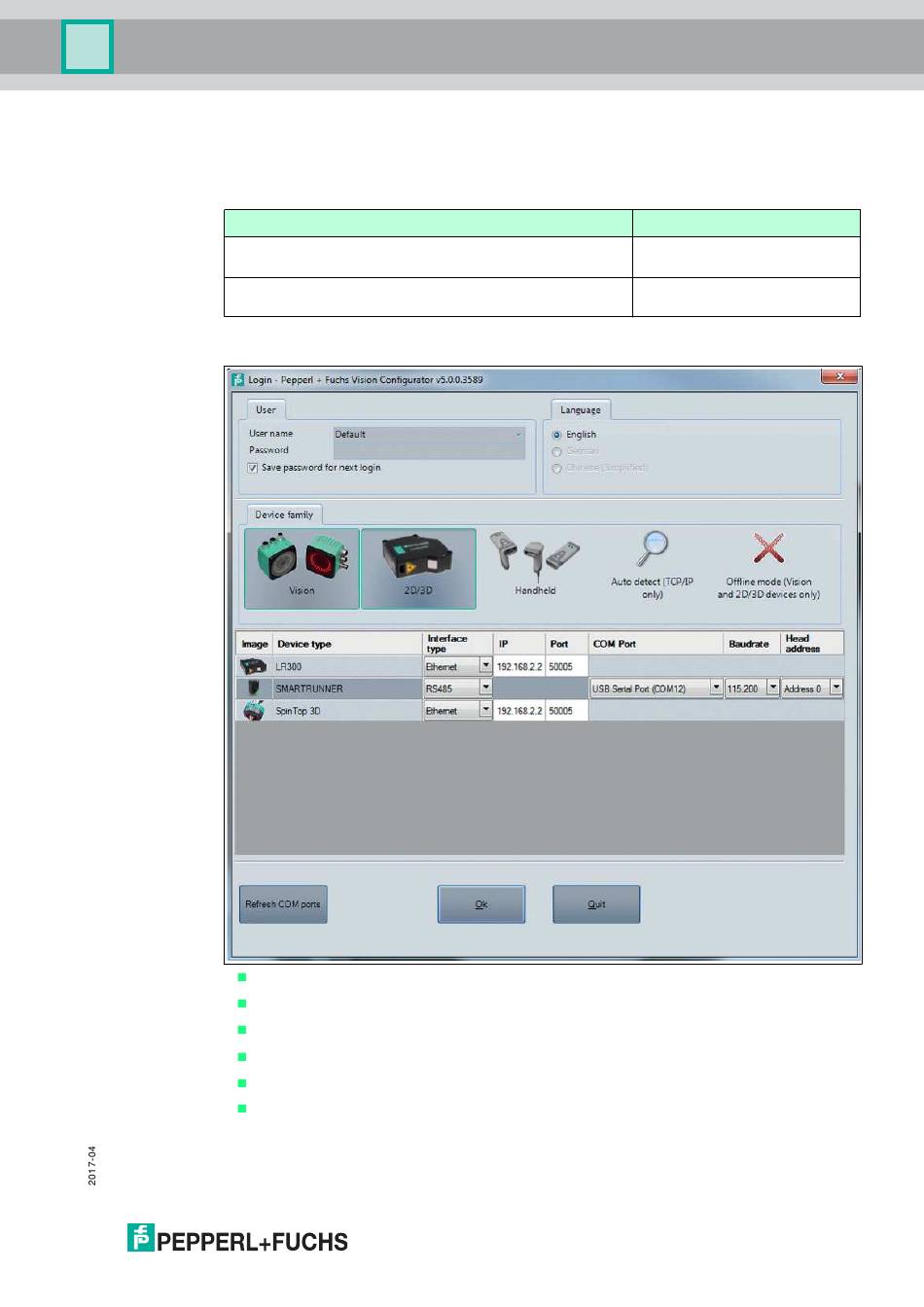

Start Vision Configurator.

Select the 2-D/3-D family

Select "SMARTRUNNER" with connection type "RS485"

Select the required COM port

Select the baud rate (default: 115200)

Select the RS-485 address (default: 0)

Connect by clicking the "OK" button

Order designation

PCV-USB-RS485-Converter Set

PCV-KBL-V19-STR-RS485
