Installation
3.1
Mounting

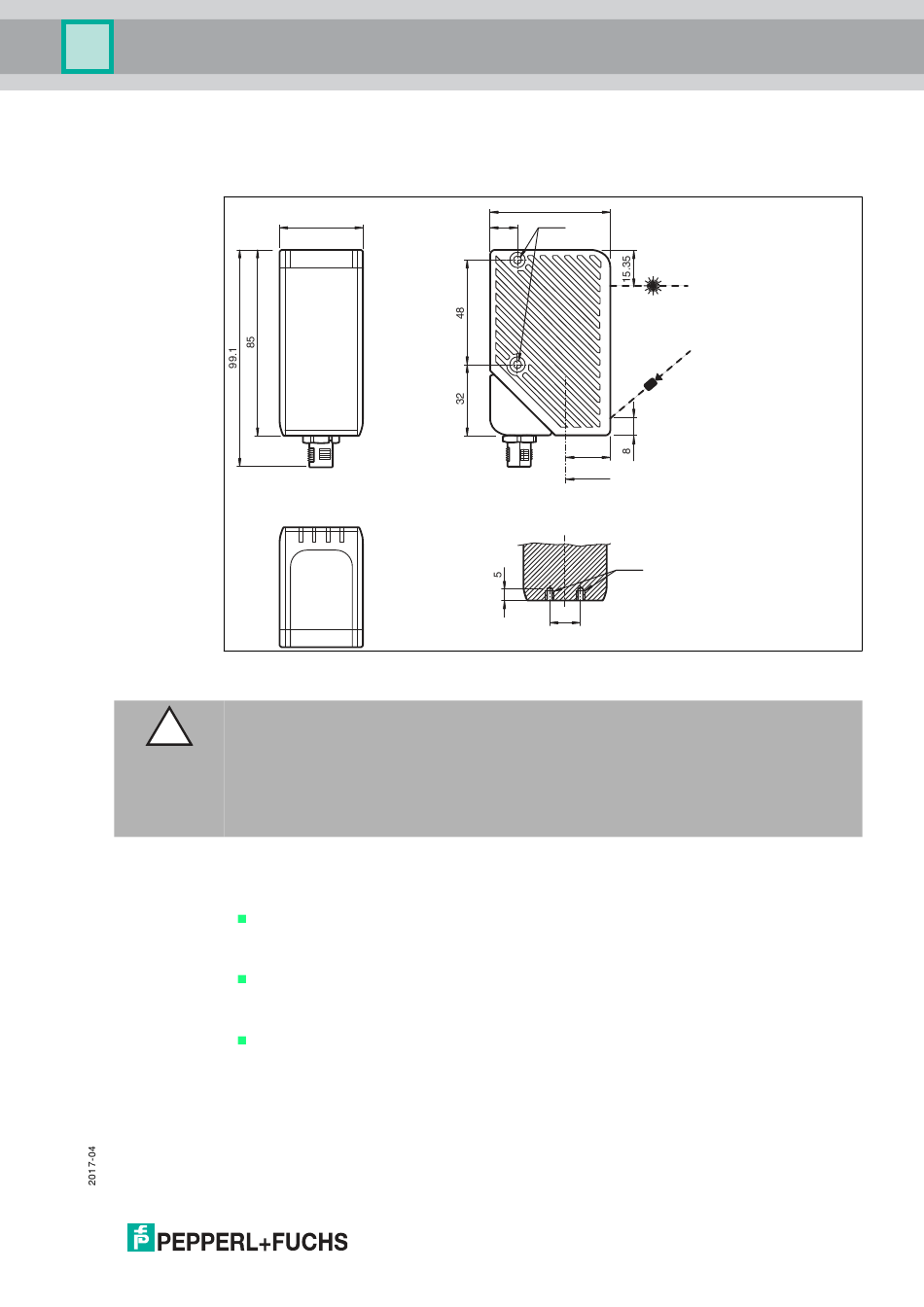

Figure 3.1
Caution!
Damage to Equipment
The threads in the bores at the side and on the underside of the housing are not thru-holes.
Observe the maximum permissible screw-in depth to avoid damaging the device or mounting
incorrectly. Do not overtighten the screws. The maximum torque of the mounting screws must
not exceed 2 Nm.
Mounting the Housing
There are 3 different ways of installing the housing of the SmartRunner in your plant.
One-sided lateral mounting with M4 screws: You can mount the housing on its right-hand
or left-hand side using the 2x M4 threaded sleeves. The maximum screw-in depth of the
M4 screws is 8 mm.
Continuous lateral mounting with M3 screws: M4 threaded sleeves are designed in such a
manner so that M3 screws pass all the way through the housing. Use 2x sufficiently long
M3 screws with 2x lock nuts to mount the device in the plant.
Mounting the underside of the device with M4 screws: You can use the 2x threaded
sleeves to mount the underside of the housing. The maximum screw-in depth of the M4
screws is 5 mm.
38
55
12
M4
20
A
A
M4
14
15
