Detection

Detection Tab
General tab for configuring the camera

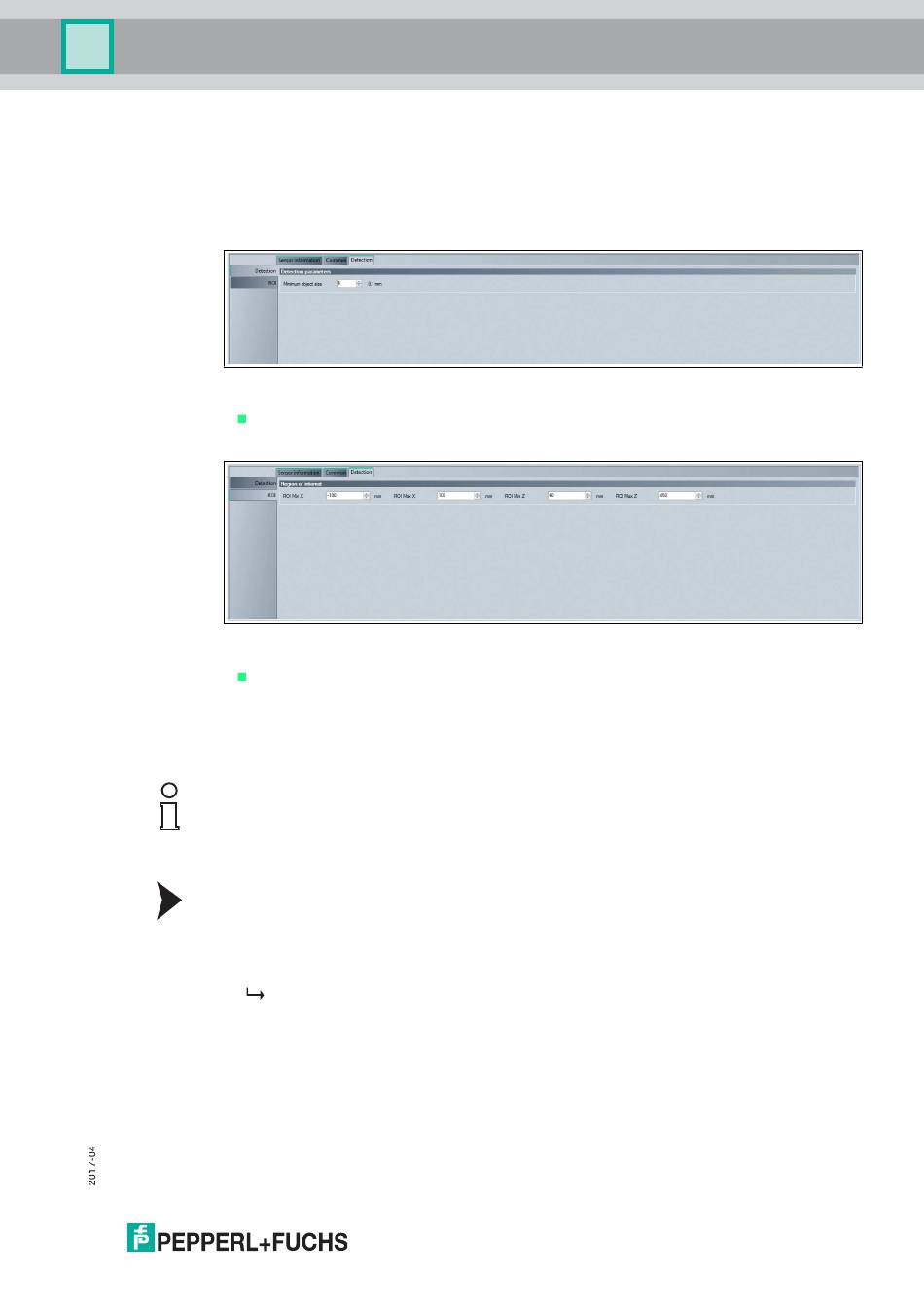

"Detection" Tab
Figure 6.17
Minimum object size: camera setting, adjust the resolution to the object size.
"ROI" Tab
Figure 6.18
ROI: defines the detection area
6.8

Generating Control Codes

Using the Vision Configurator software, you can create control codes that can assign a device
name and an IP address or an RS-485 address plus baud rate to the sensor.
Tip
It is also possible to generate control codes when no sensor is connected to Vision
Configurator. In this case, you can, for example, generate a control code to assign a particular
IP address to a sensor and then establish a connection with a PC.
Generating a Control Code
1. In the menu bar, select Administration > Create reader programming code.
2. Select the sensor type SMARTRUNNER from the Device type section.
3. Select the required parameter in the Select function section.
The control code is displayed in different sizes in the Control Code section.
4. To print the control code, click Print or Print preview.
To save the control code, click Save image.
Detection tab—Detection
Detection tab—region of interest
