SmartRunner Detector
Product Specifications
Note!
The function buttons are only activated during a parameterizable time span after the sensor is
switched on, following which they are locked. The default value for this time span is 5 minutes.
The function buttons have different functions depending on the selected operating state.
Description of the Function Buttons
In presentation mode, the following applies:
Button 1: triggers an evaluation.
Button 2: when pressed and held for up to 2 seconds, activates the teach-in process.
When pressed and held for longer than 2 seconds, activates code card mode.
In normal mode, the following applies:
Button 1: no function
Button 2: when pressed and held for longer than 2 seconds, activates code card mode

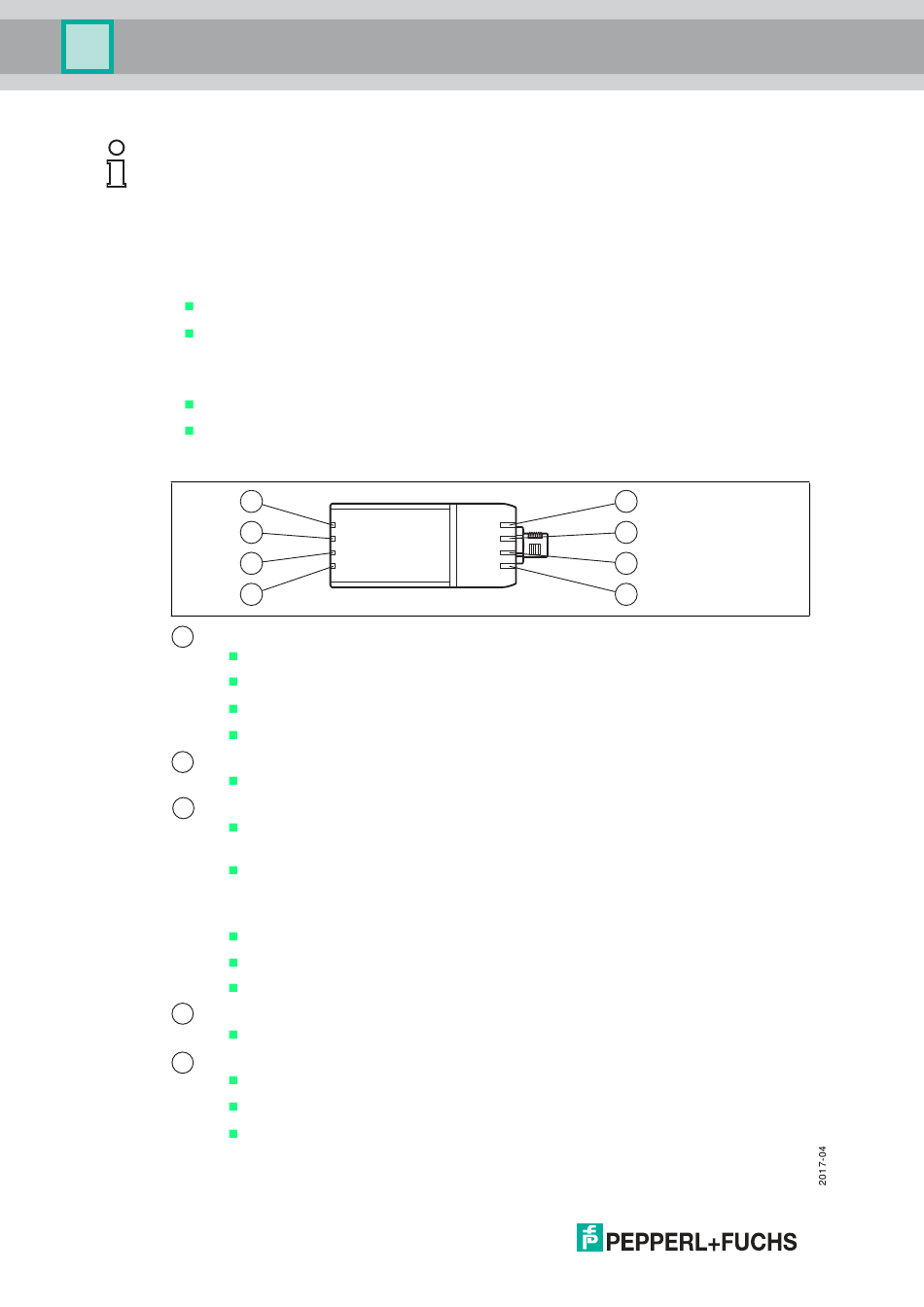

Description of LEDs
Ready: (green/red)
1
Teach-in: (yellow)
2
Result: (green/red)
3
When the sensor is in code card mode:
Trigger: (yellow)
4
Diagnosis: (red)
5
12
1
2
3
4
Lights up red if there is a sensor fault.
Lights up green if the sensor is ready for operation.
Flashes green if the sensor is in configuration mode.
Flashes green rapidly if the sensor is in code card mode.
Lights up yellow during the teach-in process.
Lights up red when an object has been detected and/or the background line has
been interrupted.
Lights up green when the background line is not interrupted; no object has been
detected.
Lights up green when a correct code has been read.
Lights up red when an incorrect code has been read.
Off if no code has been read.
Lights up yellow if the hardware trigger signal is activated.
Lights up red if a bus error has occurred.
Lights up red if a system error has occurred on the interface controller.
Flashes red if the sensor is in update mode.
