Parameterization and Operating Modes
The laser-line triangulation sensor can be configured or parameterized via 3 different methods.
Reading in code cards via the sensor camera
Processing configuration telegrams via the bus interface
Using the Vision Configurator software
The sensor has different operating modes, which can be activated for configuration,
presentation, or normal operation.
Normal mode: measurement mode, sensor works as configured
Configuration mode: mode for configuring the sensor via data telegrams and via the
Vision Configurator configuration program
Code card mode: mode for configuring the sensor via Data Matrix control codes without
the assistance of a PC
Presentation mode: mode for presentation or testing without the assistance of a PC
2.2

Dimensions

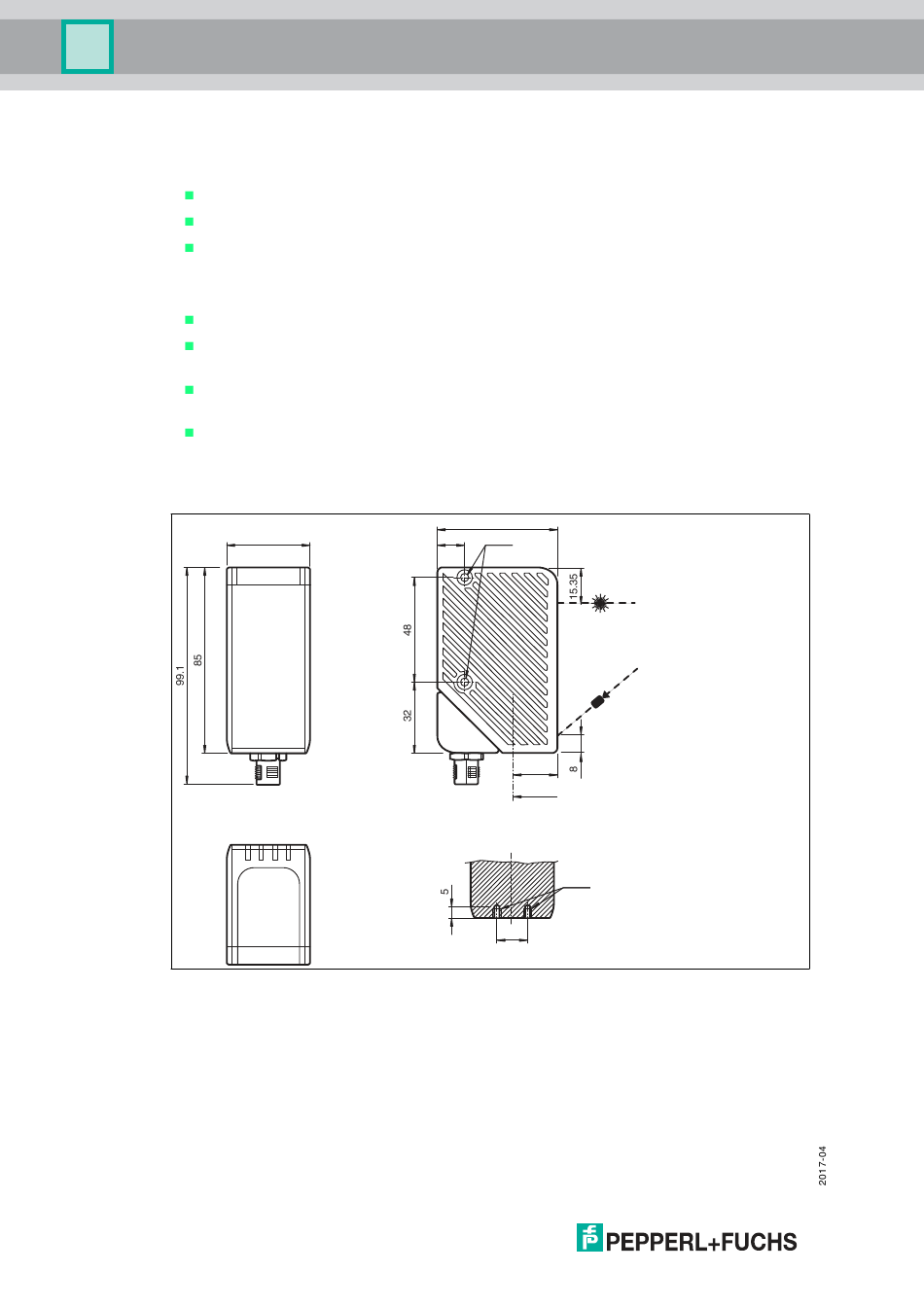

The devices in the SmartRunner series have the following identical housing dimensions.
Figure 2.6
10
38
Dimensions of the SmartRunner series
55
12 M4
20
A
A
M4
14
