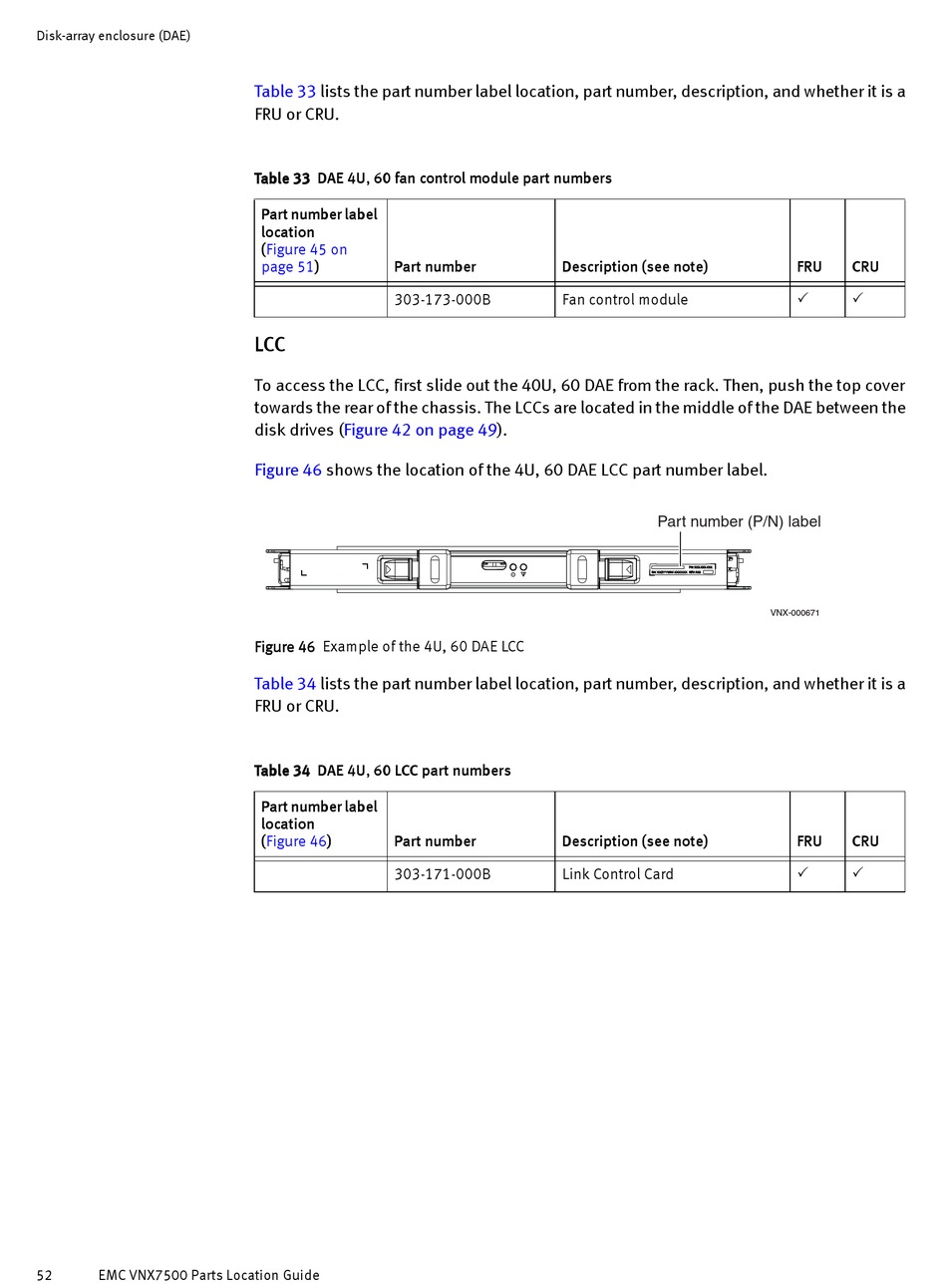

EMC VNX Series Parts Location Manual page 52

Disk-array enclosure (DAE)
52 EMC VNX7500 Parts Location Guide
Table 33 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 33 DAE 4U, 60 fan control module part numbers
Part number label
location
(Figure 45 on
page 51) Part number
303-173-000B
LCC
To access the LCC, first slide out the 40U, 60 DAE from the rack. Then, push the top cover
towards the rear of the chassis. The LCCs are located in the middle of the DAE between the
disk drives (Figure 42 on page
Figure 46 shows the location of the 4U, 60 DAE LCC part number label.
Figure 46 Example of the 4U, 60 DAE LCC
Table 34 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 34 DAE 4U, 60 LCC part numbers
Part number label
location
(Figure 46) Part number
303-171-000B
Description (see note)
Fan control module
49).
Description (see note)
Link Control Card
FRU

Part number (P/N) label
VNX-000671
FRU

CRU

CRU

