Data Mover enclosure

Data Mover enclosure
Front view
18 EMC VNX7500 Parts Location Guide

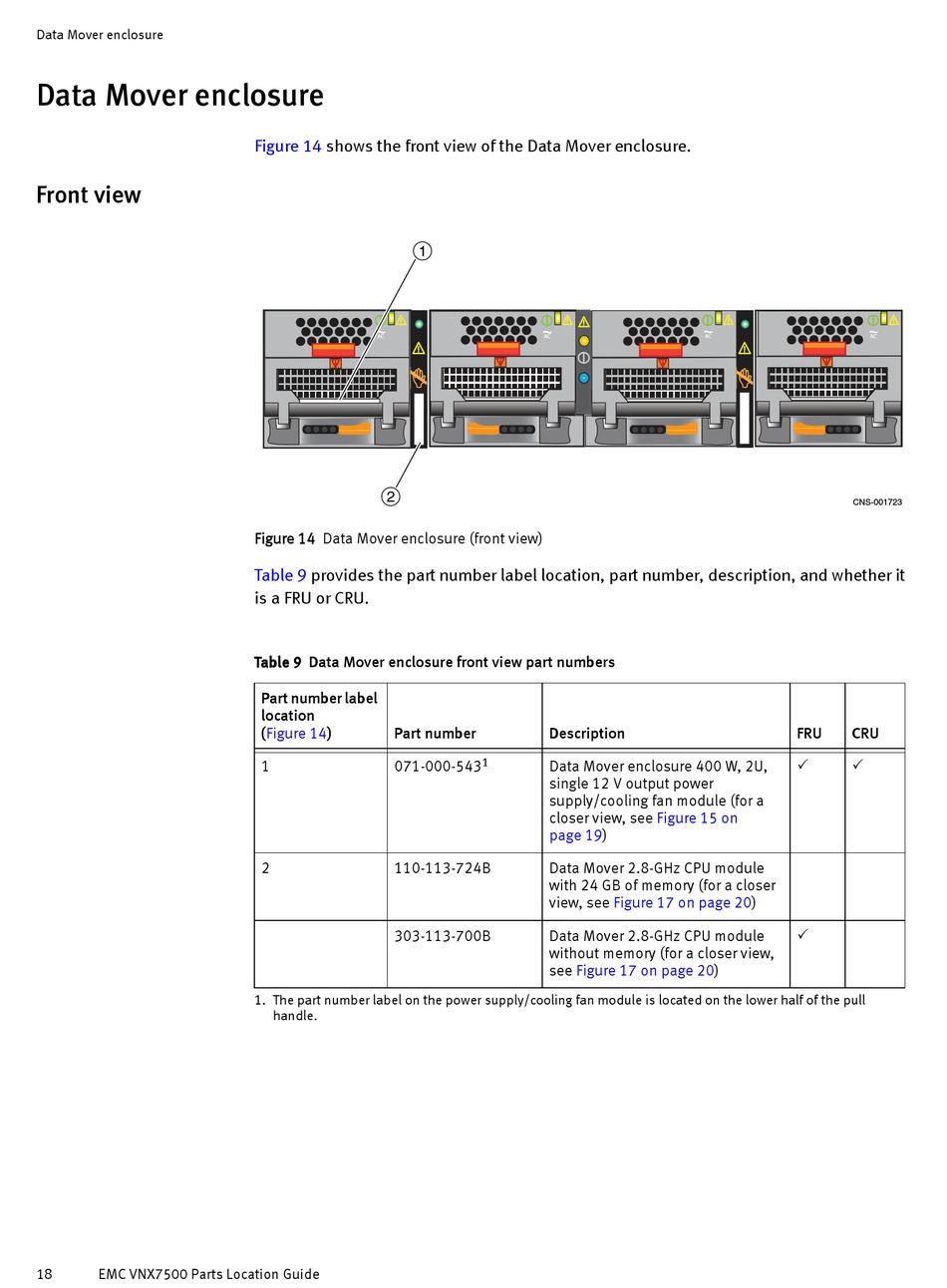

Figure 14 shows the front view of the Data Mover enclosure.
1
AC
2
Figure 14 Data Mover enclosure (front view)
Table 9 provides the part number label location, part number, description, and whether it
is a FRU or CRU.
Table 9 Data Mover enclosure front view part numbers
Part number label
location
(Figure 14) Part number
1 071-000-543
2 110-113-724B
303-113-700B
1. The part number label on the power supply/cooling fan module is located on the lower half of the pull
handle.
AC
Description
1
Data Mover enclosure 400 W, 2U,
single 12 V output power
supply/cooling fan module (for a
closer view, see Figure 15 on
page 19)
Data Mover 2.8-GHz CPU module
with 24 GB of memory (for a closer
view, see Figure 17 on page
Data Mover 2.8-GHz CPU module
without memory (for a closer view,
see Figure 17 on page
AC AC
CNS-001723
FRU CRU
 
20)

20)
