Disk-array enclosure (DAE)
3U, 15 (3.5-inch) disk drive DAE
44 EMC VNX7500 Parts Location Guide

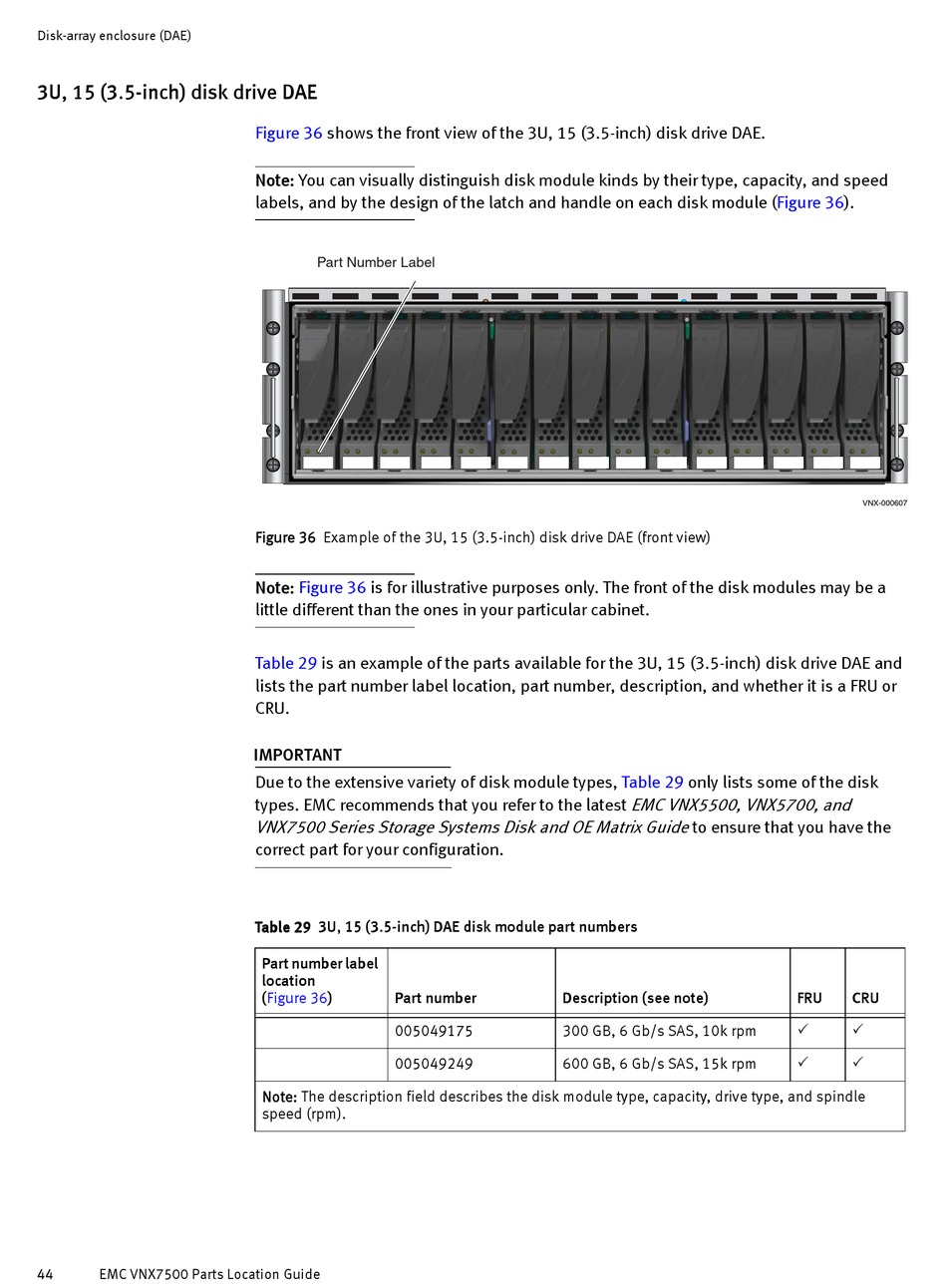

Figure 36 shows the front view of the 3U, 15 (3.5-inch) disk drive DAE.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module
Part Number Label
Figure 36 Example of the 3U, 15 (3.5-inch) disk drive DAE (front view)
Note: Figure 36 is for illustrative purposes only. The front of the disk modules may be a
little different than the ones in your particular cabinet.
Table 29 is an example of the parts available for the 3U, 15 (3.5-inch) disk drive DAE and
lists the part number label location, part number, description, and whether it is a FRU or
CRU.
IMPORTANT
Due to the extensive variety of disk module types,
types. EMC recommends that you refer to the latest
VNX7500 Series Storage Systems Disk and OE Matrix Guide
correct part for your configuration.
Table 29 3U, 15 (3.5-inch) DAE disk module part numbers
Part number label
location
(Figure 36) Part number
005049175
005049249
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
Table 29 only lists some of the disk
EMC VNX5500, VNX5700, and
to ensure that you have the
Description (see note)
300 GB, 6 Gb/s SAS, 10k rpm
600 GB, 6 Gb/s SAS, 15k rpm
(Figure 36).
VNX-000607
FRU CRU
 
 
