Storage processor enclosure (SPE)

SP Power supply/cooling fan module

12 EMC VNX7500 Parts Location Guide
Table 3 provides the part number label location, part number, description, and whether it
is a FRU or CRU.

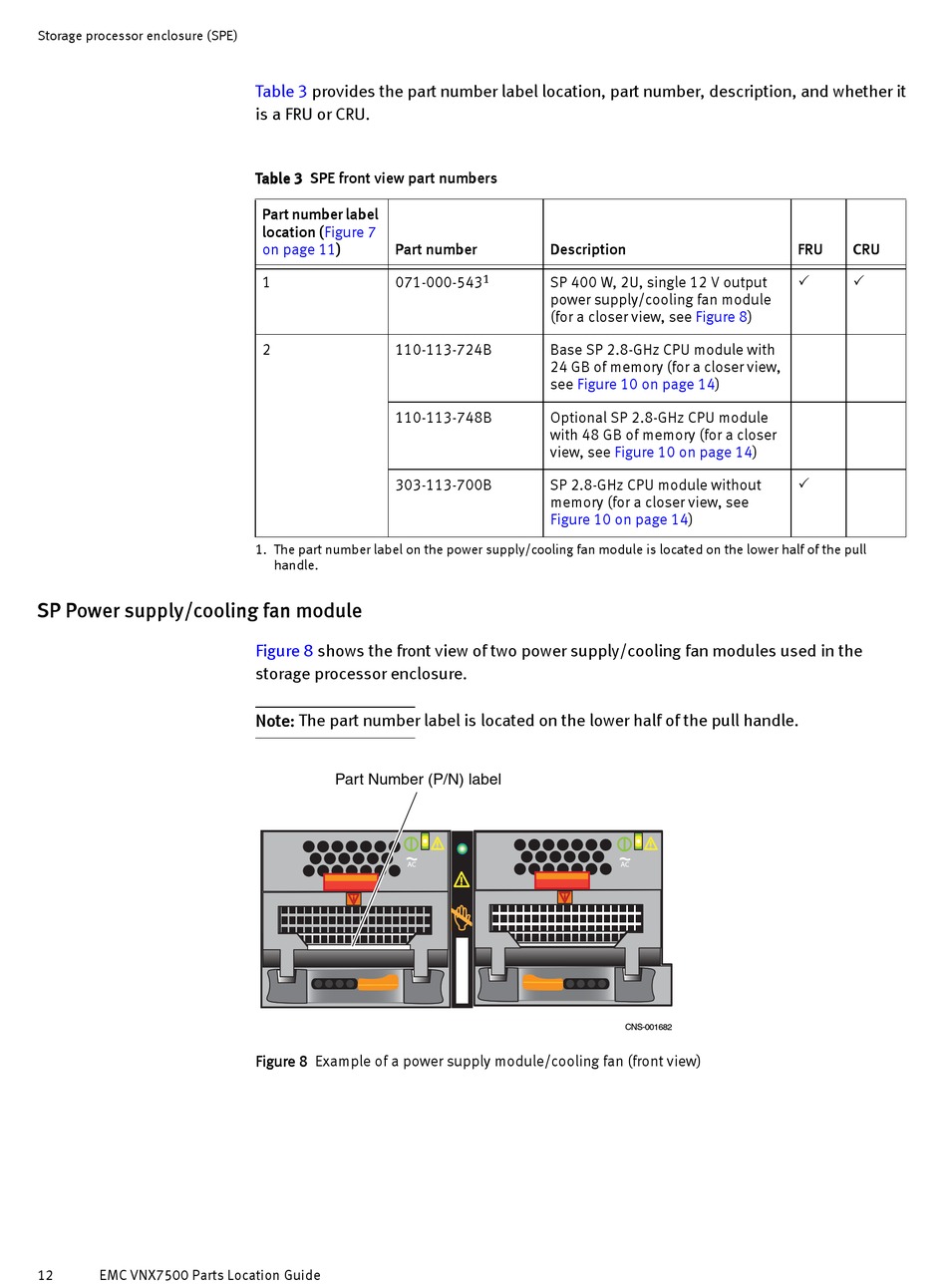

Table 3 SPE front view part numbers
Part number label
location (Figure 7
on page 11) Part number
1 071-000-543
2 110-113-724B
110-113-748B
303-113-700B
1. The part number label on the power supply/cooling fan module is located on the lower half of the pull
handle.
Figure 8 shows the front view of two power supply/cooling fan modules used in the
storage processor enclosure.
Note: The part number label is located on the lower half of the pull handle.
Part Number (P/N) label
AC
Figure 8 Example of a power supply module/cooling fan (front view)
Description
1
SP 400 W, 2U, single 12 V output
power supply/cooling fan module
(for a closer view, see
Base SP 2.8-GHz CPU module with
24 GB of memory (for a closer view,
see Figure 10 on page
Optional SP 2.8-GHz CPU module
with 48 GB of memory (for a closer
view, see Figure 10 on page
SP 2.8-GHz CPU module without
memory (for a closer view, see
Figure 10 on page
AC
CNS-001682
FRU

Figure 8)
14)
14)

14)
CRU

