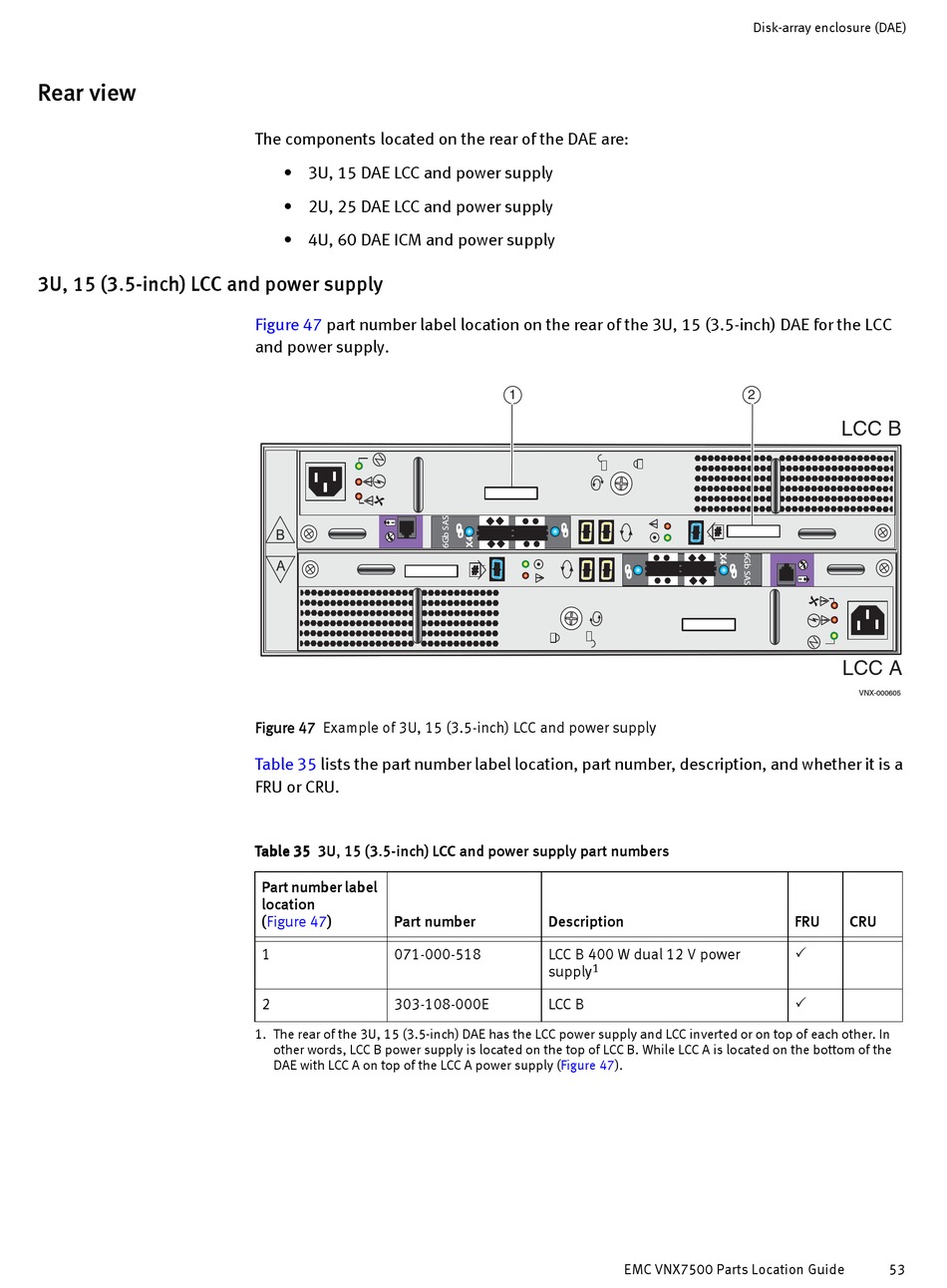

Rear view
3U, 15 (3.5-inch) LCC and power supply
The components located on the rear of the DAE are:
• 3U, 15 DAE LCC and power supply
• 2U, 25 DAE LCC and power supply
• 4U, 60 DAE ICM and power supply
Figure 47 part number label location on the rear of the 3U, 15 (3.5-inch) DAE for the LCC
and power supply.
B
A
Figure 47 Example of 3U, 15 (3.5-inch) LCC and power supply
Table 35 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 35 3U, 15 (3.5-inch) LCC and power supply part numbers
Part number label
location
(Figure 47) Part number
1 071-000-518
2 303-108-000E
1. The rear of the 3U, 15 (3.5-inch) DAE has the LCC power supply and LCC inverted or on top of each other. In
other words, LCC B power supply is located on the top of LCC B. While LCC A is located on the bottom of the
DAE with LCC A on top of the LCC A power supply
1
Description
LCC B 400 W dual 12 V power
1
supply
LCC B
(Figure 47).
EMC VNX7500 Parts Location Guide
Disk-array enclosure (DAE)
2
LCC B
#
LCC A
VNX-000605
FRU CRU


