EMC VNX Series Parts Location Manual page 50

Disk-array enclosure (DAE)
Disk drives, LCC, and fan control module locations
50 EMC VNX7500 Parts Location Guide

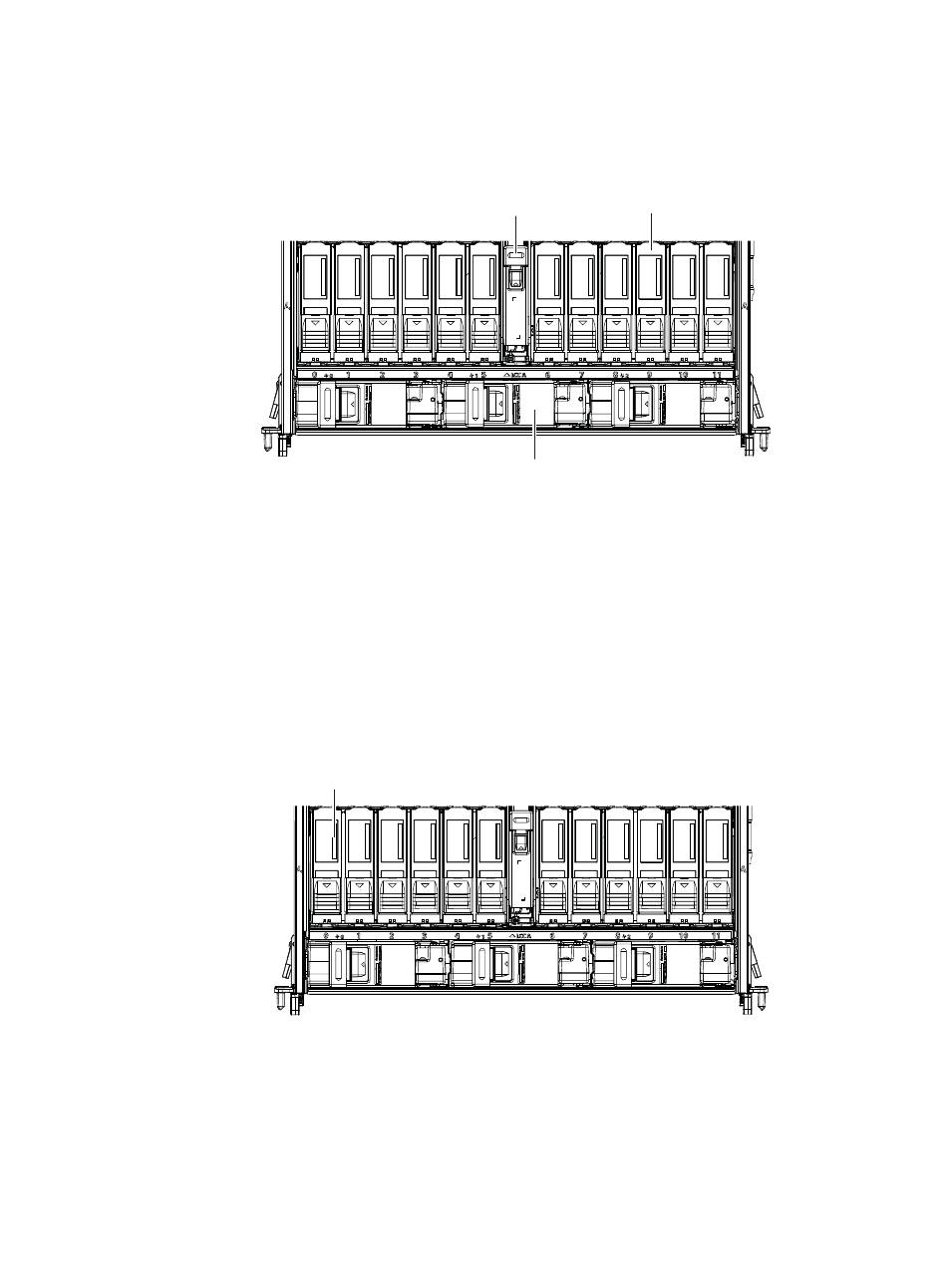

Figure 43 shows a top-down cut-away interior view of the 4U, 60 DAE. Notice the location
of the disk drives, fans (fan control modules), and LCC A.
Figure 43 4U, 60 DAE top-down cut-away of disk drives, fans (fan control modules), and LCC A
(interior view)
Disk drive
To access the disk drives, first slide out the 40U, 60 DAE from the rack. Then, push the top
cover towards the rear of the chassis. The disk drives are located on either sides of the
LCCs in the DAE (Figure 42 on page
Figure 44 shows the location of the 4U, 60 DAE disk drive part number label.
Part number (P/N) label
Figure 44 Example of the 4U, 60 DAE disk drive
disk
LCC A
fan
(cooling module)
49).
CL4735
VNX-000672
