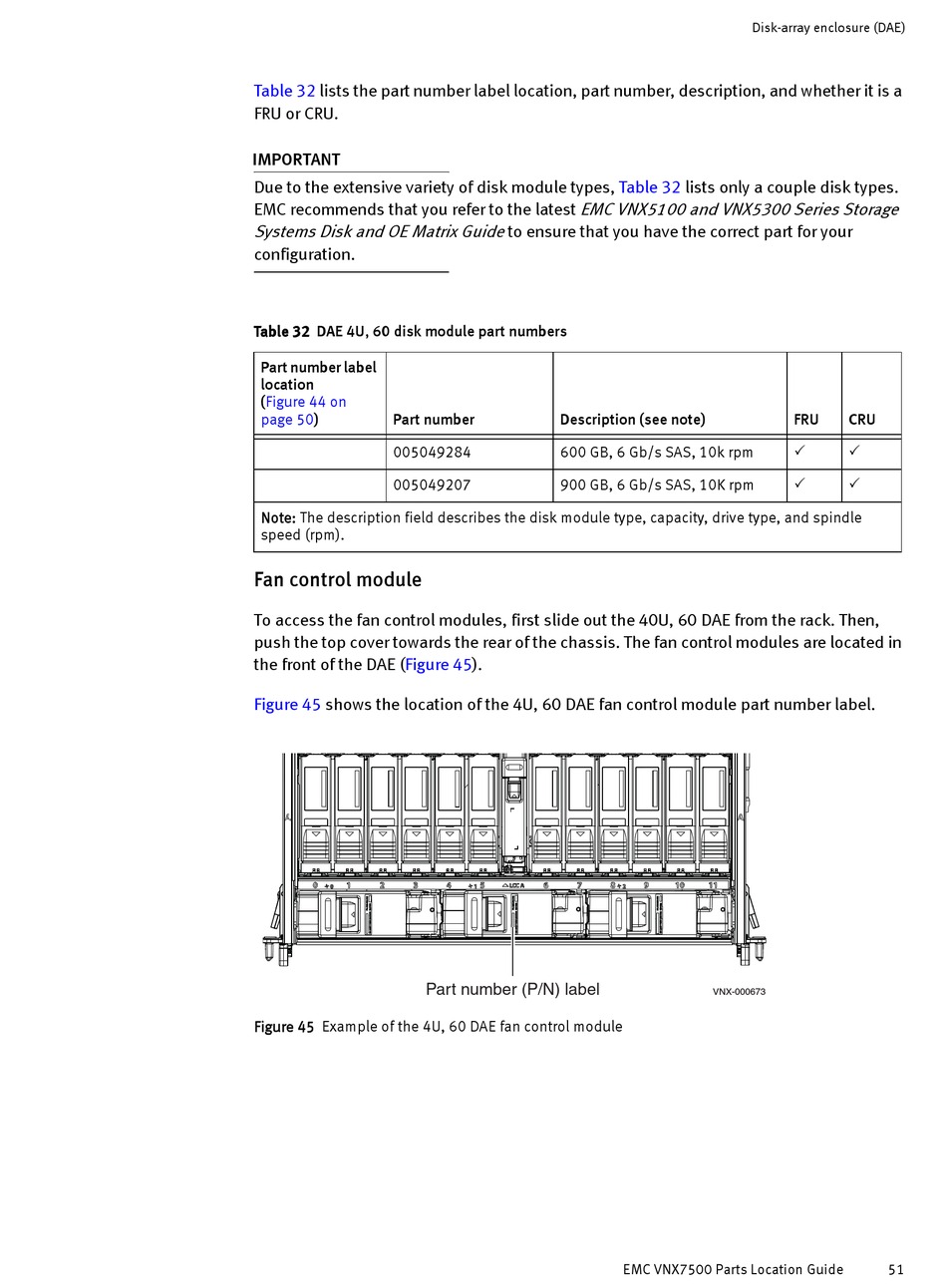

EMC VNX Series Parts Location Manual page 51

Table 32 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
IMPORTANT
Due to the extensive variety of disk module types,
EMC recommends that you refer to the latest
Systems Disk and OE Matrix Guide
configuration.
Table 32 DAE 4U, 60 disk module part numbers
Part number label
location
(Figure 44 on
page 50) Part number
005049284
005049207
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
Fan control module
To access the fan control modules, first slide out the 40U, 60 DAE from the rack. Then,
push the top cover towards the rear of the chassis. The fan control modules are located in
the front of the DAE (Figure
Figure 45 shows the location of the 4U, 60 DAE fan control module part number label.
Part number (P/N) label
Figure 45 Example of the 4U, 60 DAE fan control module
Table 32
EMC VNX5100 and VNX5300 Series Storage
to ensure that you have the correct part for your
Description (see note)
600 GB, 6 Gb/s SAS, 10k rpm
900 GB, 6 Gb/s SAS, 10K rpm
45).
EMC VNX7500 Parts Location Guide
Disk-array enclosure (DAE)
lists only a couple disk types.
FRU CRU
 
 
VNX-000673
51
