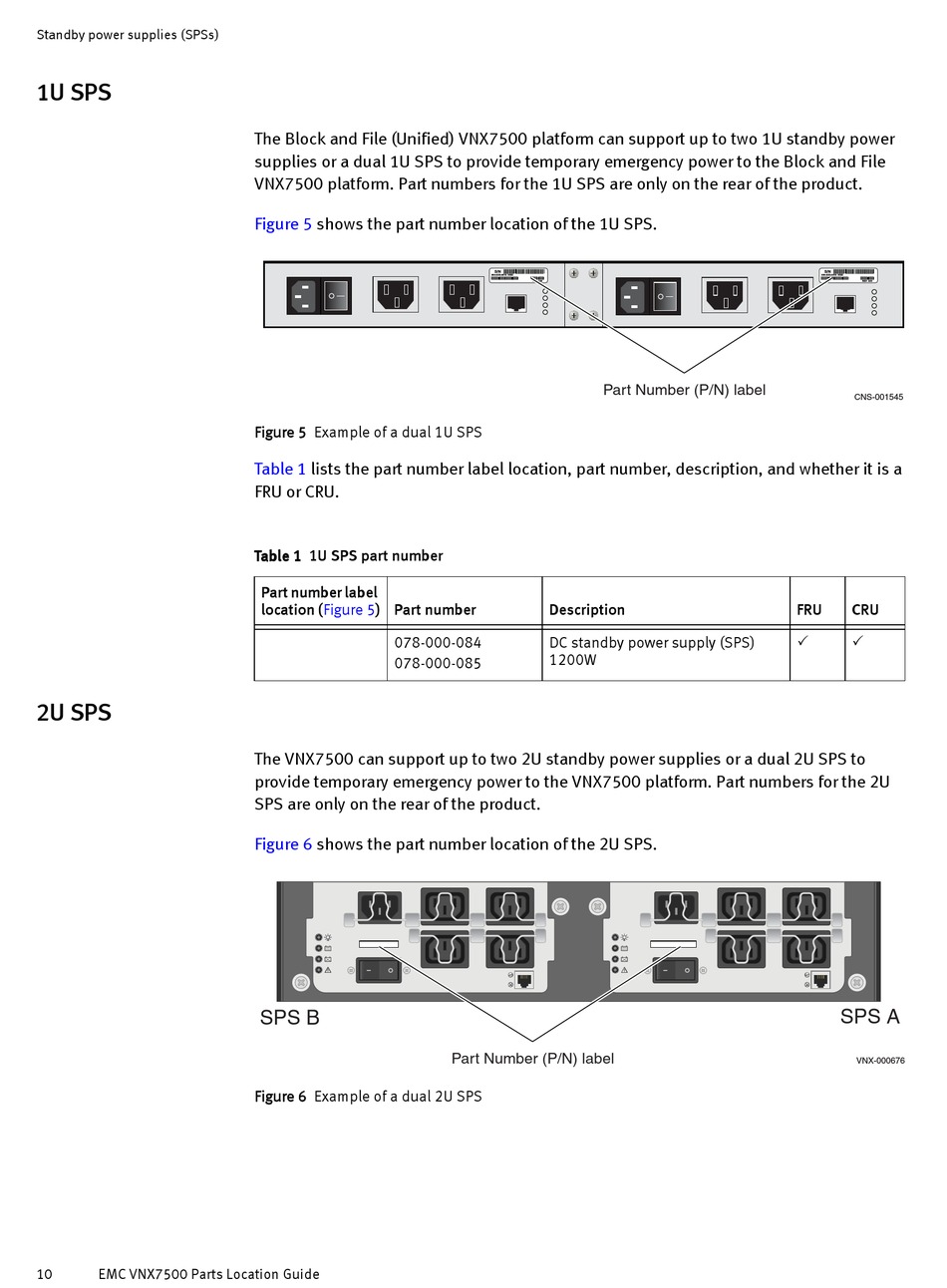

EMC VNX Series Parts Location Manual page 10

Standby power supplies (SPSs)
1U SPS
2U SPS
10 EMC VNX7500 Parts Location Guide
The Block and File (Unified) VNX7500 platform can support up to two 1U standby power
supplies or a dual 1U SPS to provide temporary emergency power to the Block and File
VNX7500 platform. Part numbers for the 1U SPS are only on the rear of the product.
Figure 5 shows the part number location of the 1U SPS.
Figure 5 Example of a dual 1U SPS
Table 1 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
Table 1 1U SPS part number
Part number label
location (Figure 5) Part number
078-000-084
078-000-085
The VNX7500 can support up to two 2U standby power supplies or a dual 2U SPS to
provide temporary emergency power to the VNX7500 platform. Part numbers for the 2U
SPS are only on the rear of the product.
Figure 6 shows the part number location of the 2U SPS.
SPS B
Figure 6 Example of a dual 2U SPS
S/N
900-XXX-0014 0082
REV A00
Part Number (P/N) label
Description
DC standby power supply (SPS)
1200W
Part Number (P/N) label
S/N
900-XXX-0014 0082
REV A00
CNS-001545
FRU CRU
 
SPS A
VNX-000676
