Four-port 8-Gb/s Fibre Channel (FC) I/O module
The following sections describe these I/O modules and the part numbers. Refer to these
when determining which part number you need for either the SP or Data Mover that the
I/O module goes in.

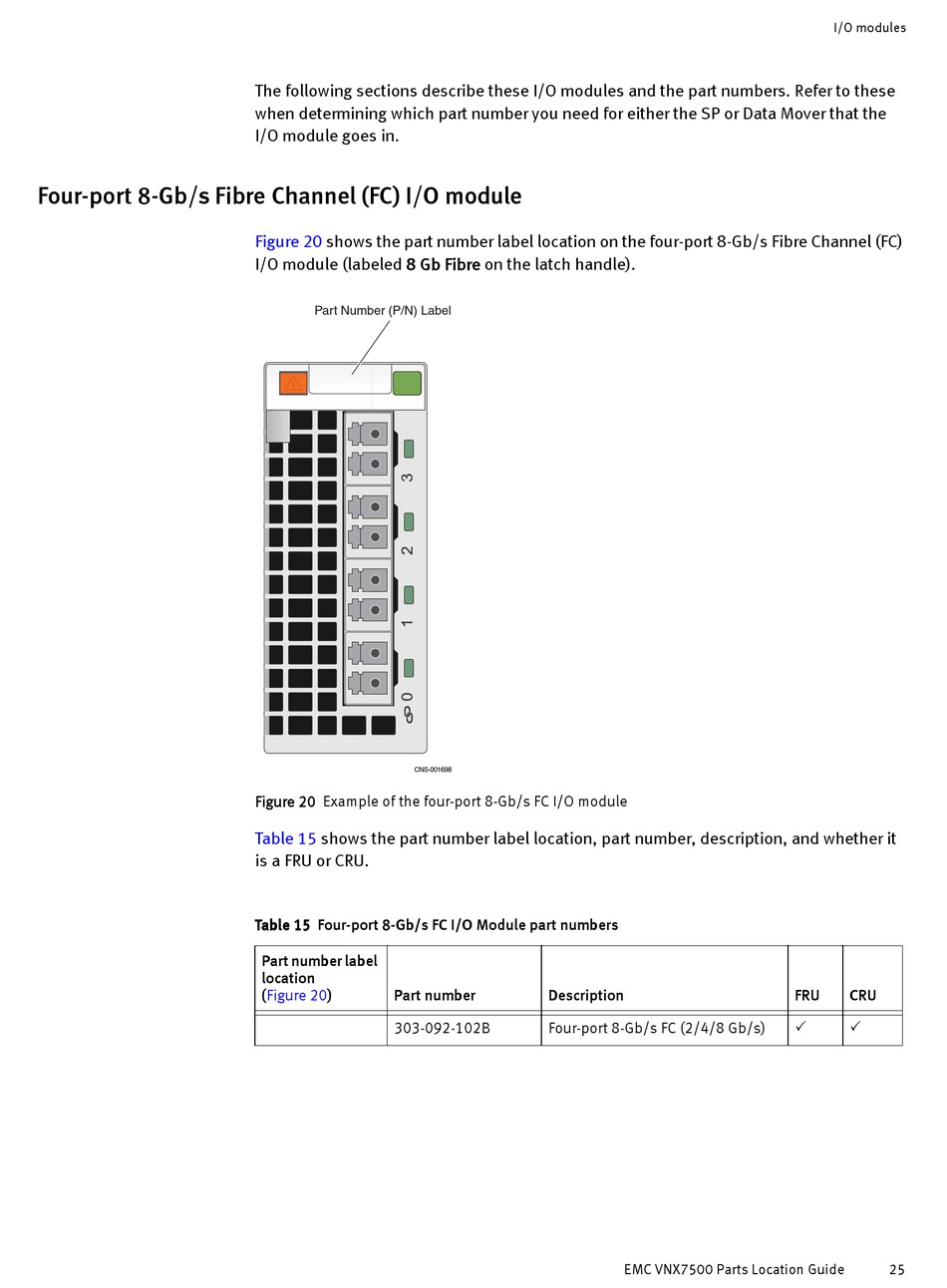

Figure 20 shows the part number label location on the four-port 8-Gb/s Fibre Channel (FC)
I/O module (labeled 8 Gb Fibre on the latch handle).
Part Number (P/N) Label
CNS-001698
Figure 20 Example of the four-port 8-Gb/s FC I/O module
Table 15 shows the part number label location, part number, description, and whether it
is a FRU or CRU.
Table 15 Four-port 8-Gb/s FC I/O Module part numbers
Part number label
location
(Figure 20) Part number
303-092-102B
Description
Four-port 8-Gb/s FC (2/4/8 Gb/s)
EMC VNX7500 Parts Location Guide
I/O modules
FRU CRU
 
25
